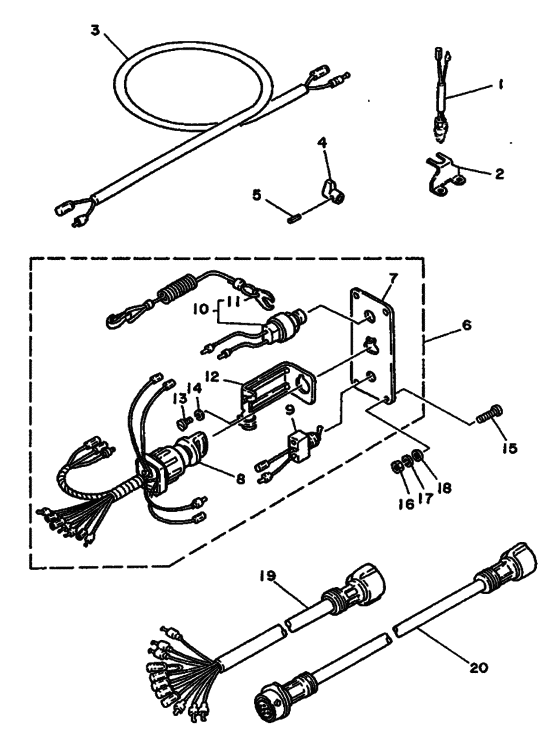

Optional parts 2 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F5-82540-00-00 Neutral Switch Assy |
6F5-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
1
|
1
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
2
|
2
6H4-82554-00-00
Stay, Neutral Switch
|
6H4-82554-00-00 |
— | ||
|
3
|
3
6H4-82553-00-00 Extension, Wire Lead |
6H4-82553-00-00 |
from US $19.55 |
||
|
4
|
4
6H4-44173-00-00 Lever, Shift Control |
6H4-44173-00-00 |
from US $4.99 |
||
| replacement | |||||
|
4
|
4
6H4-44173-01-00 Lever, Shift Control |
6H4-44173-01-00 |
from US $4.99 |
||
|
5
|
5
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.36 |
||
|
6
|
6
689-82570-13-00
Panel Switch Assy
|
689-82570-13-00 |
— | ||
| replacement | |||||
|
6
|
6
689-82570-14-00 Panel Switch Assy |
689-82570-14-00 |
US $286.85 |
||
|
7
|
7
689-82571-01-00 Panel, Switch |
689-82571-01-00 |
US $28.64 |
||
| replacement | |||||
|
7
|
7
689-82571-02-00 Panel, Switch |
689-82571-02-00 |
US $28.64 |
||
|
8
|
8
688-82510-11-00 Main Switch Assy |
688-82510-11-00 |
US $125.86 |
||
| replacement | |||||
|
8
|
8
688-82510-13-00 Main Switch Assy |
688-82510-13-00 |
from US $103.69 |
||
|
9
|
9
688-82574-00-00 Switch, Choke |
688-82574-00-00 |
US $51.40 |
||
| replacement | |||||
|
9
|
9
6K1-82574-00-00 Switch, Choke |
6K1-82574-00-00 |
from US $51.40 |
||
|
10
|
10
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
10
|
10
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
11
|
11
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
12
|
12
663-82581-01-00 Stay, Cord Clamp |
663-82581-01-00 |
from US $14.45 |
||
|
13
|
13
98303-04008-00 Screw, Cylinder Head |
98303-04008-00 |
from US $1.21 |
||
| replacement | |||||
|
13
|
13
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
98903-05025-00 Screw, Bind |
98903-05025-00 |
from US $1.21 |
||
|
16
|
16
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
17
|
17
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
19
|
19
688-82586-21-00 Extension, Wire Harness (49M |
688-82586-21-00 |
from US $136.08 |
||
|
20
|
20
688-82586-11-00 Extension, Wire Harness (2.0M)UR |
688-82586-11-00 |
US $115.36 |
||
| replacement | |||||
|
20
|
20
688-82586-12-00 Extension, Wire HarnessUR |
688-82586-12-00 |
US $128.18 |
||
|
20
|
20
688-82586-31-00 Extension, Wire Harness (3.0M)UR |
688-82586-31-00 |
from US $174.15 |
||
