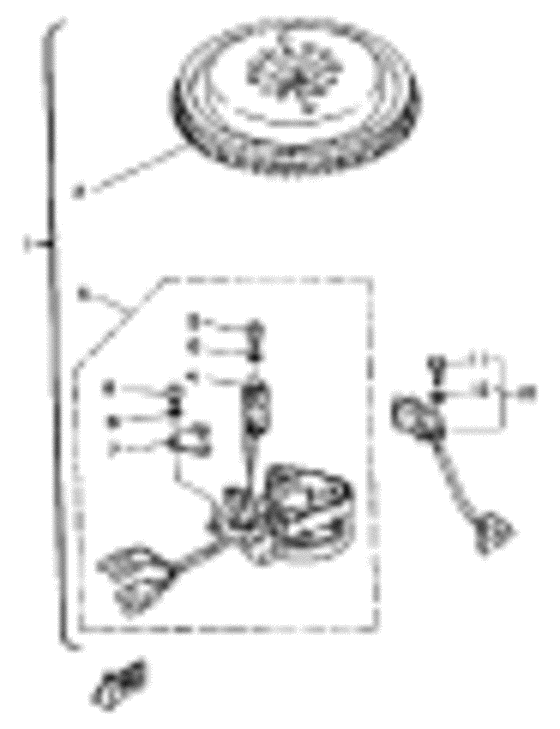

Cdi magneto Diagram Yamaha 40 ETL/UL
- Year
- 1986
- Model
- 40
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
UNA-VAILA-BL-EI
Carburetor Assembly
|
UNA-VAILA-BL-EI |
— | ||
|
2
|
2
6H4-85550-A0-00
Rotor Assembly
|
6H4-85550-A0-00 |
— | ||
|
3
|
3
6H4-85510-F0-00
Stator Assembly
|
6H4-85510-F0-00 |
— | ||
| replacement | |||||
|
3
|
3
6H4-85510-F9-00
Stator Assy
|
6H4-85510-F9-00 |
— | ||
|
4
|
4
6H4-85520-00-00
Coil, Charge
|
6H4-85520-00-00 |
— | ||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
6H4-85548-00-00 Holder |
6H4-85548-00-00 |
from US $11.33 |
||
|
8
|
8
97802-05008-00 Screw, Pan Head |
97802-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
8
|
8
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
8
|
8
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6H4-81303-A0-00
Lighting Coil Assembly
|
6H4-81303-A0-00 |
— | ||
|
11
|
11
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
