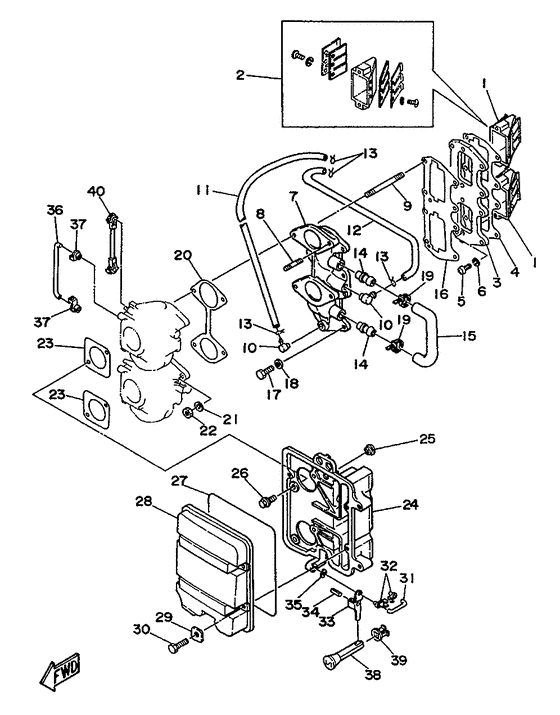

Intake Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1995
- Model
- 40Q
- Model code
- 6R6
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6A0-13610-00-00
Reed Valve Assembly
|
6A0-13610-00-00 |
— | ||
|
02
|
02
676-W0004-00-00
Reed Set
|
676-W0004-00-00 |
— | ||
|
03
|
03
676-13642-00-94
Manifold 2
|
676-13642-00-94 |
— | ||
|
04
|
04
676-13646-A0-00 Joint, Tubulure 2 |
676-13646-A0-00 |
from US $10.24 |
||
|
05
|
05
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
05
|
05
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
06
|
06
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
07
|
07
6E9-13641-00-94
Manifold, Intake 1
|
6E9-13641-00-94 |
— | ||
|
08
|
08
90116-06M30-00 Bolt, Stud |
90116-06M30-00 |
from US $1.98 |
||
|
09
|
09
90116-06M15-00 Bolt, Stud |
90116-06M15-00 |
from US $4.25 |
||
|
10
|
10
650-11370-00-00
Check Valve Assy
|
650-11370-00-00 |
— | ||
| replacement | |||||
|
10
|
10
650-11370-01-00 Check Valve Assy |
650-11370-01-00 |
from US $14.48 |
||
|
11
|
11
90445-07M45-00 Hose (L340) |
90445-07M45-00 |
US $4.25 |
||
| replacement | |||||
|
11
|
11
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.04 |
||
|
12
|
12
904-4507M-44-00
Hose (L250)
|
904-4507M-44-00 |
— | ||
| replacement | |||||
|
12
|
12
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.04 |
||
|
13
|
13
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
14
|
14
6E9-14485-00-00
Pipe, Joint
|
6E9-14485-00-00 |
— | ||
|
15
|
15
6E9-24321-00-00
Pipe 10
|
6E9-24321-00-00 |
— | ||
|
16
|
16
676-13646-A0-00 Joint, Tubulure 2 |
676-13646-A0-00 |
from US $10.24 |
||
|
17
|
17
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
90465-12M11-00
Clamp
|
90465-12M11-00 |
— | ||
|
20
|
20
6E9-14198-A0-00 Joint |
6E9-14198-A0-00 |
from US $9 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
23
|
23
6E9-14483-A0-00
Joint
|
6E9-14483-A0-00 |
— | ||
|
24
|
24
6E9-14417-70-94
Cover 1
|
6E9-14417-70-94 |
— | ||
|
25
|
25
90480-12M25-00 Grommet40qm/40qem |
90480-12M25-00 |
from US $2.41 |
||
|
26
|
26
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
27
|
27
6E9-14476-00-00 Seal |
6E9-14476-00-00 |
US $5.14 |
||
|
28
|
28
6E9-14418-00-00
Cover 2
|
6E9-14418-00-00 |
— | ||
|
29
|
29
90209-06M06-00
Washer
|
90209-06M06-00 |
— | ||
|
30
|
30
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
30
|
30
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
31
|
31
6E9-41256-00-00
Rod, Choke 1
|
6E9-41256-00-00 |
— | ||
|
32
|
32
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.76 |
||
|
33
|
33
6E9-41252-00-00
Lever, Choke 1
|
6E9-41252-00-00 |
— | ||
|
34
|
34
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
35
|
35
90206-05005-00 Washer, Wave |
90206-05005-00 |
from US $2.55 |
||
|
36
|
36
663-41257-02-00 Rod, Choke 2 |
663-41257-02-00 |
from US $4.39 |
||
|
37
|
37
661-04126-20-20
New Genuine Part
|
661-04126-20-20 |
— | ||
|
38
|
38
682-41271-00-00 Knob, Choke |
682-41271-00-00 |
US $4.96 |
||
| replacement | |||||
|
38
|
38
682-41271-01-00 Knob, Choke |
682-41271-01-00 |
from US $4.04 |
||
|
39
|
39
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.04 |
||
|
40
|
40
697-41217-01-00 Rod, Accel. Lever |
697-41217-01-00 |
from US $4.38 |
||
