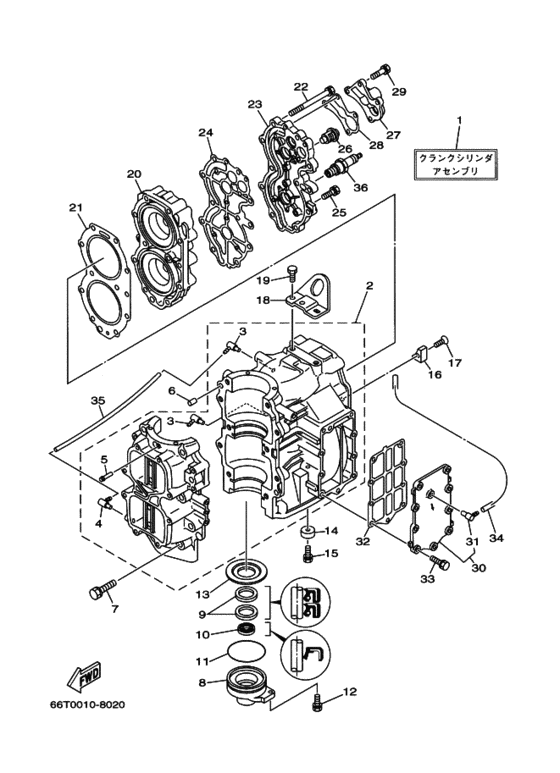

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹ-ｽ Diagram Yamaha 40 M(W/T)HS/L
- Year
- 2000
- Model
- 40X
- Model code
- 66T
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66T-W0090-00-4D Crank Cylinder Assy参照; 適用号機はパーツニユースをご参照ください ＊１ |
66T-W0090-00-4D |
US $3,603.60 |
||
| replacements | |||||
|
1
|
1
66T-W0090-02-1S Crank Cylinder Assy参照; 適用号機はパーツニユースをご参照ください ＊１ |
66T-W0090-02-1S |
US $3,603.60 |
||
|
1
|
1
66T-W0090-01-4D Crank Cylinder Assy参照; 適用号機はパーツニユースをご参照ください ＊１ |
66T-W0090-01-4D |
US $3,603.60 |
||
|
1
|
1
66T-W0090-01-4D Crank Cylinder Assy参照; 適用号機はパーツニユースをご参照ください ＊１ |
66T-W0090-01-4D |
US $3,603.60 |
||
|
2
|
2
66T-15100-00-94 Crankcase Assy参照; 適用号機はパーツニユースをご参照ください |
66T-15100-00-94 |
US $1,782 |
||
| replacement | |||||
|
2
|
2
66T-15100-02-00 Crankcase Assy参照; 適用号機はパーツニユースをご参照ください |
66T-15100-02-00 |
US $1,782 |
||
|
2
|
2
66T-15100-01-94 Crankcase Assy参照; 適用号機はパーツニユースをご参照ください |
66T-15100-01-94 |
US $1,782 |
||
|
3
|
3
6E5-13552-00-00 Nozzle．ノズル; |
6E5-13552-00-00 |
US $5.95 |
||
| replacement | |||||
|
3
|
3
6E5-13552-01-00 Nozzle．ノズル; |
6E5-13552-01-00 |
from US $3.04 |
||
|
4
|
4
6E5-13552-00-00 Nozzle．ノズル; |
6E5-13552-00-00 |
US $5.95 |
||
| replacement | |||||
|
4
|
4
6E5-13552-01-00 Nozzle．ノズル; |
6E5-13552-01-00 |
from US $3.04 |
||
|
5
|
5
624-14485-00-00 Pipe, Joint．パイプ，ジヨイント; |
624-14485-00-00 |
from US $5.24 |
||
|
6
|
6
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.70 |
||
|
7
|
7
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $3.38 |
||
|
8
|
8
66T-15396-00-00 Housing, Oil Seal参照; 適用号機はパーツニユースをご参照ください |
66T-15396-00-00 |
US $33.15 |
||
| replacement | |||||
|
8
|
8
66T-15396-01-CA Housing, Oil Seal参照; 適用号機はパーツニユースをご参照ください |
66T-15396-01-CA |
from US $33.15 |
||
|
8
|
8
66T-15396-01-94 Housing, Oil Seal参照; 適用号機はパーツニユースをご参照ください |
66T-15396-01-94 |
US $33.15 |
||
| replacement | |||||
|
8
|
8
66T-15396-01-CA Housing, Oil Seal参照; 適用号機はパーツニユースをご参照ください |
66T-15396-01-CA |
from US $33.15 |
||
|
9
|
9
93102-30M53-00 Oil Seal参照; 適用号機はパーツニユースをご参照ください |
93102-30M53-00 |
from US $6.40 |
||
| replacement | |||||
|
9
|
9
931-0230M-56-00 Oil Seal参照; 適用号機はパーツニユースをご参照ください |
931-0230M-56-00 |
from US $13.48 |
||
|
9
|
9
931-0230M-56-00 Oil Seal参照; 適用号機はパーツニユースをご参照ください |
931-0230M-56-00 |
from US $13.48 |
||
|
10
|
10
931-01160-01-00 Oil Seal参照; 適用号機はパーツニユースをご参照ください |
931-01160-01-00 |
from US $9.35 |
||
|
10
|
10
931-0416M-01-00
Oil Seal
オイルシ−ル; 参照; 適用号機はパーツニユースをご参照ください |
931-0416M-01-00 |
— | ||
| replacement | |||||
|
10
|
10
931-0116M-36-00 Oil Sealオイルシ−ル; 参照; 適用号機はパーツニユースをご参照ください |
931-0116M-36-00 |
from US $4.72 |
||
|
11
|
11
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $3.72 |
||
|
12
|
12
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
12
|
12
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
12
|
12
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
13
|
13
902-0934M-27-00 Washer |
902-0934M-27-00 |
US $6.94 |
||
|
14
|
14
676-45251-00-00 Anode |
676-45251-00-00 |
from US $9.09 |
||
|
15
|
15
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
15
|
15
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
15
|
15
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
16
|
16
676-11325-00-00 Anode |
676-11325-00-00 |
from US $8.93 |
||
|
17
|
17
90141-06M00-00 Screw, Countersunk |
90141-06M00-00 |
US $3.12 |
||
| replacement | |||||
|
17
|
17
90152-06M01-00 Screw, Countersunk |
90152-06M01-00 |
from US $2.69 |
||
|
18
|
18
66T-11119-00-00 Hanger, Engine |
66T-11119-00-00 |
US $16.01 |
||
|
19
|
19
97013-08020-00 Boltボルト; |
97013-08020-00 |
from US $1.64 |
||
| replacement | |||||
|
19
|
19
97080-08020-00 Bolt(6Td)ボルト; |
97080-08020-00 |
from US $4.05 |
||
|
20
|
20
66T-11111-00-94 Head, Cylinder 1参照; 適用号機はパーツニユースをご参照ください |
66T-11111-00-94 |
US $313.62 |
||
| replacement | |||||
|
20
|
20
66T-11111-01-1S Head, Cylinder 1参照; 適用号機はパーツニユースをご参照ください |
66T-11111-01-1S |
from US $189.86 |
||
|
20
|
20
66T-11111-01-94 Head, Cylinder 1参照; 適用号機はパーツニユースをご参照ください |
66T-11111-01-94 |
US $313.62 |
||
| replacement | |||||
|
20
|
20
66T-11111-01-1S Head, Cylinder 1参照; 適用号機はパーツニユースをご参照ください |
66T-11111-01-1S |
from US $189.86 |
||
|
21
|
21
66T-11181-A0-00 Gasket, Cylinder Head 1参照; 適用号機はパーツニユースをご参照ください |
66T-11181-A0-00 |
US $51.53 |
||
| replacement | |||||
|
21
|
21
66T-11181-A3-00 Gasket, Cylinder Head 1参照; 適用号機はパーツニユースをご参照ください |
66T-11181-A3-00 |
from US $34 |
||
|
21
|
21
66T-11181-A1-00 Gasket, Cylinder Head 1参照; 適用号機はパーツニユースをご参照ください |
66T-11181-A1-00 |
US $51.53 |
||
|
22
|
22
90119-08M09-00 Bolt, With Washer |
90119-08M09-00 |
from US $5.83 |
||
|
23
|
23
66T-11191-00-9M Cover, Cylinder Head 1 |
66T-11191-00-9M |
US $55.40 |
||
|
24
|
24
66T-11193-A0-00 Gasket, Head Cover 1参照; 適用号機はパーツニユースをご参照ください |
66T-11193-A0-00 |
US $12.33 |
||
| replacement | |||||
|
24
|
24
66T-11193-A3-00 Gasket, Head Cover 1参照; 適用号機はパーツニユースをご参照ください |
66T-11193-A3-00 |
from US $12.33 |
||
|
24
|
24
66T-11193-A2-00 Gasket, Head Cover 1参照; 適用号機はパーツニユースをご参照ください |
66T-11193-A2-00 |
US $12.33 |
||
| replacement | |||||
|
24
|
24
66T-11193-A3-00 Gasket, Head Cover 1参照; 適用号機はパーツニユースをご参照ください |
66T-11193-A3-00 |
from US $12.33 |
||
|
25
|
25
97513-06525-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97513-06525-00 |
from US $1.84 |
||
|
26
|
26
6E5-12411-01-00 Thermostat |
6E5-12411-01-00 |
US $50.01 |
||
| replacement | |||||
|
26
|
26
6E5-12411-02-00 Thermostat |
6E5-12411-02-00 |
from US $41.11 |
||
|
27
|
27
676-12413-00-9M Cover, Thermostatカバ−，サ−モスタツト; |
676-12413-00-9M |
US $31.45 |
||
| replacement | |||||
|
27
|
27
676-12413-00-1S Cover, Thermostatカバ−，サ−モスタツト; |
676-12413-00-1S |
US $31.45 |
||
|
28
|
28
676-12414-A0-00 Gasket, Coverガスケツト，カバ−; |
676-12414-A0-00 |
US $6.94 |
||
| replacement | |||||
|
28
|
28
676-12414-A1-00 Gasket, Coverガスケツト，カバ−; |
676-12414-A1-00 |
from US $6.94 |
||
|
29
|
29
975-13065-35-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-13065-35-00 |
— | ||
| replacement | |||||
|
29
|
29
970-14060-35-00 Bolt, Hexagonボルト，ウイズワツシヤ; |
970-14060-35-00 |
from US $2.41 |
||
|
30
|
30
66T-41113-00-9M Outer Cover, Exhaust |
66T-41113-00-9M |
US $45.73 |
||
|
31
|
31
676-11372-00-00 Nipple, Hose．ニツプル，ホ−ス; |
676-11372-00-00 |
from US $8.42 |
||
|
32
|
32
66T-41114-A0-00 Gasket, Exhaust Outer Cover |
66T-41114-A0-00 |
from US $10.44 |
||
|
33
|
33
97513-06525-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97513-06525-00 |
from US $1.84 |
||
|
34
|
34
90445-09M75-00 Hose (L370)ホ−ス; |
90445-09M75-00 |
from US $6.52 |
||
| replacements | |||||
|
34
|
34
904-45090-F6-00 Hose (L1500)ホ−ス; |
904-45090-F6-00 |
from US $6.40 |
||
|
34
|
34
904-45092-K1-00 Hose (L420)ホ−ス; |
904-45092-K1-00 |
from US $5.06 |
||
|
35
|
35
90445-07M08-00 Hose (L220)ホ−ス; |
90445-07M08-00 |
US $4.25 |
||
| replacement | |||||
|
35
|
35
904-4507M-90-00 Hose (L390)ホ−ス; |
904-4507M-90-00 |
from US $4.04 |
||
|
36
|
36
94703-00040-00 Plug, Spark (Ngk B7Hs)プラグ，スパ−ク ; ＮＧＫ Ｂ７ＨＳ |
94703-00040-00 |
US $5.81 |
||
