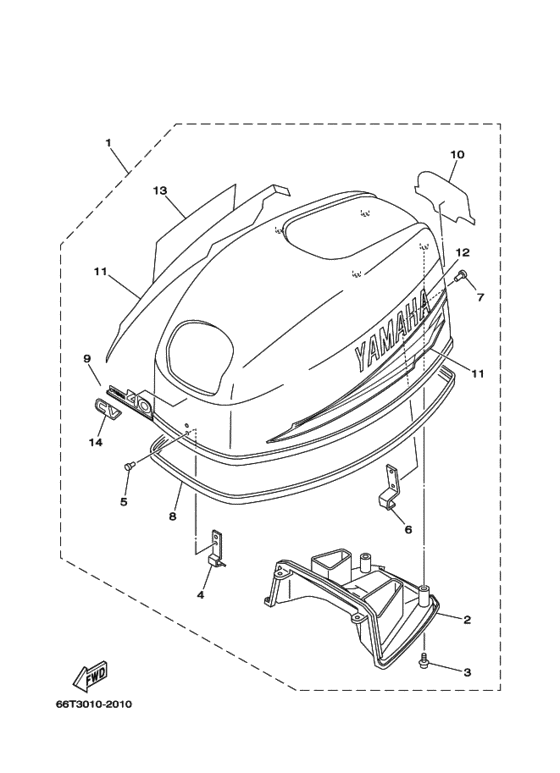

Top cowling assy Diagram Yamaha 40 M(W/T)HS/L
- Year
- 2003
- Model
- 40X
- Model code
- 66T
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66T-42610-G0-4D
Top Cowling Assy
|
66T-42610-G0-4D |
— | ||
|
2
|
2
66T-42613-01-00 Molding, Air Duct．モールデイング，エアダクト; |
66T-42613-01-00 |
US $80.69 |
||
|
3
|
3
977-80506-16-00
Screw, Tapping
．スクリユ，タツピング; |
977-80506-16-00 |
— | ||
| replacement | |||||
|
3
|
3
97780-50116-00 Screw, Tapping．スクリユ，タツピング; |
97780-50116-00 |
from US $1.42 |
||
|
4
|
4
6E0-42651-02-00 Hook．フツク; |
6E0-42651-02-00 |
from US $4.72 |
||
|
5
|
5
90266-04M04-00 Rivet．リベツト; |
90266-04M04-00 |
from US $1.84 |
||
|
6
|
6
6F5-42652-01-00 Hook．フツク; |
6F5-42652-01-00 |
from US $12.47 |
||
|
7
|
7
90266-04M01-00 Rivet．リベツト; |
90266-04M01-00 |
from US $2.83 |
||
|
8
|
8
66T-42615-02-00 Seal．シール; |
66T-42615-02-00 |
US $50.29 |
||
|
9
|
9
63D-42677-20-00 Graphic, Front．グラフイツク，フロント; |
63D-42677-20-00 |
US $15.16 |
||
| replacement | |||||
|
9
|
9
6BG-42677-00-00 Graphic, Front．グラフイツク，フロント; |
6BG-42677-00-00 |
from US $15.16 |
||
|
10
|
10
63D-42678-11-00 Graphic, Rear．グラフイツク，リヤ; |
63D-42678-11-00 |
from US $14.18 |
||
|
11
|
11
63D-W0070-10-00 Graphic Set．グラフイツクセツト; |
63D-W0070-10-00 |
US $126 |
||
|
12
|
12
63D-42681-10-00 Mark, Cowling．マーク，カウリング; |
63D-42681-10-00 |
US $13.18 |
||
|
13
|
13
63D-42682-10-00 Mark, Cowling．マーク，カウリング; |
63D-42682-10-00 |
US $13.18 |
||
|
14
|
14
61R-42683-F0-00 Mark, Cowling．マーク，カウリング; ＣＶ |
61R-42683-F0-00 |
US $13.18 |
||
