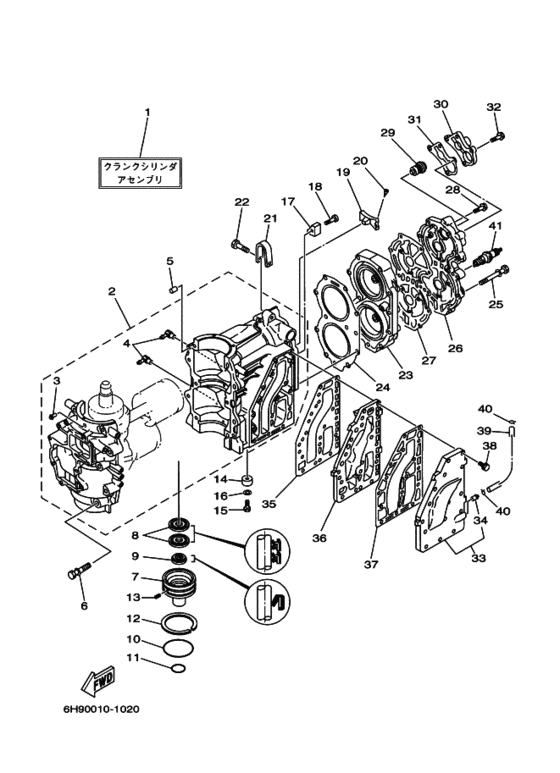

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹ-ｽ Diagram Yamaha 40 M(W/)S/L
- Year
- 2001
- Model
- K40J
- Model code
- 6H9
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F5-W0090-63-4D Crank Cylinder Assyクランクシリンダアセンブリ; ＊１ |
6F5-W0090-63-4D |
US $3,313.20 |
||
|
2
|
2
6F6-15100-00-94 Crankcase Assyクランクケ−スアセンブリ; |
6F6-15100-00-94 |
US $1,808.40 |
||
| replacement | |||||
|
2
|
2
6F6-15100-02-1S Crankcase Assyクランクケ−スアセンブリ; |
6F6-15100-02-1S |
US $1,808.40 |
||
|
3
|
3
624-14485-00-00 Pipe, Joint．パイプ，ジヨイント; |
624-14485-00-00 |
from US $5.24 |
||
|
4
|
4
650-11370-00-00
Check Valve Assy
．チエツクバルブアセンブリ; |
650-11370-00-00 |
— | ||
| replacement | |||||
|
4
|
4
650-11370-01-00 Check Valve Assy．チエツクバルブアセンブリ; |
650-11370-01-00 |
from US $14.48 |
||
|
5
|
5
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.70 |
||
|
6
|
6
901-19100-05-00
Bolt, With Washer
|
901-19100-05-00 |
— | ||
| replacement | |||||
|
6
|
6
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $3.38 |
||
|
7
|
7
6F5-15396-01-5B Housing, Oil Sealハウジング，オイルシ−ル; |
6F5-15396-01-5B |
US $37.17 |
||
|
8
|
8
93101-30M33-00 Oil Sealオイルシ−ル; |
93101-30M33-00 |
from US $5.40 |
||
|
9
|
9
931-0416M-01-00
Oil Seal
オイルシ−ル; |
931-0416M-01-00 |
— | ||
| replacement | |||||
|
9
|
9
931-0116M-36-00 Oil Sealオイルシ−ル; |
931-0116M-36-00 |
from US $4.72 |
||
|
10
|
10
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $3.72 |
||
|
11
|
11
93210-22M02-00 O-Ring |
93210-22M02-00 |
from US $4.68 |
||
|
12
|
12
93440-68M03-00 Circlip |
93440-68M03-00 |
from US $3.38 |
||
|
13
|
13
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
14
|
14
676-45251-00-00 Anode |
676-45251-00-00 |
from US $9.09 |
||
|
15
|
15
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
676-11325-00-00 Anode |
676-11325-00-00 |
from US $8.93 |
||
|
18
|
18
90141-06M00-00 Screw, Countersunk |
90141-06M00-00 |
US $3.12 |
||
| replacement | |||||
|
18
|
18
90152-06M01-00 Screw, Countersunk |
90152-06M01-00 |
from US $2.69 |
||
|
19
|
19
6F5-11325-00-00 Anode |
6F5-11325-00-00 |
US $13.18 |
||
|
20
|
20
97880-05030-00 Screw, Pan Head |
97880-05030-00 |
US $2.27 |
||
| replacement | |||||
|
20
|
20
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
21
|
21
6F5-11119-00-00 Hanger, Engineハンガ，エンジン; |
6F5-11119-00-00 |
from US $9.35 |
||
|
22
|
22
90101-08001-00 Boltボルト; |
90101-08001-00 |
from US $2.55 |
||
|
23
|
23
6F5-11111-00-94 Head, Cylinder 1ヘツド，シリンダ １; |
6F5-11111-00-94 |
US $313.62 |
||
|
24
|
24
6F5-11181-A1-00
Gasket, Cylinder Head 1
ガスケツト，シリンダヘツド １; |
6F5-11181-A1-00 |
— | ||
| replacement | |||||
|
24
|
24
6F5-11181-A2-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
6F5-11181-A2-00 |
from US $34.34 |
||
|
25
|
25
90119-08MA5-00 Bolt, With Washer |
90119-08MA5-00 |
from US $5.81 |
||
|
26
|
26
6F5-11191-00-9M Cover, Cylinder Head 1カバ−，シリンダヘツド １; |
6F5-11191-00-9M |
US $54.99 |
||
|
27
|
27
6F5-11193-A0-00 Gasket, Head Cover 1ガスケツト，ヘツドカバ− １; |
6F5-11193-A0-00 |
US $16.43 |
||
|
28
|
28
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.36 |
||
|
29
|
29
6F5-12411-02-00 Thermostat |
6F5-12411-02-00 |
US $50.01 |
||
| replacement | |||||
|
29
|
29
6F5-12411-03-00 Thermostat |
6F5-12411-03-00 |
from US $50.01 |
||
|
30
|
30
676-12413-00-9M Cover, Thermostatカバ−，サ−モスタツト; |
676-12413-00-9M |
US $31.45 |
||
| replacement | |||||
|
30
|
30
676-12413-00-1S Cover, Thermostatカバ−，サ−モスタツト; |
676-12413-00-1S |
US $31.45 |
||
|
31
|
31
676-12414-A0-00 Gasket, Coverガスケツト，カバ−; |
676-12414-A0-00 |
US $6.94 |
||
| replacement | |||||
|
31
|
31
676-12414-A1-00 Gasket, Coverガスケツト，カバ−; |
676-12414-A1-00 |
from US $6.94 |
||
|
32
|
32
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $1.36 |
||
|
33
|
33
6F5-41113-01-9M Outer Cover, Exhaustアウタカバ−，エキゾ−スト; |
6F5-41113-01-9M |
US $84.97 |
||
|
34
|
34
650-24378-00-00
Pipe, Joint 4
．パイプ，ジヨイント ４; |
650-24378-00-00 |
— | ||
| replacements | |||||
|
34
|
34
652-24461-00-00 Pipe, Joint 4．パイプ，ジヨイント ４; |
652-24461-00-00 |
from US $3.97 |
||
|
34
|
34
6EE-F4377-00-00 Pipe, Joint 2．パイプ，ジヨイント ４; |
6EE-F4377-00-00 |
from US $3.33 |
||
|
35
|
35
6F5-41112-A0-00 Gasket, Exhaust Inner Coverガスケツト，エキゾ−ストインナカバ−; |
6F5-41112-A0-00 |
from US $8.76 |
||
|
36
|
36
6F5-41111-01-9M Inner Cover, Exhaustインナカバ−，エキゾ−スト; |
6F5-41111-01-9M |
US $50.29 |
||
| replacement | |||||
|
36
|
36
6F5-41111-01-1S Inner Cover, Exhaustインナカバ−，エキゾ−スト; |
6F5-41111-01-1S |
US $50.29 |
||
|
37
|
37
6F5-41114-A0-00 Gasket, Exhaust Outer Coverガスケツト，エキゾ−ストアウタカバ−; |
6F5-41114-A0-00 |
from US $8.76 |
||
|
38
|
38
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.36 |
||
|
39
|
39
90445-09M37-00 Hose (L420)Ｌ２４０ |
90445-09M37-00 |
from US $6.52 |
||
| replacements | |||||
|
39
|
39
904-45092-K1-00 Hose (L420)Ｌ２４０ |
904-45092-K1-00 |
from US $5.06 |
||
|
39
|
39
904-45090-F6-00 Hose (L1500)Ｌ２４０ |
904-45090-F6-00 |
from US $6.40 |
||
|
40
|
40
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
41
|
41
94703-00040-00 Plug, Spark (Ngk B7Hs)プラグ，スパ−ク ; ＮＧＫ Ｂ７ＨＳ |
94703-00040-00 |
US $5.81 |
||
