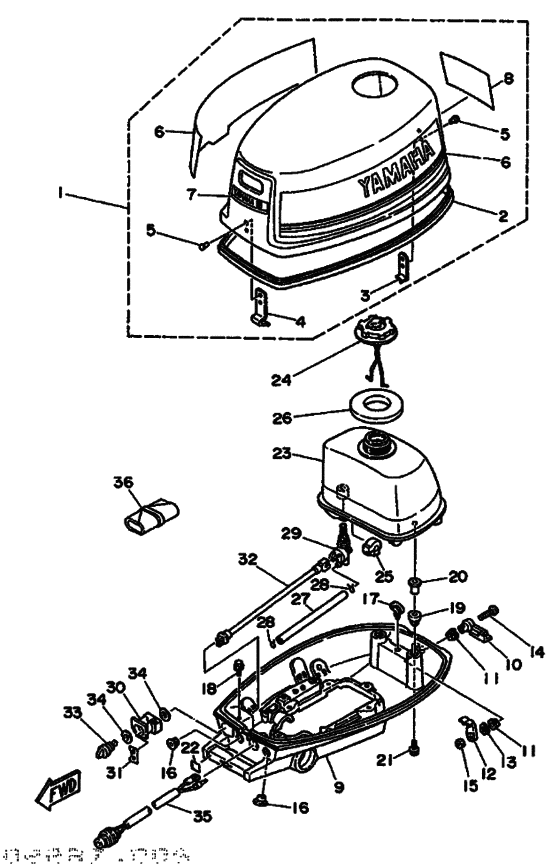

Cowling & fuel Diagram Yamaha 5 MHS/L
- Year
- 1990
- Model
- 5C(CS)
- Model code
- 6E3
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E3-42610-24-EJ
Top Cowling Assy
|
6E3-42610-24-EJ |
— | ||
| replacement | |||||
|
1
|
1
6E3-42610-25-EJ
Top Cowling Assy
|
6E3-42610-25-EJ |
— | ||
|
2
|
2
6E0-42615-00-00 Seal |
6E0-42615-00-00 |
US $41.86 |
||
|
3
|
3
6E0-42647-01-00 Holder, Clamp Band |
6E0-42647-01-00 |
from US $9.07 |
||
|
4
|
4
6E0-42651-02-00 Hook |
6E0-42651-02-00 |
from US $4.64 |
||
|
5
|
5
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
6
|
6
6E0-W0070-23-00
Graphic Set
|
6E0-W0070-23-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
6E3-42677-10-00 Graphic, Front |
6E3-42677-10-00 |
from US $7.34 |
||
|
8
|
8
6E3-42678-11-00 Graphic, Rear |
6E3-42678-11-00 |
US $9.11 |
||
|
10
|
10
6E0-42815-00-EJ
Lever, Clamp
|
6E0-42815-00-EJ |
— | ||
|
11
|
11
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
12
|
12
6E0-42816-00-00 Lever, Clamp |
6E0-42816-00-00 |
US $12.18 |
||
| replacement | |||||
|
12
|
12
6L2-42816-00-00 Lever, Clamp |
6L2-42816-00-00 |
from US $11.14 |
||
|
13
|
13
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
14
|
14
97895-06030-00 Screw, Pan Head |
97895-06030-00 |
US $1.35 |
||
| replacement | |||||
|
14
|
14
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
15
|
15
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
15
|
15
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
15
|
15
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
16
|
16
90480-14M14-00 Grommet |
90480-14M14-00 |
from US $2.55 |
||
|
17
|
17
606-42591-00-00 Holder Share Pin |
606-42591-00-00 |
from US $6.94 |
||
|
19
|
19
6E3-24182-00-00 Damper, Locating 2 |
6E3-24182-00-00 |
from US $3.68 |
||
|
20
|
20
6E0-42542-00-00 Pipe |
6E0-42542-00-00 |
from US $4.39 |
||
|
21
|
21
95895-06025-00 Bolt, Flange |
95895-06025-00 |
US $1.42 |
||
| replacement | |||||
|
21
|
21
95D95-06025-00 Bolt, Flange Deep Re |
95D95-06025-00 |
from US $1.07 |
||
|
22
|
22
6A1-42792-01-00
Mark (100:1)
|
6A1-42792-01-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
6E0-24110-00-EJ Fuel Tank Comp |
6E0-24110-00-EJ |
US $275.37 |
||
| replacements | |||||
|
23
|
23
6E0-24110-01-4D
Fuel Tank Comp
|
6E0-24110-01-4D |
— | ||
|
23
|
23
6E0-24110-01-EJ
Fuel Tank C0Mp
|
6E0-24110-01-EJ |
— | ||
|
24
|
24
6E0-24610-02-00 Cap Assy |
6E0-24610-02-00 |
from US $21.54 |
||
|
25
|
25
6E0-24181-00-00 Damper, Locating 1 |
6E0-24181-00-00 |
US $5.95 |
||
|
26
|
26
6E3-24641-00-00 Gasket, Cap 1 |
6E3-24641-00-00 |
from US $16.43 |
||
|
27
|
27
90445-09M37-00 Hose (L420) |
90445-09M37-00 |
from US $6.52 |
||
| replacements | |||||
|
27
|
27
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
27
|
27
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
28
|
28
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
29
|
29
6E0-24500-00-00 Fuel Cock Assembly 1 |
6E0-24500-00-00 |
US $25.93 |
||
| replacement | |||||
|
29
|
29
6E0-24500-01-00 Fuel Cock Assy 1 |
6E0-24500-01-00 |
from US $25.93 |
||
|
30
|
30
6E0-24571-00-00 Bushing |
6E0-24571-00-00 |
from US $18.32 |
||
|
31
|
31
6E0-24591-00-00
Graphic, Change Lev
|
6E0-24591-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
6E0-24572-00-00 Shaf2, Fuel Change |
6E0-24572-00-00 |
from US $23.80 |
||
|
33
|
33
6E0-24575-01-00 Lever, Fuel Change |
6E0-24575-01-00 |
from US $11.75 |
||
|
34
|
34
90202-12M17-00 Washer, Plate |
90202-12M17-00 |
from US $3.12 |
||
|
36
|
36
656-W2810-01-00 Tool Kit |
656-W2810-01-00 |
US $40.62 |
||
| replacements | |||||
|
36
|
36
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
|
36
|
36
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
