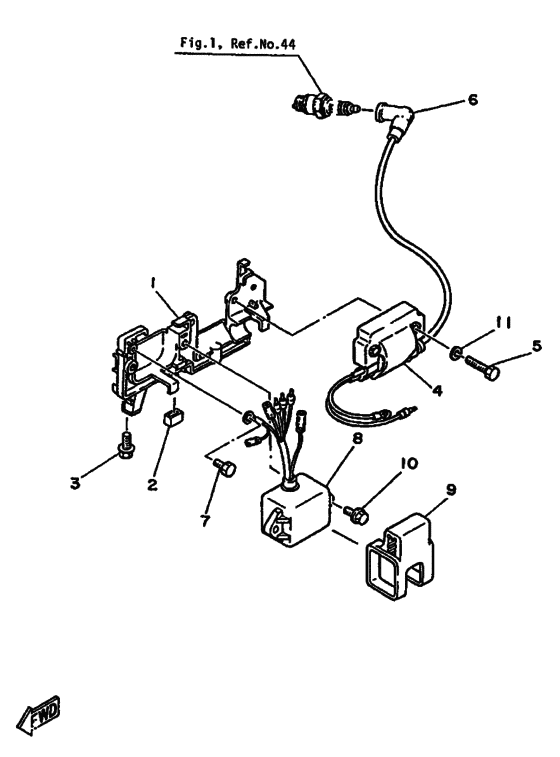

Electric parts Diagram Yamaha 5 MHS/L
- Year
- 1987
- Model
- 5C(CS)
- Model code
- 6E3
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E0-82316-00-94 Bracket, Ign Coil |
6E0-82316-00-94 |
US $28.19 |
||
| replacement | |||||
|
1
|
1
6E0-82316-01-00 Bracket, Ignition Coil |
6E0-82316-01-00 |
from US $28.19 |
||
|
2
|
2
6E0-82317-00-00 Damper, Ignition Coil |
6E0-82317-00-00 |
from US $3.69 |
||
|
3
|
3
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
3
|
3
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
3
|
3
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
3
|
3
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
4
|
4
6E0-85570-20-00 Ignition Coil Assy |
6E0-85570-20-00 |
US $66.69 |
||
| replacement | |||||
|
4
|
4
6E0-85570-21-00
Ignition Coil Assy
|
6E0-85570-21-00 |
— | ||
|
5
|
5
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
5
|
5
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
6
|
6
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
6
|
6
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
7
|
7
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
7
|
7
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
8
|
8
6E0-85540-70-00 C.d.i. Unit Assy |
6E0-85540-70-00 |
US $197.57 |
||
| replacements | |||||
|
8
|
8
6E0-85540-71-00 C.d.i. Unit Assy |
6E0-85540-71-00 |
US $197.57 |
||
|
8
|
8
6E0-85540-72-00 C.d.i. Unit Assy |
6E0-85540-72-00 |
from US $123.93 |
||
|
9
|
9
6E0-85548-00-00 Holder |
6E0-85548-00-00 |
from US $7.08 |
||
|
10
|
10
90105-06M15-00 Bolt, Flange |
90105-06M15-00 |
from US $2.05 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
