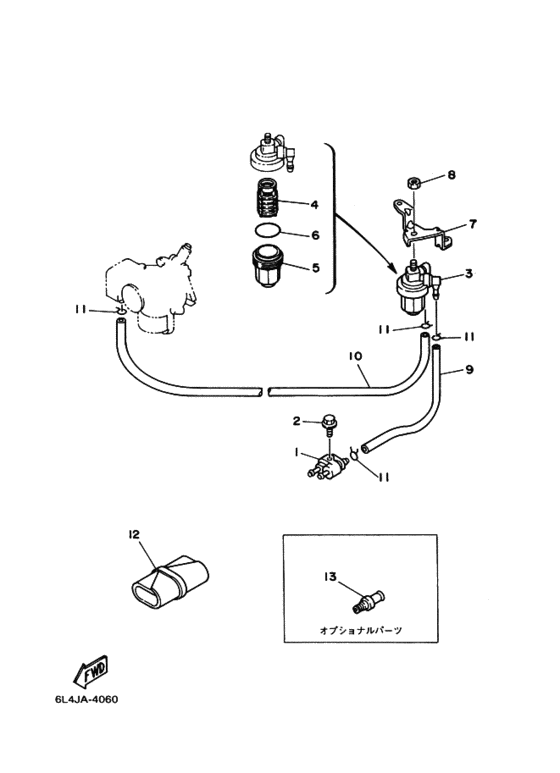

Fuel damper Diagram Yamaha 5 MHL
- Year
- 1998
- Model
- 5D
- Model code
- 6L4
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-02-00 Fuel Pipe Joint Comp. 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-10-00 |
US $29.47 |
||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-11-00 |
from US $30.64 |
||
|
2
|
2
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
2
|
2
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
2
|
2
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
3
|
3
61N-24560-00-00 Filter Assyフイルタアセンブリ; |
61N-24560-00-00 |
US $42.69 |
||
| replacement | |||||
|
3
|
3
61N-24560-10-00 Filter Assyフイルタアセンブリ; |
61N-24560-10-00 |
from US $25.26 |
||
|
4
|
4
61N-24563-00-00 Element, Filter．エレメント，フイルタ; |
61N-24563-00-00 |
from US $7.65 |
||
| replacement | |||||
|
4
|
4
61N-24563-10-00 Element, Filter．エレメント，フイルタ; |
61N-24563-10-00 |
from US $7.65 |
||
|
5
|
5
61N-24521-00-00 Cup, Filter．カツプ，フイルタ; |
61N-24521-00-00 |
from US $13.46 |
||
|
6
|
6
93210-32738-00 O-Ring．Ｏ−リング; |
93210-32738-00 |
from US $1.35 |
||
|
7
|
7
6K3-24566-00-00 Bracket, Filterブラケツト，フイルタ; |
6K3-24566-00-00 |
US $10.20 |
||
|
8
|
8
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
9
|
9
90445-09082-00 Hose (L150) |
90445-09082-00 |
from US $6.52 |
||
| replacements | |||||
|
9
|
9
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.06 |
||
|
9
|
9
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
|
10
|
10
90445-09163-00
Hose (L235)
ホ−ス; |
90445-09163-00 |
— | ||
| replacement | |||||
|
10
|
10
90445-09010-00
Hose (L260)
ホ−ス; |
90445-09010-00 |
— | ||
|
11
|
11
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
12
|
12
656-W2810-02-00 Tool Kitツ−ルキツト; |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
12
|
12
656-W2810-03-00 Tool Kitツ−ルキツト; |
656-W2810-03-00 |
from US $40.62 |
||
|
12
|
12
656-W2810-03-00 Tool Kitツ−ルキツト; |
656-W2810-03-00 |
from US $40.62 |
||
|
13
|
13
626-28193-01-94 Plug, Water Checkプラグ，ウオ−タチエツク; ＡＰ |
626-28193-01-94 |
from US $11.75 |
||
| replacement | |||||
|
13
|
13
626-28193-01-00 Plug, Water Checkプラグ，ウオ−タチエツク; ＡＰ |
626-28193-01-00 |
from US $15.17 |
||
