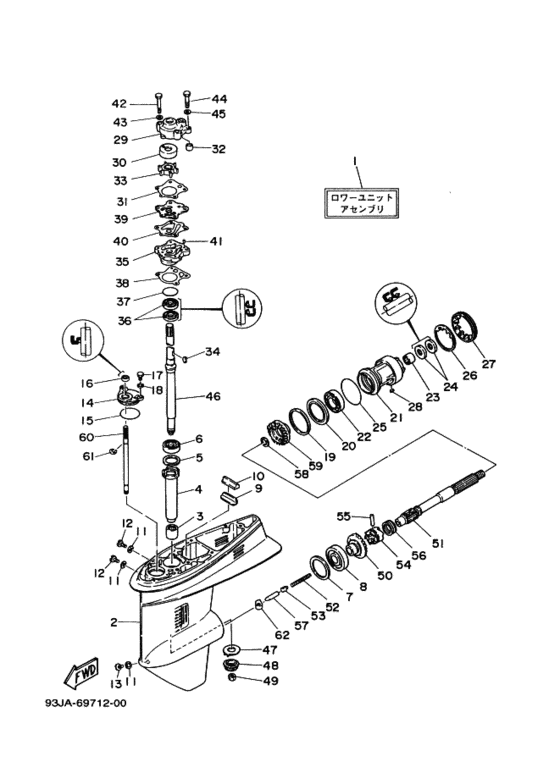

ﾛﾜｰｹｰｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 1 Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1993
- Model
- 55B
- Model code
- 697
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-45300-11-1D
Lower Unit Assy
ロワーユニツトアセンブリ; ＵＲ ロング （見出番号２〜６２） |
697-45300-11-1D |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
ロワーユニツトアセンブリ; ＵＲ ロング （見出番号２〜６２） |
999-99999-99-00 |
— | ||
|
1
|
1
697-45300-11-EK
Lower Unit Assembly
ロワーユニツトアセンブリ ; シルバーシヨウ; ＵＲ ロング （見出番号２〜６２） |
697-45300-11-EK |
— | ||
|
1
|
1
697-45300-20-1D
Lower Unit Assy
ロワーユニツトアセンブリ; ＵＲ ウルトラロング （見出番号２〜６２） |
697-45300-20-1D |
— | ||
|
1
|
1
697-45300-20-EK
Lower Unit Assy
ロワーユニツトアセンブリ ; シルバーシヨウ; ＵＲ ウルトラロング （見出番号２〜６２） |
697-45300-20-EK |
— | ||
|
2
|
2
691-45311-00-1D
Casing, Lower
ケーシング，ロワー; ＵＲ ウルトラロング |
691-45311-00-1D |
— | ||
|
2
|
2
691-45311-00-EK
Casing, Lower
ケーシング，ロワー ; シルバーシヨウ; ＵＲ ウルトラロング |
691-45311-00-EK |
— | ||
|
2
|
2
697-45311-00-1D
Casing, Lower
ケーシング，ロワー; ＵＲ ロング |
697-45311-00-1D |
— | ||
| replacements | |||||
|
2
|
2
697-45301-02-1D
Casing, Lower
ケーシング，ロワー; ＵＲ ロング |
697-45301-02-1D |
— | ||
|
2
|
2
697-45311-01-1D
Casing, Lower
ケーシング，ロワー; ＵＲ ロング |
697-45311-01-1D |
— | ||
|
2
|
2
697-45311-00-EK
Casing, Lower
ケーシング，ロワー ; シルバーシヨウ; ＵＲ ロング |
697-45311-00-EK |
— | ||
| replacements | |||||
|
2
|
2
697-45301-02-EK
NUT
ケーシング，ロワー ; シルバーシヨウ; ＵＲ ロング |
697-45301-02-EK |
— | ||
|
2
|
2
697-45311-01-EK
New Genuine Part
ケーシング，ロワー ; シルバーシヨウ; ＵＲ ロング |
697-45311-01-EK |
— | ||
|
3
|
3
933-15322-24-00 Bearing |
933-15322-24-00 |
from US $22.95 |
||
|
4
|
4
663-45536-00-00 Sleeve, Drive Shaftスリーブ，ドライブシヤフト; |
663-45536-00-00 |
from US $25.93 |
||
|
5
|
5
663-45587-01-10
Shim (T:0.10Mm)
．シム ; Ｔ：０１０ＭＭ; ＵＲ |
663-45587-01-10 |
— | ||
| replacement | |||||
|
5
|
5
663-45587-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
663-45587-01-00 |
from US $5.09 |
||
|
5
|
5
663-45587-01-12
Shim (T:0.12Mm)
．シム ; Ｔ：０１２ＭＭ; ＵＲ |
663-45587-01-12 |
— | ||
| replacement | |||||
|
5
|
5
663-45587-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
663-45587-10-00 |
from US $1.70 |
||
|
5
|
5
663-45587-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
663-45587-01-15 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
663-45587-20-00 |
from US $1.36 |
||
|
5
|
5
663-45587-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
663-45587-01-18 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
663-45587-30-00 |
from US $1.70 |
||
|
5
|
5
663-45587-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
663-45587-01-30 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
663-45587-40-00 |
from US $1.36 |
||
|
5
|
5
663-45587-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
663-45587-01-40 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
663-45587-50-00 |
from US $5.09 |
||
|
5
|
5
663-45587-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
663-45587-01-50 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
663-45587-60-00 |
from US $5.09 |
||
|
6
|
6
93332-00023-00 Bearing |
93332-00023-00 |
from US $22.53 |
||
| replacement | |||||
|
6
|
6
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.53 |
||
|
7
|
7
663-45567-01-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
663-45567-01-10 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
663-45567-01-00 |
from US $5.09 |
||
|
7
|
7
663-45567-01-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
663-45567-01-12 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
663-45567-10-00 |
from US $5.09 |
||
|
7
|
7
663-45567-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
663-45567-01-15 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
663-45567-20-00 |
from US $1.70 |
||
|
7
|
7
663-45567-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
663-45567-01-18 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
663-45567-30-00 |
from US $1.70 |
||
|
7
|
7
663-45567-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
663-45567-01-30 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
663-45567-40-00 |
from US $1.70 |
||
|
7
|
7
663-45567-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
663-45567-01-40 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
663-45567-50-00 |
from US $5.09 |
||
|
7
|
7
663-45567-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
663-45567-01-50 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
663-45567-60-00 |
from US $5.09 |
||
|
8
|
8
933-32000-03-00 Bearing |
933-32000-03-00 |
from US $24.51 |
||
|
9
|
9
663-45376-00-94
Guide, Seal Damper
ガイド，シールダンパ; ＵＲ ロング |
663-45376-00-94 |
— | ||
| replacement | |||||
|
9
|
9
663-45376-00-00 Guide, Seal Damperガイド，シールダンパ; ＵＲ ロング |
663-45376-00-00 |
from US $5.95 |
||
|
9
|
9
691-45376-00-94 Guide, Seal Damperガイド，シールダンパ; ＵＲ ウルトラロング |
691-45376-00-94 |
US $13.74 |
||
|
10
|
10
663-45375-00-00 Damper, Sealダンパ，シール; |
663-45375-00-00 |
from US $8.64 |
||
|
11
|
11
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
12
|
12
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
12
|
12
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
13
|
13
688-45341-00-00
Plug, Drain
プラグ，ドレン; |
688-45341-00-00 |
— | ||
| replacement | |||||
|
13
|
13
688-45341-10-00 Plug, Drainプラグ，ドレン; |
688-45341-10-00 |
from US $7.37 |
||
|
14
|
14
663-45321-00-00 Plateプレート; |
663-45321-00-00 |
from US $24.37 |
||
|
15
|
15
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.70 |
||
|
16
|
16
931-06090-14-00 Oil Sealオイルシール; |
931-06090-14-00 |
from US $2.98 |
||
|
17
|
17
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
663-45577-01-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
663-45577-01-10 |
US $5.95 |
||
| replacement | |||||
|
19
|
19
663-45577-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
663-45577-01-00 |
from US $5.95 |
||
|
19
|
19
663-45577-01-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
663-45577-01-12 |
US $5.95 |
||
| replacement | |||||
|
19
|
19
663-45577-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
663-45577-10-00 |
from US $5.09 |
||
|
19
|
19
663-45577-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
663-45577-01-15 |
US $5.95 |
||
| replacement | |||||
|
19
|
19
663-45577-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
663-45577-20-00 |
from US $1.70 |
||
|
19
|
19
663-45577-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
663-45577-01-18 |
US $5.95 |
||
| replacement | |||||
|
19
|
19
663-45577-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
663-45577-30-00 |
from US $5.09 |
||
|
19
|
19
663-45577-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
663-45577-01-30 |
US $5.95 |
||
| replacement | |||||
|
19
|
19
663-45577-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
663-45577-40-00 |
from US $5.95 |
||
|
19
|
19
663-45577-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
663-45577-01-40 |
US $5.95 |
||
| replacement | |||||
|
19
|
19
663-45577-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
663-45577-50-00 |
from US $1.70 |
||
|
19
|
19
663-45577-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
663-45577-01-50 |
US $5.95 |
||
| replacement | |||||
|
19
|
19
663-45577-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
663-45577-60-00 |
from US $1.70 |
||
|
20
|
20
663-45576-00-00 Washer, Thrust 2ワツシヤ，スラスト; |
663-45576-00-00 |
from US $5.95 |
||
|
21
|
21
663-45331-00-94 Housing, Bearingハウジング，ベアリング; |
663-45331-00-94 |
US $169.94 |
||
| replacement | |||||
|
21
|
21
663-45331-00-CA Housing, Bearingハウジング，ベアリング; |
663-45331-00-CA |
from US $88.20 |
||
|
22
|
22
933-06007-02-00 Bearing |
933-06007-02-00 |
from US $21.56 |
||
|
23
|
23
933-17222-04-00 Bearing |
933-17222-04-00 |
from US $10.48 |
||
|
24
|
24
931-01220-67-00 Oil Sealオイルシール; |
931-01220-67-00 |
from US $7.51 |
||
|
25
|
25
93210-66M98-00 O-RingＯ−リング; |
93210-66M98-00 |
from US $6.80 |
||
|
26
|
26
90214-48M03-00 Washer, Clawワツシヤ，クロー; |
90214-48M03-00 |
from US $7.51 |
||
|
27
|
27
697-45384-01-00 Nut |
697-45384-01-00 |
US $46.42 |
||
| replacement | |||||
|
27
|
27
697-45384-02-00 Nut |
697-45384-02-00 |
from US $16.84 |
||
|
28
|
28
902-82040-10-00 Key, Straightキー，ストレイト; |
902-82040-10-00 |
from US $3.40 |
||
|
29
|
29
663-44311-02-00 Housing, Water Pumpハウジング，ウオータポンプ; |
663-44311-02-00 |
from US $67.84 |
||
|
30
|
30
663-44322-00-00 Insert, Cartridgeインサート，カートリツジ; |
663-44322-00-00 |
from US $11.80 |
||
|
31
|
31
663-44315-00-00 Gasket, Water Pumpガスケツト，ウオータポンプ; |
663-44315-00-00 |
US $7.79 |
||
| replacement | |||||
|
31
|
31
663-44315-A0-00 Gasket, Water Pumpガスケツト，ウオータポンプ; |
663-44315-A0-00 |
from US $4.04 |
||
|
32
|
32
663-44366-00-00 Damper, Water Seal 2ダンパ，ウオータシール; |
663-44366-00-00 |
from US $3.83 |
||
|
33
|
33
697-44352-00-00 Impellerインペラ; |
697-44352-00-00 |
US $22.95 |
||
| replacement | |||||
|
33
|
33
6H3-44352-00-00 Impellerインペラ; |
6H3-44352-00-00 |
from US $22.95 |
||
|
34
|
34
902-8003M-03-00 Key, Woodruffキー，ウツドラフ; |
902-8003M-03-00 |
from US $7.42 |
||
|
35
|
35
663-44341-00-94 Housing, Water Pumpハウジング，ウオータポンプ; |
663-44341-00-94 |
US $76.40 |
||
| replacement | |||||
|
35
|
35
663-44341-00-00 Housing, Water Pumpハウジング，ウオータポンプ; |
663-44341-00-00 |
from US $43.10 |
||
|
36
|
36
93101-23070-00 Oil Sealオイルシール; |
93101-23070-00 |
from US $10.78 |
||
|
37
|
37
93210-41042-00 O-Ring |
93210-41042-00 |
from US $2.70 |
||
|
38
|
38
663-44316-00-00 Gasket, Water Pumpガスケツト，ウオータポンプ; |
663-44316-00-00 |
US $5.95 |
||
| replacement | |||||
|
38
|
38
663-44316-A0-00 Gasket, Water Pumpガスケツト，ウオータポンプ; |
663-44316-A0-00 |
from US $3.04 |
||
|
39
|
39
663-44323-00-00 Outer Plate, Cartidgeアウタプレート，カートリツジ; |
663-44323-00-00 |
from US $13.14 |
||
|
40
|
40
663-44324-00-00 Oil Sealガスケツト，カートリツジ; |
663-44324-00-00 |
US $6.52 |
||
| replacement | |||||
|
40
|
40
663-44324-A0-00 Gasket, Cartridgeガスケツト，カートリツジ; |
663-44324-A0-00 |
from US $2.70 |
||
|
41
|
41
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.70 |
||
|
42
|
42
97395-08055-00 Bolt |
97395-08055-00 |
from US $6.66 |
||
| replacement | |||||
|
42
|
42
97095-08055-00 Bolt |
97095-08055-00 |
from US $6.66 |
||
|
43
|
43
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.36 |
||
|
44
|
44
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
44
|
44
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
44
|
44
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
45
|
45
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.36 |
||
|
46
|
46
663-45510-11-00 Drive Shaft Assemblyドライブシヤフトアセンブリ; ＵＲ ロング |
663-45510-11-00 |
from US $601.92 |
||
|
46
|
46
687-45510-20-00
Drive Shaft Assy
ドライブシヤフトアセンブリ; ＵＲ ウルトラロング |
687-45510-20-00 |
— | ||
|
47
|
47
663-45552-00-00 Bearing, Plainベアリング，プレーン; |
663-45552-00-00 |
from US $6.80 |
||
|
48
|
48
697-45551-00-00 Pinion (13T) |
697-45551-00-00 |
from US $82.14 |
||
|
49
|
49
90170-12138-00 Nut |
90170-12138-00 |
from US $6.52 |
||
|
50
|
50
697-45560-00-00 Gear 1 (24T)ギヤ; |
697-45560-00-00 |
from US $147.10 |
||
|
51
|
51
697-45611-00-00 Shaft, Propellerシヤフト，プロペラ; |
697-45611-00-00 |
from US $361.46 |
||
|
52
|
52
90501-16233-00 Spring, Compression |
90501-16233-00 |
from US $4.04 |
||
|
53
|
53
663-45634-00-00 Slide, Shiftスライド，シフト; |
663-45634-00-00 |
from US $7.37 |
||
|
54
|
54
663-45631-01-00 Clutch, Dogクラツチ，ドツグ; |
663-45631-01-00 |
from US $85.11 |
||
|
55
|
55
90250-06023-00 Pin, Straight |
90250-06023-00 |
from US $3.54 |
||
|
56
|
56
663-45633-00-00 Ring, Cross Pinリング，クロスピン; |
663-45633-00-00 |
from US $1.36 |
||
|
57
|
57
688-45635-00-00 Plunger, Shiftプランジヤ，シフト; |
688-45635-00-00 |
from US $18.52 |
||
|
58
|
58
90201-22429-00 Washer, Plateワツシヤ，プレート; |
90201-22429-00 |
from US $4.72 |
||
|
59
|
59
697-45571-00-00 Gear 2 (24T)ギヤ; |
697-45571-00-00 |
from US $190.66 |
||
|
60
|
60
663-44144-01-00 Rod, Shiftロツド，シフト; |
663-44144-01-00 |
from US $38.04 |
||
|
61
|
61
99001-08600-00 Circlipサークリツプ; |
99001-08600-00 |
from US $1.42 |
||
|
62
|
62
663-44151-00-00 Cam, Shift |
663-44151-00-00 |
from US $23.24 |
||
