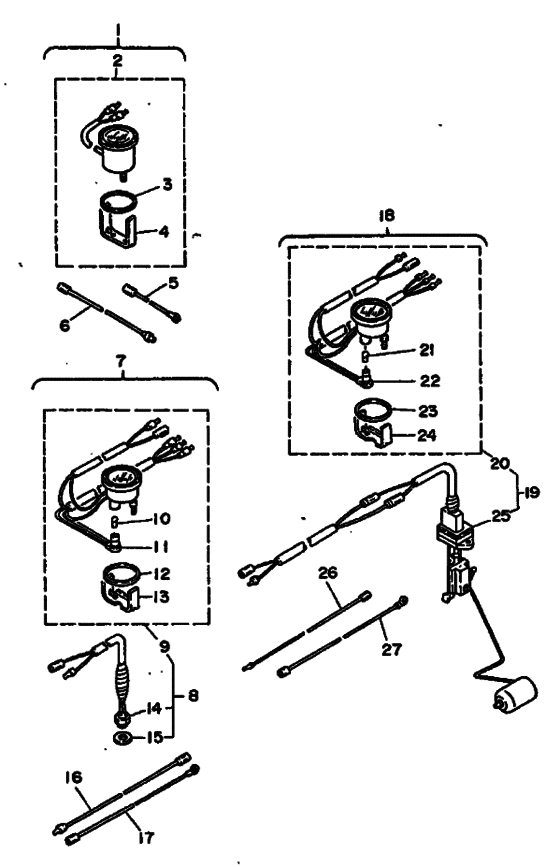

Optional parts 2 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1985
- Model
- 70B
- Model code
- 6H3
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-W0088-30-00
Hour Meter Kit
|
688-W0088-30-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
688-83504-00-00 Hour Meter Assy |
688-83504-00-00 |
from US $245.32 |
||
|
3
|
3
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
4
|
4
688-83577-00-00
Plate, Fitting
|
688-83577-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
663-83553-A0-00 Wire, Lead |
663-83553-A0-00 |
from US $26.23 |
||
|
6
|
6
663-83553-Y0-00 Wire, LeadYELLOW |
663-83553-Y0-00 |
from US $24.91 |
||
|
7
|
7
688-W0088-10-00
Water Temp. Meter Kit
|
688-W0088-10-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
688-83590-00-00 Water Temperature Assy |
688-83590-00-00 |
US $301.19 |
||
|
9
|
9
688-83594-00-00 Water Temp. Gauge |
688-83594-00-00 |
US $274.94 |
||
| replacements | |||||
|
9
|
9
6Y5-83590-00-00 Water Temp Meter |
6Y5-83590-00-00 |
US $227.88 |
||
|
9
|
9
6Y5-83590-02-00 Water Temperature |
6Y5-83590-02-00 |
US $208.58 |
||
|
10
|
10
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
11
|
11
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
12
|
12
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
13
|
13
688-83665-00-00 Plate, Fitting |
688-83665-00-00 |
from US $10.20 |
||
|
14
|
14
688-83591-00-00 Thermo Unit |
688-83591-00-00 |
from US $96.16 |
||
|
15
|
15
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
16
|
16
663-83553-Y0-00 Wire, LeadYELLOW |
663-83553-Y0-00 |
from US $24.91 |
||
|
17
|
17
663-83553-A0-00 Wire, Lead |
663-83553-A0-00 |
from US $26.23 |
||
|
18
|
18
688-W0088-21-00
Fuel Meter Kit
|
688-W0088-21-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
688-85750-00-00
Fuel Meter Assy
|
688-85750-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
688-85751-00-00 Fuel Gauge |
688-85751-00-00 |
US $134.43 |
||
| replacements | |||||
|
20
|
20
688-W0088-20-00
Fuel Meter Kit
|
688-W0088-20-00 |
— | ||
|
20
|
20
6Y5-85750-10-00 Analog Fuel Meter (Black) |
6Y5-85750-10-00 |
US $134.43 |
||
|
20
|
20
6Y5-85750-12-00 Fuel Meter Assy |
6Y5-85750-12-00 |
US $342.23 |
||
|
21
|
21
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
22
|
22
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
23
|
23
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
24
|
24
688-85756-00-00
Plate, Fitting
|
688-85756-00-00 |
— | ||
|
25
|
25
688-85752-00-00
Sender Unit Assy, Fuel Meter
|
688-85752-00-00 |
— | ||
|
26
|
26
663-83553-Y0-00 Wire, LeadYELLOW |
663-83553-Y0-00 |
from US $24.91 |
||
|
27
|
27
663-83553-A0-00 Wire, Lead |
663-83553-A0-00 |
from US $26.23 |
||
