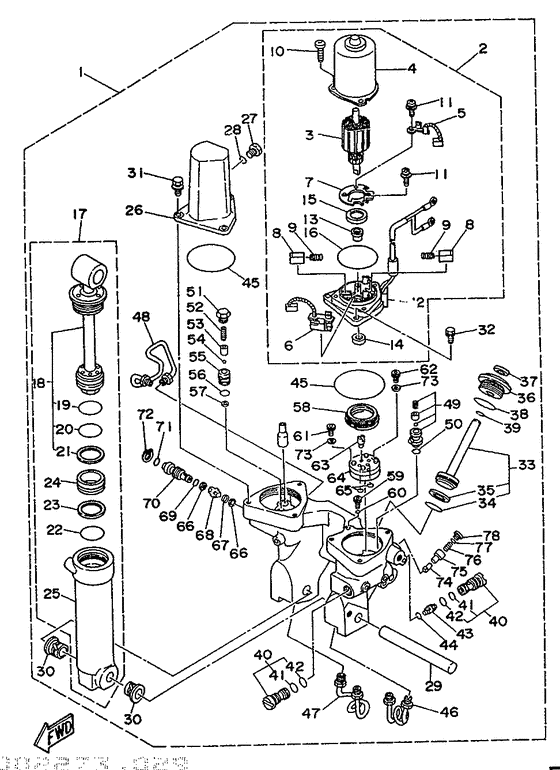

Puissance parer et incliner Diagram Yamaha 70 ET(D/M)OL
- Year
- 1995
- Model
- 70B
- Model code
- 6H3
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H3-43800-07-4D Power Trim & Tilt Assembly |
6H3-43800-07-4D |
US $4,218.22 |
||
| replacement | |||||
|
01
|
01
6H3-43800-08-4D Power Tilt & Trimkit |
6H3-43800-08-4D |
from US $4,218.22 |
||
|
02
|
02
6H1-43880-02-00 Motor Assy |
6H1-43880-02-00 |
from US $497.56 |
||
|
03
|
03
6H1-43805-10-00 Armature Assy |
6H1-43805-10-00 |
from US $566.28 |
||
|
04
|
04
6H1-43804-10-00 Stator Assy |
6H1-43804-10-00 |
from US $348.16 |
||
|
05
|
05
6H1-43891-10-00 Brush 1 |
6H1-43891-10-00 |
from US $36.89 |
||
|
06
|
06
6H1-43892-10-00 Breaker Comp (Brush 2) |
6H1-43892-10-00 |
from US $125.45 |
||
|
07
|
07
61H-4380F-10-00
Plate, Brush Holder
|
61H-4380F-10-00 |
— | ||
|
08
|
08
6H1-4380J-10-00 Holder, Brush |
6H1-4380J-10-00 |
from US $15.16 |
||
|
09
|
09
6H1-4386K-10-00 Spring, Brush |
6H1-4386K-10-00 |
from US $4.11 |
||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
11
|
11
97607-04310-00 Screw, With Washer |
97607-04310-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
12
|
12
6H1-43881-10-00 Frame, End |
6H1-43881-10-00 |
from US $323.29 |
||
|
13
|
13
6H1-4380H-10-00 Metal |
6H1-4380H-10-00 |
from US $24.65 |
||
|
14
|
14
93102-08M43-00 Oil Seal |
93102-08M43-00 |
from US $6.62 |
||
|
15
|
15
6H1-4380G-10-00 Plate |
6H1-4380G-10-00 |
from US $24.65 |
||
|
16
|
16
6H1-43865-10-00 O-Ring |
6H1-43865-10-00 |
from US $8.94 |
||
|
17
|
17
697-4380E-01-00 Tilt Cylinder Assembly |
697-4380E-01-00 |
from US $1,482.20 |
||
|
18
|
18
697-43810-02-00 Piston Sub-Assembly (Tilt) |
697-43810-02-00 |
from US $564.96 |
||
|
19
|
19
6E5-43861-00-00 O-Ring |
6E5-43861-00-00 |
US $5.67 |
||
|
20
|
20
6E5-43862-00-00 O-Ring |
6E5-43862-00-00 |
US $2.98 |
||
| replacement | |||||
|
20
|
20
6E5-43862-09-00 ORING 2 |
6E5-43862-09-00 |
from US $2 |
||
|
21
|
21
6E5-43872-00-00 Ring, Back Up |
6E5-43872-00-00 |
from US $6.62 |
||
|
22
|
22
6E5-43862-00-00 O-Ring |
6E5-43862-00-00 |
US $2.98 |
||
| replacement | |||||
|
22
|
22
6E5-43862-09-00 ORING 2 |
6E5-43862-09-00 |
from US $2 |
||
|
23
|
23
6E5-43872-00-00 Ring, Back Up |
6E5-43872-00-00 |
from US $6.62 |
||
|
24
|
24
6E5-43814-01-00 Piston, Free |
6E5-43814-01-00 |
US $77.37 |
||
| replacement | |||||
|
24
|
24
6E5-43814-02-00 Piston, Free |
6E5-43814-02-00 |
from US $47.62 |
||
|
25
|
25
6E5-43813-02-00
Cylinder, Tilt
|
6E5-43813-02-00 |
— | ||
|
26
|
26
6E5-43828-00-00 Body, Reservoir |
6E5-43828-00-00 |
from US $157.45 |
||
|
27
|
27
6E5-43829-00-00 Plug, Reservoir |
6E5-43829-00-00 |
from US $10.32 |
||
|
28
|
28
6E5-43863-00-00 O-Ring |
6E5-43863-00-00 |
from US $3.26 |
||
|
29
|
29
6E5-43818-00-00 Pin, Lower Shock Mount |
6E5-43818-00-00 |
from US $44.05 |
||
|
30
|
30
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.32 |
||
|
31
|
31
90119-06M42-00 Bolt, With Washer |
90119-06M42-00 |
from US $6.23 |
||
|
32
|
32
90119-06M71-00 Bolt, With Washer |
90119-06M71-00 |
US $7.51 |
||
|
33
|
33
6E5-43820-03-00 Piston Sub Assembly |
6E5-43820-03-00 |
from US $191.77 |
||
|
34
|
34
6E5-43864-00-00 O-Ring |
6E5-43864-00-00 |
US $1.84 |
||
|
35
|
35
6E5-43874-01-00 Ring, Back Up |
6E5-43874-01-00 |
from US $6.62 |
||
|
36
|
36
6E5-43821-01-00 Screw, Trim Cylinder End |
6E5-43821-01-00 |
from US $140.02 |
||
|
37
|
37
6E5-43822-01-00 Seal, Trim Dust |
6E5-43822-01-00 |
from US $18.13 |
||
|
38
|
38
6E5-43862-00-00 O-Ring |
6E5-43862-00-00 |
US $2.98 |
||
| replacement | |||||
|
38
|
38
6E5-43862-09-00 ORING 2 |
6E5-43862-09-00 |
from US $2 |
||
|
39
|
39
6E5-43865-00-00 O-Ring |
6E5-43865-00-00 |
US $3.54 |
||
| replacement | |||||
|
39
|
39
6E5-43865-09-00 O-Ring |
6E5-43865-09-00 |
from US $1.66 |
||
|
40
|
40
6E5-43802-00-00
Valve Sub Assembly
|
6E5-43802-00-00 |
— | ||
|
41
|
41
6E5-43866-00-00 O-Ring |
6E5-43866-00-00 |
from US $4.39 |
||
|
42
|
42
6E5-43867-00-00 O-Ring |
6E5-43867-00-00 |
from US $3.40 |
||
|
43
|
43
6E5-43841-01-00
Piston, Shuttle
|
6E5-43841-01-00 |
— | ||
|
44
|
44
6E5-43868-00-00
O-Ring
|
6E5-43868-00-00 |
— | ||
|
45
|
45
6E5-43869-00-00 O-Ring |
6E5-43869-00-00 |
US $6.66 |
||
|
46
|
46
6E5-43833-01-00 Pipe |
6E5-43833-01-00 |
from US $66.62 |
||
|
47
|
47
6E5-43834-01-00 Pipe |
6E5-43834-01-00 |
from US $67.93 |
||
|
48
|
48
6E5-43835-01-00 Pipe |
6E5-43835-01-00 |
US $90.36 |
||
|
49
|
49
6G5-43808-02-00
Seat Valve Comp 1
|
6G5-43808-02-00 |
— | ||
|
50
|
50
6E5-43883-00-00 O-Ring |
6E5-43883-00-00 |
from US $1.34 |
||
| replacement | |||||
|
50
|
50
6E5-43883-09-00 O-Ring 10 |
6E5-43883-09-00 |
US $9.83 |
||
|
51
|
51
6E5-43843-00-00 Screw, Valve Lock |
6E5-43843-00-00 |
US $11.60 |
||
|
52
|
52
6H3-43855-00-00 Spring, Up Relief |
6H3-43855-00-00 |
US $3.09 |
||
|
53
|
53
6E5-43859-00-00 Pin, Valve Support |
6E5-43859-00-00 |
from US $9.49 |
||
|
54
|
54
6E5-43877-01-00 Ball |
6E5-43877-01-00 |
from US $5.95 |
||
|
55
|
55
6E5-43895-00-00 O-Ring |
6E5-43895-00-00 |
from US $39.36 |
||
|
56
|
56
6E5-43896-00-00 O-Ring |
6E5-43896-00-00 |
US $3.26 |
||
|
57
|
57
6E5-43816-10-00 Filter 1 |
6E5-43816-10-00 |
from US $19.33 |
||
|
58
|
58
6E5-43817-10-00 Filter 2 |
6E5-43817-10-00 |
from US $35.92 |
||
|
59
|
59
90109-06M21-00 Bolt |
90109-06M21-00 |
from US $7.93 |
||
|
60
|
60
6E5-43897-00-00 O-Ring |
6E5-43897-00-00 |
from US $2.83 |
||
|
61
|
61
6E5-43878-01-00
Bolt, Socket
|
6E5-43878-01-00 |
— | ||
|
62
|
62
6E5-43888-01-00 Bolt, Socket |
6E5-43888-01-00 |
from US $5.09 |
||
|
63
|
63
6E5-43831-00-00 Connector, Shaft |
6E5-43831-00-00 |
from US $13.16 |
||
|
64
|
64
6E5-43830-00-00 Gear Pump Assembly |
6E5-43830-00-00 |
US $302.33 |
||
|
65
|
65
93210-07M78-00 O-Ring |
93210-07M78-00 |
from US $2.55 |
||
|
66
|
66
6E5-43847-00-00 Seat, Manual Valve |
6E5-43847-00-00 |
from US $10.34 |
||
|
67
|
67
6E5-43854-01-00 Spring, Manual Release |
6E5-43854-01-00 |
from US $9.49 |
||
|
68
|
68
6E5-4382A-00-00 Adapter 1 |
6E5-4382A-00-00 |
from US $7.33 |
||
|
69
|
69
93210-10M74-00 O-Ring |
93210-10M74-00 |
US $2.13 |
||
|
70
|
70
6E5-43845-01-00 Screw, Manual Release |
6E5-43845-01-00 |
from US $41.51 |
||
|
71
|
71
93210-18M75-00 O-Ring |
93210-18M75-00 |
from US $2.27 |
||
|
72
|
72
6E5-43875-00-00 Ring, Snap |
6E5-43875-00-00 |
US $4.39 |
||
| replacement | |||||
|
72
|
72
6H1-43875-00-00 Ring, Snap |
6H1-43875-00-00 |
from US $2.98 |
||
|
73
|
73
90201-05M00-00 Washer, Plate |
90201-05M00-00 |
from US $1.47 |
||
|
74
|
74
6E5-4381A-00-00 Shaft |
6E5-4381A-00-00 |
from US $20.69 |
||
|
75
|
75
6E5-43849-01-00 Pin, Valve Support |
6E5-43849-01-00 |
from US $21.26 |
||
|
76
|
76
6E5-43824-01-00 Spring, Compression |
6E5-43824-01-00 |
from US $10.02 |
||
|
77
|
77
93210-06M77-00 O-Ring |
93210-06M77-00 |
US $1.90 |
||
|
78
|
78
6E5-43842-00-00 Screw, Valve Seat2 (long) |
6E5-43842-00-00 |
from US $10.06 |
||
