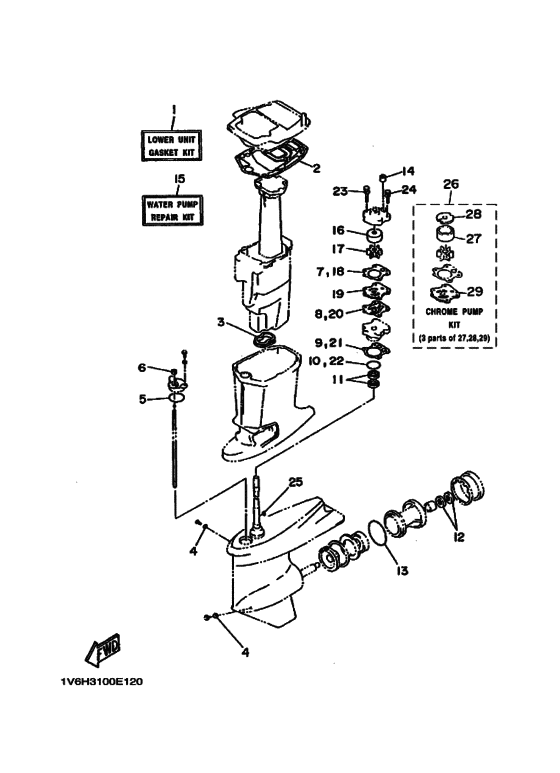

Repair kit 2 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1997
- Model
- 70B
- Model code
- 6H3
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-W0001-22-00 Lower Unit Gasket Kit |
6H3-W0001-22-00 |
from US $99.13 |
||
|
2
|
2
6H3-45114-A1-00 Gasket, Upper Casing |
6H3-45114-A1-00 |
from US $11.92 |
||
|
3
|
3
6H3-45123-00-00 Gasket, Muffler |
6H3-45123-00-00 |
from US $18.14 |
||
|
4
|
4
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
5
|
5
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.70 |
||
|
6
|
6
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $2.98 |
||
|
7
|
7
6H3-44315-A0-00 Gasket, Water Pump |
6H3-44315-A0-00 |
from US $4.82 |
||
|
8
|
8
6H3-44324-A0-00 Gasket, Cartridge |
6H3-44324-A0-00 |
from US $4.11 |
||
|
9
|
9
688-44316-A0-00 Gasket, Water Pump |
688-44316-A0-00 |
from US $3.32 |
||
|
10
|
10
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.55 |
||
|
11
|
11
93101-23070-00 Oil Seal |
93101-23070-00 |
from US $10.58 |
||
|
12
|
12
931-0125M-03-00 Oil Seal |
931-0125M-03-00 |
from US $4.30 |
||
|
13
|
13
932-1085M-97-00 O-Ring |
932-1085M-97-00 |
from US $6.94 |
||
|
14
|
14
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.83 |
||
|
15
|
15
6H3-W0078-02-00 Water Pump Repair Kit |
6H3-W0078-02-00 |
from US $49.72 |
||
|
16
|
16
663-44322-00-00 Insert, Cartridge |
663-44322-00-00 |
from US $11.58 |
||
|
17
|
17
6H3-44352-00-00 Impeller |
6H3-44352-00-00 |
from US $22.95 |
||
|
18
|
18
6H3-44315-A0-00 Gasket, Water Pump |
6H3-44315-A0-00 |
from US $4.82 |
||
|
19
|
19
6H3-44323-00-00 Outer Plate, Cartridge |
6H3-44323-00-00 |
from US $6.62 |
||
|
20
|
20
6H3-44324-A0-00 Gasket, Cartridge |
6H3-44324-A0-00 |
from US $4.11 |
||
|
21
|
21
688-44316-A0-00 Gasket, Water Pump |
688-44316-A0-00 |
from US $3.32 |
||
|
22
|
22
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.55 |
||
|
23
|
23
90119-08M33-00 Bolt, With Washer |
90119-08M33-00 |
from US $6.94 |
||
|
24
|
24
90119-08M14-00 Bolt, With Washer |
90119-08M14-00 |
from US $2.98 |
||
|
25
|
25
902-8003M-03-00 Key, Woodruff |
902-8003M-03-00 |
from US $7.28 |
||
|
26
|
26
6H3-W0078-0A-00 Chrome Pump Kit |
6H3-W0078-0A-00 |
from US $168.28 |
||
|
27
|
27
670-44322-01-00 Insert, Cartridge |
670-44322-01-00 |
from US $69.55 |
||
|
28
|
28
670-44321-00-00 Inner Plate, Cartridge |
670-44321-00-00 |
from US $58.52 |
||
|
29
|
29
6H3-44323-40-00 Outer Plate, Cartridge |
6H3-44323-40-00 |
from US $14.03 |
||
