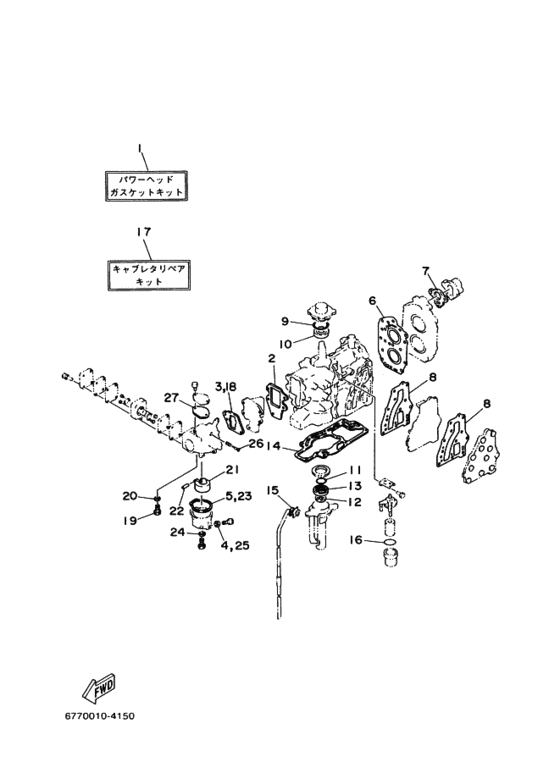

ﾘﾍﾟｱｷﾂﾄ 1 Diagram Yamaha 8 MHS/L
- Year
- 2001
- Model
- E8D
- Model code
- 677
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
677-W0001-A2-00 Power Head Gasket Kitパワーヘツドガスケツトキツト; |
677-W0001-A2-00 |
US $149.29 |
||
|
2
|
2
677-13621-00-00
Gasket, Valve Seat
．ガスケツト，バルブシ−ト; |
677-13621-00-00 |
— | ||
| replacements | |||||
|
2
|
2
677-13621-A1-00 Gasket, Valve Seat．ガスケツト，バルブシ−ト; |
677-13621-A1-00 |
US $10.20 |
||
|
2
|
2
677-13621-A0-00 Gasket, Valve Seat．ガスケツト，バルブシ−ト; |
677-13621-A0-00 |
US $10.20 |
||
|
3
|
3
677-14198-A0-00 Gasket．ガスケツト; |
677-14198-A0-00 |
US $3.26 |
||
| replacement | |||||
|
3
|
3
677-14198-A1-00 Gasket．ガスケツト; |
677-14198-A1-00 |
from US $3.26 |
||
|
4
|
4
655-14398-00-00 Gasket．ガスケツト; |
655-14398-00-00 |
from US $3.24 |
||
|
5
|
5
677-14384-01-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
677-14384-01-00 |
US $7.51 |
||
|
6
|
6
677-11181-A1-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
677-11181-A1-00 |
from US $36.14 |
||
|
7
|
7
677-12414-00-00 Gasket, Cover．ガスケツト，カバ−; |
677-12414-00-00 |
US $3.83 |
||
| replacement | |||||
|
7
|
7
677-12414-A1-00 Gasket, Cover．ガスケツト，カバ−; |
677-12414-A1-00 |
US $3.83 |
||
|
8
|
8
677-41112-A0-00 Gasket, Exhaust Inner Cover．ガスケツト，エキゾ−ストインナカバ−; |
677-41112-A0-00 |
US $10.34 |
||
| replacement | |||||
|
8
|
8
677-41112-A2-00 Gasket, Exhaust Inner Cover．ガスケツト，エキゾ−ストインナカバ−; |
677-41112-A2-00 |
US $10.34 |
||
|
9
|
9
93210-42159-00 O-Ring．Ｏ−リング; |
93210-42159-00 |
from US $2.36 |
||
|
10
|
10
931-0220M-25-00 Oil Seal (6E0)．オイルシ−ル; |
931-0220M-25-00 |
from US $5.40 |
||
|
11
|
11
93210-42M70-00 O-Ring．Ｏ−リング; |
93210-42M70-00 |
US $7.65 |
||
|
12
|
12
93101-14M01-00 Oil Seal．オイルシ−ル; |
93101-14M01-00 |
US $15.44 |
||
|
13
|
13
931-0120M-29-00 Oil Seal．オイルシ−ル; |
931-0120M-29-00 |
from US $6.74 |
||
|
14
|
14
677-45113-A0-00 Gasket, Upper Casing．ガスケツト，アツパ−ケ−シング; |
677-45113-A0-00 |
US $19.13 |
||
| replacement | |||||
|
14
|
14
677-45113-A1-00 Gasket, Upper Casing．ガスケツト，アツパ−ケ−シング; |
677-45113-A1-00 |
US $19.13 |
||
|
15
|
15
655-44365-00-00 Damper, Water Seal 1．ダンパ，ウオータシール; |
655-44365-00-00 |
US $3.68 |
||
|
16
|
16
93210-32738-00 O-Ring．Ｏ−リング; |
93210-32738-00 |
from US $1.35 |
||
|
17
|
17
677-W0093-06-00 Carburetor Repair Kitキヤブレタリペアキツト; |
677-W0093-06-00 |
US $82.07 |
||
|
18
|
18
677-14198-A0-00 Gasket．ガスケツト; |
677-14198-A0-00 |
US $3.26 |
||
| replacement | |||||
|
18
|
18
677-14198-A1-00 Gasket．ガスケツト; |
677-14198-A1-00 |
from US $3.26 |
||
|
19
|
19
6E8-14390-12-00 Needle Valve Assembly．ニ−ドルバルブアセンブリ; |
6E8-14390-12-00 |
from US $26.49 |
||
|
20
|
20
367-14195-00-00 Washer, Needle Valve．ガスケツト; |
367-14195-00-00 |
from US $3.40 |
||
|
21
|
21
6E7-14385-00-00 Float．フロ−ト; |
6E7-14385-00-00 |
from US $26.49 |
||
|
22
|
22
647-14386-10-00 Pin, Float．ピン，フロ−ト; |
647-14386-10-00 |
from US $2.88 |
||
|
23
|
23
677-14384-01-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
677-14384-01-00 |
US $7.51 |
||
|
24
|
24
1J2-14398-00-00 Gasket．ガスケツト; |
1J2-14398-00-00 |
from US $2.02 |
||
|
25
|
25
655-14398-00-00 Gasket．ガスケツト; |
655-14398-00-00 |
from US $3.24 |
||
|
26
|
26
648-14323-00-00 Screw, Air Adjusting．スクリユ，エアアジヤステイング; |
648-14323-00-00 |
US $9.21 |
||
| replacement | |||||
|
26
|
26
647-14323-00-00 Screw, Air Adjusting．スクリユ，エアアジヤステイング; |
647-14323-00-00 |
from US $6.21 |
||
|
27
|
27
677-14227-01-00 Gasket．ガスケツト; |
677-14227-01-00 |
from US $8.08 |
||
