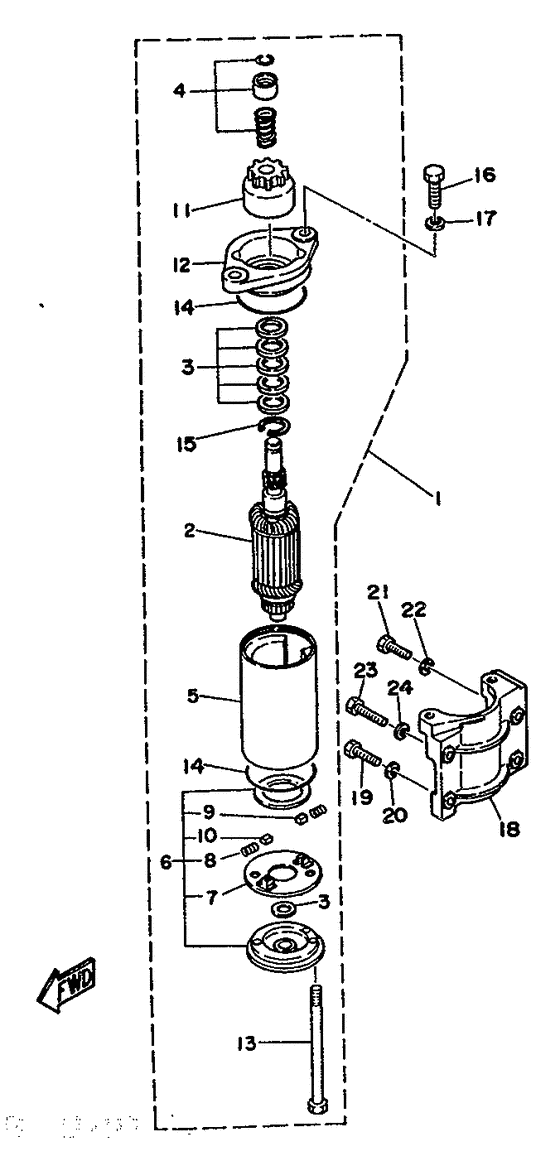

Alternate 2 Diagram Yamaha 8 EMS/L
- Year
- 1992
- Model
- 8C
- Model code
- 6G1
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15
|
15
682-81834-10-00 Ring |
682-81834-10-00 |
from US $7.37 |
||
|
16
|
16
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
17
|
17
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
18
|
18
682-81822-43-94 Bracket, Electric Motor (682-81822-42-94) |
682-81822-43-94 |
US $40.45 |
||
|
19
|
19
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
19
|
19
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
21
|
21
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
23
|
23
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646)(6cem/6dem/8cem model) |
929-90066-00-00 |
from US $1.07 |
||
