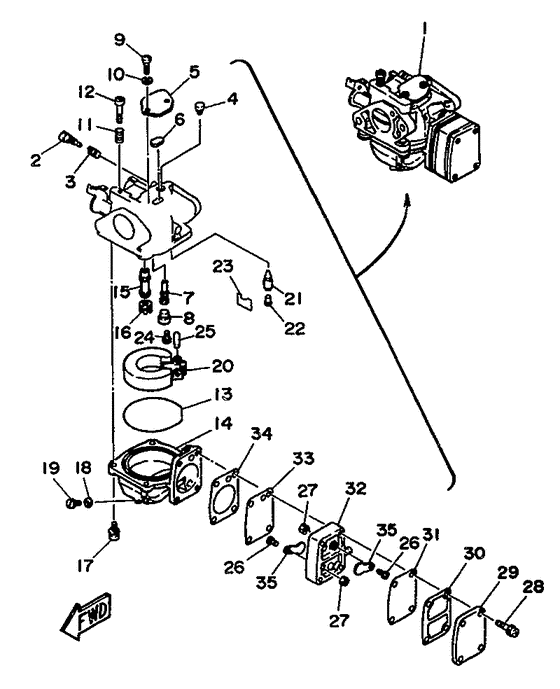

Carburetor Diagram Yamaha 8 EMS/L
- Year
- 1992
- Model
- 8C
- Model code
- 6G1
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-14301-01-00 Carburetor Assy 1Ur |
6G1-14301-01-00 |
US $327.44 |
||
| replacement | |||||
|
01
|
01
6G1-14301-04-00 Carburetor Assy 1Ur |
6G1-14301-04-00 |
US $543.82 |
||
|
01
|
01
6H6-14301-01-00 Carburetor Assy 1Ur |
6H6-14301-01-00 |
US $344.02 |
||
| replacement | |||||
|
01
|
01
6H6-14301-04-00 Carburetor Assy 1Ur |
6H6-14301-04-00 |
US $771.12 |
||
|
01
|
01
6H8-14301-01-00
Carburetor Assy 1
Ur |
6H8-14301-01-00 |
— | ||
|
02
|
02
679-14923-00-00 Screw, Pilot |
679-14923-00-00 |
US $9.21 |
||
|
03
|
03
679-14555-00-00
Spring
|
679-14555-00-00 |
— | ||
| replacement | |||||
|
03
|
03
697-14555-00-00 Spring |
697-14555-00-00 |
from US $4.95 |
||
|
04
|
04
6G1-14966-00-00 Cap |
6G1-14966-00-00 |
from US $7.37 |
||
|
05
|
05
6G1-14527-00-00 Plate |
6G1-14527-00-00 |
from US $5.81 |
||
|
06
|
06
6G1-14126-00-00 Gasket |
6G1-14126-00-00 |
from US $3.54 |
||
|
07
|
07
6G1-14948-05-00
Jet (#45)
|
6G1-14948-05-00 |
— | ||
| replacement | |||||
|
07
|
07
676-14948-05-00 Jet (#45) |
676-14948-05-00 |
from US $18.84 |
||
|
08
|
08
676-14966-00-00
Cap
|
676-14966-00-00 |
— | ||
| replacement | |||||
|
08
|
08
679-14966-00-00 Rubber Cap |
679-14966-00-00 |
from US $2.70 |
||
|
09
|
09
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
10
|
10
92903-04100-00 Washer |
92903-04100-00 |
from US $1.21 |
||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
90501-10326-00 Spring, Compression |
90501-10326-00 |
from US $3.38 |
||
|
12
|
12
663-14523-00-00 Screw, Stop |
663-14523-00-00 |
US $5.95 |
||
| replacement | |||||
|
12
|
12
63V-14523-00-00 Screw, Stop |
63V-14523-00-00 |
from US $5.95 |
||
|
13
|
13
6G1-14984-00-00 O-Ring |
6G1-14984-00-00 |
from US $11.48 |
||
|
14
|
14
6G1-14980-01-00 Body, Float Chamber |
6G1-14980-01-00 |
US $47.94 |
||
|
15
|
15
6G1-14947-00-00 Jet, NeedleUr |
6G1-14947-00-00 |
from US $28.62 |
||
|
15
|
15
6H6-14947-00-00 Jet, NeedleUr |
6H6-14947-00-00 |
from US $29.33 |
||
|
15
|
15
6H8-14947-00-00
Jet, Needle
Ur |
6H8-14947-00-00 |
— | ||
|
16
|
16
676-14943-26-00 Jet, Main (#98)Ur |
676-14943-26-00 |
from US $19.55 |
||
|
16
|
16
676-14943-27-00 Jet, Main (#100)Ur |
676-14943-27-00 |
US $25.22 |
||
|
17
|
17
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
18
|
18
6G1-14398-00-00 Washer |
6G1-14398-00-00 |
from US $1.70 |
||
|
19
|
19
6G1-14992-00-00
Screw, Drain
|
6G1-14992-00-00 |
— | ||
| replacements | |||||
|
19
|
19
65W-14992-00-00 Screw, Drain |
65W-14992-00-00 |
US $5.24 |
||
|
19
|
19
65W-14992-09-00 Screw, Drain |
65W-14992-09-00 |
US $17.01 |
||
|
20
|
20
6G1-14985-00-00 Float |
6G1-14985-00-00 |
from US $14.48 |
||
|
21
|
21
6G1-14546-00-00
Valve, Needle
|
6G1-14546-00-00 |
— | ||
| replacements | |||||
|
21
|
21
6G1-14546-01-00
Valve, Needle
|
6G1-14546-01-00 |
— | ||
|
21
|
21
6AH-14546-00-00 Valve, Needle |
6AH-14546-00-00 |
from US $19.98 |
||
|
22
|
22
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $1.70 |
||
|
23
|
23
663-14159-00-00
Clip
|
663-14159-00-00 |
— | ||
| replacement | |||||
|
23
|
23
633-14159-00-00 Clip |
633-14159-00-00 |
from US $3.38 |
||
|
24
|
24
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
25
|
25
688-14548-00-00 Pin, Float Arm |
688-14548-00-00 |
from US $2.02 |
||
|
26
|
26
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.13 |
||
|
27
|
27
95380-03600-00 Nut |
95380-03600-00 |
from US $1.56 |
||
|
28
|
28
97980-04125-00 Screw, With Washer |
97980-04125-00 |
US $20.40 |
||
|
29
|
29
6G1-24452-00-00 Cover |
6G1-24452-00-00 |
from US $21.54 |
||
|
30
|
30
6G1-24432-00-00 Gasket, Fuel Pump 2 |
6G1-24432-00-00 |
from US $5.81 |
||
|
31
|
31
6G1-24471-00-00 Diaphragm |
6G1-24471-00-00 |
from US $12.89 |
||
|
32
|
32
6G1-24412-01-00 Body 1 |
6G1-24412-01-00 |
US $20.26 |
||
| replacement | |||||
|
32
|
32
6G1-24412-02-00 Body 1 |
6G1-24412-02-00 |
US $40.61 |
||
|
33
|
33
6G1-24411-00-00 Diaphragm |
6G1-24411-00-00 |
from US $10.10 |
||
|
34
|
34
6G1-24431-01-00 Gasket, Fuel Pump 1 |
6G1-24431-01-00 |
from US $3.72 |
||
|
35
|
35
6G1-24421-00-00 Valve, Check |
6G1-24421-00-00 |
from US $5.06 |
||
