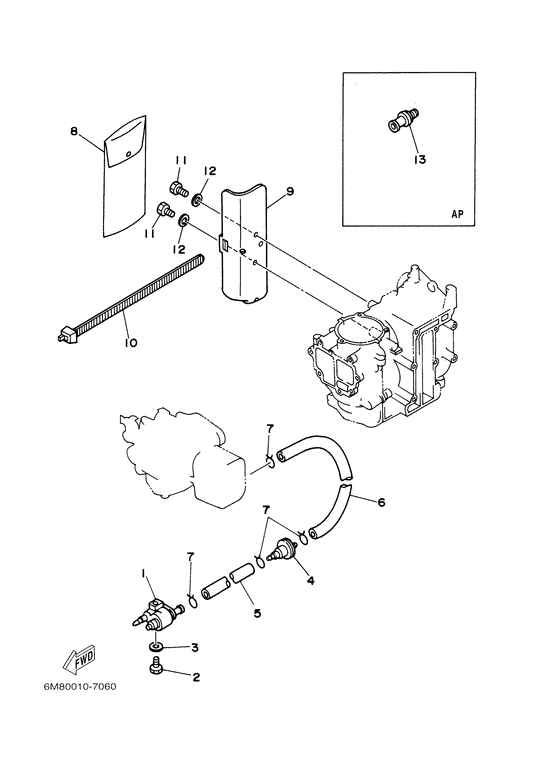

Fuel Diagram Yamaha 8 WHS/L
- Year
- 2002
- Model
- 8C
- Model code
- 6N0
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (General) (160 / 180)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
01
|
01
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
01
|
01
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.64 |
||
|
02
|
02
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
02
|
02
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
03
|
03
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
04
|
04
646-24251-02-00 Strainer 1 |
646-24251-02-00 |
from US $14.45 |
||
|
05
|
05
90445-09221-00 Hose (L205) |
90445-09221-00 |
from US $6.52 |
||
| replacements | |||||
|
05
|
05
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
|
05
|
05
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.06 |
||
|
06
|
06
904-45092-20-00
Hose (L420)
|
904-45092-20-00 |
— | ||
| replacement | |||||
|
06
|
06
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
|
07
|
07
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
08
|
08
6N0-F8100-00-00 Tool Kit |
6N0-F8100-00-00 |
from US $37.06 |
||
|
13
|
13
6L8-F8193-00-00 Plug, Water CheckAp |
6L8-F8193-00-00 |
from US $9.35 |
||
