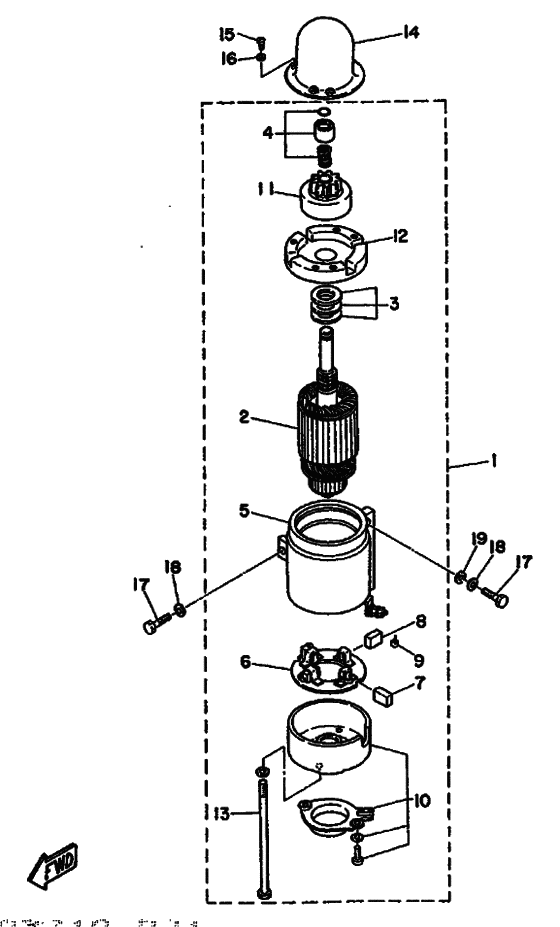

Starting motor Diagram Yamaha 85 ET(D)L/X
- Year
- 1990
- Model
- 85A
- Model code
- 688
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
668-81800-11-00
Starting Motor Assy
|
668-81800-11-00 |
— | ||
|
2
|
2
676-81850-10-00
Armature Assy
|
676-81850-10-00 |
— | ||
| replacements | |||||
|
2
|
2
676-81850-A9-00
Armature Assembly
|
676-81850-A9-00 |
— | ||
|
2
|
2
676-81850-11-00 Armature Assy |
676-81850-11-00 |
from US $524.27 |
||
|
3
|
3
676-81809-10-00 Washer Kit |
676-81809-10-00 |
from US $13.46 |
||
|
4
|
4
676-81857-10-00 Pinion Stopper Set |
676-81857-10-00 |
from US $11.80 |
||
|
5
|
5
688-81810-11-00 Stator Assy |
688-81810-11-00 |
from US $394.20 |
||
|
6
|
6
663-81840-10-00 Brush Holder Assy |
663-81840-10-00 |
US $95.61 |
||
| replacement | |||||
|
6
|
6
663-81840-11-00 Brush Holder Assy |
663-81840-11-00 |
from US $71.70 |
||
|
7
|
7
663-81811-11-00 Brush 1 |
663-81811-11-00 |
from US $13.48 |
||
|
8
|
8
633-81812-11-00
Brush 2
|
633-81812-11-00 |
— | ||
|
9
|
9
663-81813-10-00 Spring, Brush |
663-81813-10-00 |
from US $7.23 |
||
|
10
|
10
663-81820-11-00
Rear Bracket Assembly
|
663-81820-11-00 |
— | ||
|
11
|
11
663-81832-11-00 Pinion Assy |
663-81832-11-00 |
from US $283.10 |
||
|
12
|
12
668-81830-11-00
Front Bracket Assy
|
668-81830-11-00 |
— | ||
|
13
|
13
663-81826-10-00 Bolt |
663-81826-10-00 |
from US $9.35 |
||
|
14
|
14
688-81842-00-00 Cover |
688-81842-00-00 |
US $36.89 |
||
| replacement | |||||
|
14
|
14
688-81842-00-33 RECTIFIER/REG ASSY |
688-81842-00-33 |
from US $36.89 |
||
|
15
|
15
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
16
|
16
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.36 |
||
|
17
|
17
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
17
|
17
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
17
|
17
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
17
|
17
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
