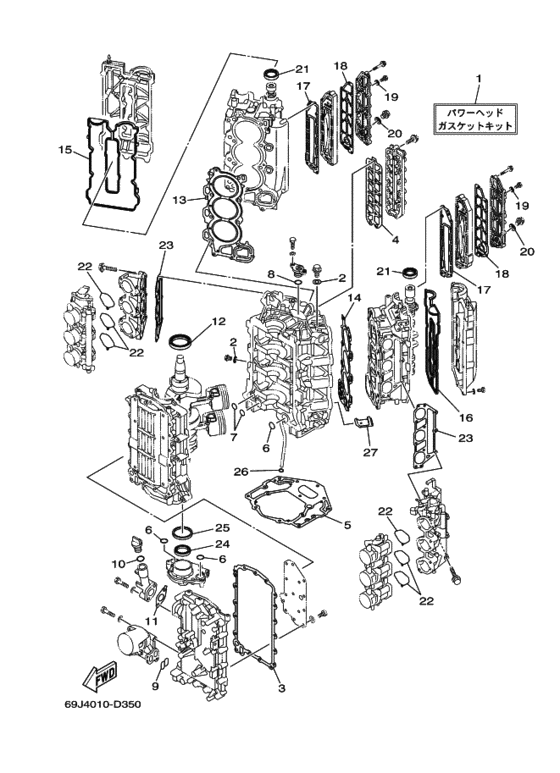

ﾘﾍﾟｱｷﾂﾄ 1 Diagram Yamaha F225 ETX
- Year
- 2005
- Model
- F225A
- Model code
- 69J
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69J-W0001-03-00 Power Head Gasket Kitパワーヘツドガスケツトキツト; |
69J-W0001-03-00 |
from US $855.36 |
||
|
2
|
2
904-30141-15-00 Gasket．ガスケツト; |
904-30141-15-00 |
from US $1.90 |
||
|
3
|
3
69J-15451-00-00 Gasket, Crankcase Cover 1．ガスケツト，クランクケースカバー; |
69J-15451-00-00 |
US $55.26 |
||
|
4
|
4
69J-1131B-00-00
Gasket, Cover
．ガスケツト，カバー; |
69J-1131B-00-00 |
— | ||
| replacement | |||||
|
4
|
4
6S1-1131B-00-00 Gasket, Cover．ガスケツト，カバー; |
6S1-1131B-00-00 |
from US $17.14 |
||
|
5
|
5
69J-11351-10-00
Gasket, Cylinder
．ガスケツト，シリンダ; |
69J-11351-10-00 |
— | ||
| replacements | |||||
|
5
|
5
69J-11351-11-00
Gasket, Cylinder
．ガスケツト，シリンダ; |
69J-11351-11-00 |
— | ||
|
5
|
5
69J-11351-12-00 GASKET, CYLINDER．ガスケツト，シリンダ; |
69J-11351-12-00 |
from US $58.52 |
||
|
6
|
6
93210-25552-00 O-Ring．Ｏ−リング; |
93210-25552-00 |
from US $4.38 |
||
|
7
|
7
93210-19MJ1-00 O-Ring．Ｏ−リング; |
93210-19MJ1-00 |
from US $1.84 |
||
|
8
|
8
93210-25647-00 O-Ring．Ｏ−リング; |
93210-25647-00 |
from US $2.02 |
||
|
9
|
9
69J-13477-00-00 Gasket．ガスケツト; |
69J-13477-00-00 |
from US $5.95 |
||
|
10
|
10
932-1024M-79-00
O-Ring
．Ｏ−リング; |
932-1024M-79-00 |
— | ||
| replacements | |||||
|
10
|
10
932-10242-35-00 O-Ring．Ｏ−リング; |
932-10242-35-00 |
from US $2.36 |
||
|
10
|
10
93210-24800-00 O-Ring．Ｏ−リング; |
93210-24800-00 |
from US $1.28 |
||
|
11
|
11
69J-15364-A0-00 Gasket, Oil Plug．ガスケツト，オイルプラグ; |
69J-15364-A0-00 |
from US $3.68 |
||
|
12
|
12
93102-63004-00 Oil Seal．オイルシール; |
93102-63004-00 |
from US $17 |
||
|
13
|
13
69J-11181-02-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
69J-11181-02-00 |
US $182.37 |
||
| replacement | |||||
|
13
|
13
69J-11181-03-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
69J-11181-03-00 |
from US $135 |
||
|
14
|
14
69J-11182-02-00 Gasket, Cylinder Head 2．ガスケツト，シリンダヘツド ２; |
69J-11182-02-00 |
US $179.61 |
||
| replacement | |||||
|
14
|
14
69J-11182-03-00 Gasket, Cylinder Head 2．ガスケツト，シリンダヘツド ２; |
69J-11182-03-00 |
from US $157.20 |
||
|
15
|
15
69J-11193-01-00 Gasket, Head Cover 1．ガスケツト，ヘツドカバー １; |
69J-11193-01-00 |
from US $41.45 |
||
|
16
|
16
69J-11194-00-00 Gasket, Head Cover 2．ガスケツト，ヘツドカバー ２; |
69J-11194-00-00 |
from US $41.86 |
||
|
17
|
17
69J-41112-01-00 Gasket, Exhaust Inner Cover．ガスケツト，エキゾーストインナカバー; |
69J-41112-01-00 |
from US $20.05 |
||
|
18
|
18
69J-41114-01-00 Gasket, Exhaust Outer Cover．ガスケツト，エキゾーストアウタカバー; |
69J-41114-01-00 |
from US $14.99 |
||
|
19
|
19
90430-08143-00 Gasket．ガスケツト; |
90430-08143-00 |
from US $1.70 |
||
|
20
|
20
90430-18130-00 Gasket．ガスケツト; |
90430-18130-00 |
from US $2.69 |
||
|
21
|
21
931-0238M-59-00
Oil Seal
．オイルシール; |
931-0238M-59-00 |
— | ||
| replacement | |||||
|
21
|
21
93102-38008-00 Oil Seal．オイルシール; |
93102-38008-00 |
from US $20.69 |
||
|
22
|
22
69J-13557-00-00 Gasket．ガスケツト; |
69J-13557-00-00 |
from US $18.56 |
||
|
23
|
23
69J-13645-00-00 Gasket, Manifold 1．ガスケツト，マニホールド １; |
69J-13645-00-00 |
from US $14.73 |
||
|
24
|
24
69J-13338-00-00 Oil Seal．オイルシール; |
69J-13338-00-00 |
from US $15.16 |
||
|
25
|
25
69J-11355-00-00 Seal, Cylinder 1．シール，シリンダ １; |
69J-11355-00-00 |
from US $25.08 |
||
|
26
|
26
93210-19MJ3-00 O-Ring．Ｏ−リング; |
93210-19MJ3-00 |
from US $7.65 |
||
|
27
|
27
69J-14664-00-00 Grommet, Water Shut．グロメツト，ウオータシヤツト; |
69J-14664-00-00 |
from US $13.20 |
||
