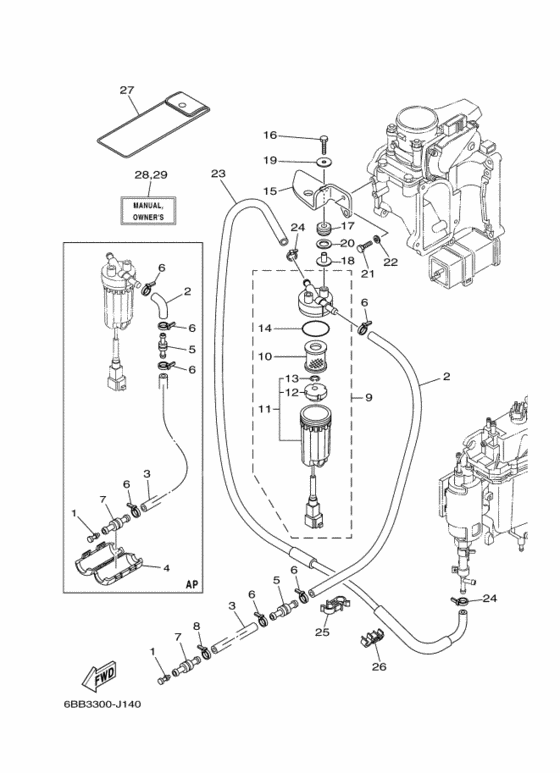

Fuel 1 Diagram Yamaha F225 ETL
- Year
- 2010
- Model
- F225C
- Model code
- 6BB
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Europe (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-85547-00-00 Damper |
689-85547-00-00 |
US $3.97 |
||
|
2
|
2
6P2-24314-00-00 Pipe 4FOR EUR |
6P2-24314-00-00 |
from US $17.71 |
||
|
2
|
2
61A-24311-00-00 Pipe, Fuel 1AP |
61A-24311-00-00 |
from US $6.80 |
||
|
3
|
3
90445-13511-00 Hose (L2000)FOR EUR |
90445-13511-00 |
from US $22.50 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
FOR EUR |
999-99999-99-00 |
— | ||
|
3
|
3
904-45130-13-00
Hose (L860)
AP |
904-45130-13-00 |
— | ||
| replacement | |||||
|
3
|
3
6P2-24314-11-00 Pipe 4AP |
6P2-24314-11-00 |
from US $64.80 |
||
|
4
|
4
68V-24452-00-00 CoverAP |
68V-24452-00-00 |
from US $5.38 |
||
|
5
|
5
6R3-24377-10-00 Pipe, Joint 2 |
6R3-24377-10-00 |
from US $5.24 |
||
|
6
|
6
904-6511M-10-00
Clamp
FOR EUR |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
6
|
6
80L-26397-00-00 BandFOR EUR |
80L-26397-00-00 |
from US $1.21 |
||
|
6
|
6
904-65100-98-00 ClampFOR EUR |
904-65100-98-00 |
from US $1.34 |
||
|
7
|
7
6R3-24377-00-00 Pipe, Joint 2FOR EUR |
6R3-24377-00-00 |
from US $5.24 |
||
|
7
|
7
6R3-24377-10-00 Pipe, Joint 2AP |
6R3-24377-10-00 |
from US $5.24 |
||
|
8
|
8
904-6511M-10-00
Clamp
FOR EUR |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
8
|
8
80L-26397-00-00 BandFOR EUR |
80L-26397-00-00 |
from US $1.21 |
||
|
8
|
8
904-65100-98-00 ClampFOR EUR |
904-65100-98-00 |
from US $1.34 |
||
|
9
|
9
6P3-24560-01-00 Filter Assy |
6P3-24560-01-00 |
US $117.99 |
||
| replacements | |||||
|
9
|
9
6P3-24560-03-00 Filter Assy |
6P3-24560-03-00 |
US $117.99 |
||
|
9
|
9
6P3-24560-04-00 FILTER ASSY |
6P3-24560-04-00 |
from US $117.99 |
||
|
10
|
10
6P3-24563-00-00
Element, Filter
|
6P3-24563-00-00 |
— | ||
| replacements | |||||
|
10
|
10
6P3-WS24A-01-00 Element, Filter |
6P3-WS24A-01-00 |
US $20.12 |
||
|
10
|
10
6P3-WS24A-02-00 ELEMENT, FILTER, WITH TAG |
6P3-WS24A-02-00 |
from US $20.12 |
||
|
11
|
11
6P3-24562-01-00 Cup, Filter |
6P3-24562-01-00 |
US $90.49 |
||
| replacement | |||||
|
11
|
11
6P3-WS24B-03-00 Cup, Filter (With Tag) |
6P3-WS24B-03-00 |
from US $90.49 |
||
|
12
|
12
6P3-24469-00-00 Float, Water Level |
6P3-24469-00-00 |
from US $2.98 |
||
|
13
|
13
6P3-24519-00-00 Clip |
6P3-24519-00-00 |
from US $1.35 |
||
|
14
|
14
6P3-24564-00-00 Gasket |
6P3-24564-00-00 |
from US $12.33 |
||
|
15
|
15
6BB-24566-00-00 Bracket, Filter |
6BB-24566-00-00 |
from US $68.35 |
||
|
16
|
16
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
16
|
16
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
17
|
17
69L-85516-00-00 Spacer |
69L-85516-00-00 |
from US $3.54 |
||
|
18
|
18
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
19
|
19
902-01061-01-00 Washer, Plate |
902-01061-01-00 |
US $4.14 |
||
|
20
|
20
90201-15021-00 Washer, Plate |
90201-15021-00 |
US $6.21 |
||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
22
|
22
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
6P2-24313-10-00 Pipe 3 |
6P2-24313-10-00 |
US $26.92 |
||
| replacement | |||||
|
23
|
23
6P2-24313-20-00 PIPE 5 |
6P2-24313-20-00 |
from US $35.55 |
||
|
24
|
24
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
24
|
24
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
24
|
24
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
25
|
25
90464-12009-00 Clamp |
90464-12009-00 |
from US $3.12 |
||
|
26
|
26
90464-12010-00 Clamp |
90464-12010-00 |
from US $3.12 |
||
|
27
|
27
69J-28100-01-00 Tool Kit |
69J-28100-01-00 |
US $60.79 |
||
|
28
|
28
6P2-28199-76-E0
Manual,owner's
UR (E) |
6P2-28199-76-E0 |
— | ||
|
28
|
28
6P2-28199-76-F0
Manual,owner's
UR (F) |
6P2-28199-76-F0 |
— | ||
|
28
|
28
6P2-28199-76-S0
Manual,owner's
UR (ES) |
6P2-28199-76-S0 |
— | ||
|
28
|
28
6P2-28199-76-G0
Manual,owner's
UR (D) |
6P2-28199-76-G0 |
— | ||
|
28
|
28
6P2-28199-76-D0
Manual,owner's
UR (NL) |
6P2-28199-76-D0 |
— | ||
|
28
|
28
6P2-28199-76-H0
Manual,owner's
UR (I) |
6P2-28199-76-H0 |
— | ||
|
29
|
29
6P2-28199-86-K0
Manual,owner's
UR (DK) |
6P2-28199-86-K0 |
— | ||
|
29
|
29
6P2-28199-86-R0
Manual,owner's
UR (GR) |
6P2-28199-86-R0 |
— | ||
|
29
|
29
6P2-28199-86-P0
Manual,owner's
UR (P) |
6P2-28199-86-P0 |
— | ||
|
29
|
29
6P2-28199-86-N0
Manual,owner's
UR (N) |
6P2-28199-86-N0 |
— | ||
|
29
|
29
6P2-28199-86-M0
Manual,owner's
UR (S) |
6P2-28199-86-M0 |
— | ||
|
29
|
29
6P2-28199-86-L0
Manual,owner's
UR (SF) |
6P2-28199-86-L0 |
— | ||
