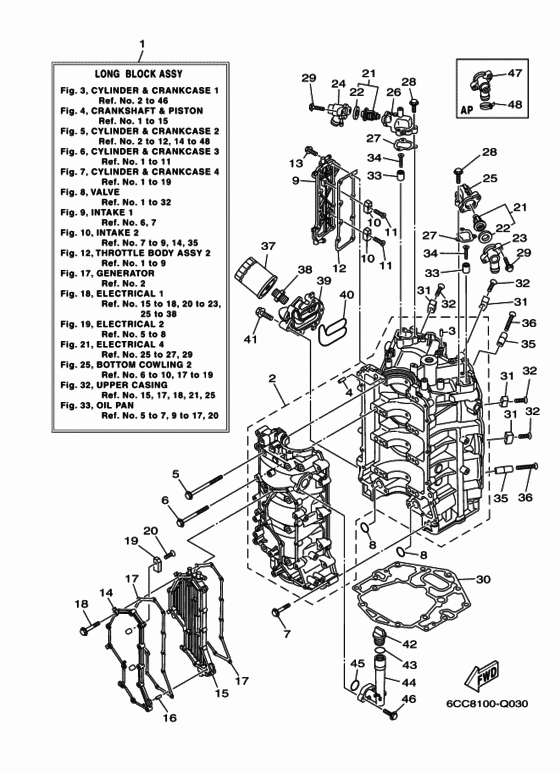

Cylinder & crankcase 1 Diagram Yamaha F225 ETL
- Year
- 2016
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC8
- Year
- 2016
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (050)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-11000-01-00 LONG BLOCK ASSY |
6CB-11000-01-00 |
US $16,086.93 |
||
| replacements | |||||
|
1
|
1
6CB-11000-02-00 Long Block Assy |
6CB-11000-02-00 |
US $15,668.40 |
||
|
1
|
1
6CB-11000-03-00 Long Block Assy |
6CB-11000-03-00 |
US $15,668.40 |
||
|
2
|
2
6CB-15100-10-00 Crankcase Assy |
6CB-15100-10-00 |
US $5,570.40 |
||
| replacement | |||||
|
2
|
2
99999-04119-00 Crankcase & Plate Set |
99999-04119-00 |
from US $5,568.95 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
4
|
4
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
5
|
5
6CB-15187-00-00 Bolt |
6CB-15187-00-00 |
from US $9.49 |
||
|
6
|
6
6CB-15481-00-00 Bolt 1 |
6CB-15481-00-00 |
from US $8.78 |
||
|
7
|
7
90105-08175-00 Bolt, Flange |
90105-08175-00 |
from US $3.54 |
||
|
8
|
8
93210-26658-00 O-Ring |
93210-26658-00 |
from US $1.84 |
||
|
9
|
9
6CB-1131C-00-00 Cover, Joint |
6CB-1131C-00-00 |
from US $77.51 |
||
|
10
|
10
63P-11325-01-00 Anode |
63P-11325-01-00 |
from US $7.51 |
||
|
11
|
11
90151-06M02-00 Screw, Countersunk |
90151-06M02-00 |
from US $1.66 |
||
|
12
|
12
6CB-1131B-00-00 Gasket, Cover |
6CB-1131B-00-00 |
US $14.17 |
||
|
13
|
13
90105-06M07-00 Bolt, Flange |
90105-06M07-00 |
from US $2.16 |
||
|
14
|
14
6CB-15411-00-00 Cover, Crankcase 1 |
6CB-15411-00-00 |
from US $120.06 |
||
|
15
|
15
6CB-15421-10-00 Cover, Crankcase 2 |
6CB-15421-10-00 |
from US $153.36 |
||
|
16
|
16
91690-40010-00 Pin, Spring |
91690-40010-00 |
from US $3.12 |
||
|
17
|
17
6CB-15451-00-00 Gasket, Crankcase Cover 1 |
6CB-15451-00-00 |
US $29.75 |
||
| replacement | |||||
|
17
|
17
6CB-15451-01-00 Gasket, Crankcase Co |
6CB-15451-01-00 |
from US $29.75 |
||
|
18
|
18
90105-06151-00 Bolt, Flange |
90105-06151-00 |
from US $2.13 |
||
|
19
|
19
63P-11325-01-00 Anode |
63P-11325-01-00 |
from US $7.51 |
||
|
20
|
20
90151-06M02-00 Screw, Countersunk |
90151-06M02-00 |
from US $1.66 |
||
|
21
|
21
6CB-12411-10-00 Thermostat |
6CB-12411-10-00 |
from US $85.66 |
||
|
22
|
22
67F-12412-00-00 Seal, Thermostat |
67F-12412-00-00 |
from US $4.68 |
||
|
23
|
23
6CE-12413-B0-9S Cover, Thermostat |
6CE-12413-B0-9S |
from US $40.34 |
||
|
24
|
24
6CE-12413-A0-9S Cover, Thermostat |
6CE-12413-A0-9S |
from US $49.32 |
||
|
25
|
25
6CB-12422-10-9S Cover, Housing |
6CB-12422-10-9S |
from US $62.17 |
||
|
26
|
26
6CB-12422-20-9S Cover, Housing |
6CB-12422-20-9S |
from US $62.17 |
||
|
27
|
27
6CB-12427-10-00 Gasket, Housing Cover 1 |
6CB-12427-10-00 |
US $3.68 |
||
|
28
|
28
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.98 |
||
|
29
|
29
90105-06037-00 Bolt, Flange |
90105-06037-00 |
from US $1.70 |
||
|
30
|
30
6CB-11351-00-00 Gasket, Cylinder |
6CB-11351-00-00 |
US $87.73 |
||
|
31
|
31
6AW-1132P-00-00 Anode 5 |
6AW-1132P-00-00 |
from US $11.62 |
||
|
32
|
32
98780-06530-00 Screw, Flat Head |
98780-06530-00 |
from US $2.66 |
||
|
33
|
33
68T-11325-00-00 Anode |
68T-11325-00-00 |
from US $2.83 |
||
|
34
|
34
90151-05M05-00 Screw, Countersunk |
90151-05M05-00 |
from US $1.84 |
||
|
35
|
35
6AW-1132N-01-00 Anode 4 |
6AW-1132N-01-00 |
from US $10.91 |
||
|
36
|
36
987-80065-50-00 Screw, Flat Head |
987-80065-50-00 |
from US $2 |
||
|
37
|
37
N26-13440-02-00
Element Assy, Oil Cleaner
|
N26-13440-02-00 |
— | ||
| replacement | |||||
|
37
|
37
N26-13440-03-00 Element Assy, Oil Cleaner |
N26-13440-03-00 |
from US $22.95 |
||
|
38
|
38
90401-19001-00 Bolt, Union |
90401-19001-00 |
from US $18.99 |
||
|
39
|
39
6CB-13446-00-00 Connector |
6CB-13446-00-00 |
from US $95.47 |
||
|
40
|
40
6CB-13477-00-00 Gasket |
6CB-13477-00-00 |
from US $10.34 |
||
|
41
|
41
90105-06151-00 Bolt, Flange |
90105-06151-00 |
from US $2.13 |
||
|
42
|
42
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $4.64 |
||
|
43
|
43
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
43
|
43
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.98 |
||
|
43
|
43
93210-24800-00 O-Ring |
93210-24800-00 |
from US $1.28 |
||
|
44
|
44
6CB-15319-00-00 Joint |
6CB-15319-00-00 |
from US $45.32 |
||
|
45
|
45
932-10273-70-00
O-Ring
|
932-10273-70-00 |
— | ||
| replacement | |||||
|
45
|
45
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.64 |
||
|
46
|
46
90105-06037-00 Bolt, Flange |
90105-06037-00 |
from US $1.70 |
||
|
47
|
47
6CE-12413-C0-9S Cover, ThermostatAP WATER TEMP SENSOR |
6CE-12413-C0-9S |
from US $40.34 |
||
|
48
|
48
90465-11M59-00 ClampAP WATER TEMP SENSOR |
90465-11M59-00 |
from US $1.98 |
||
