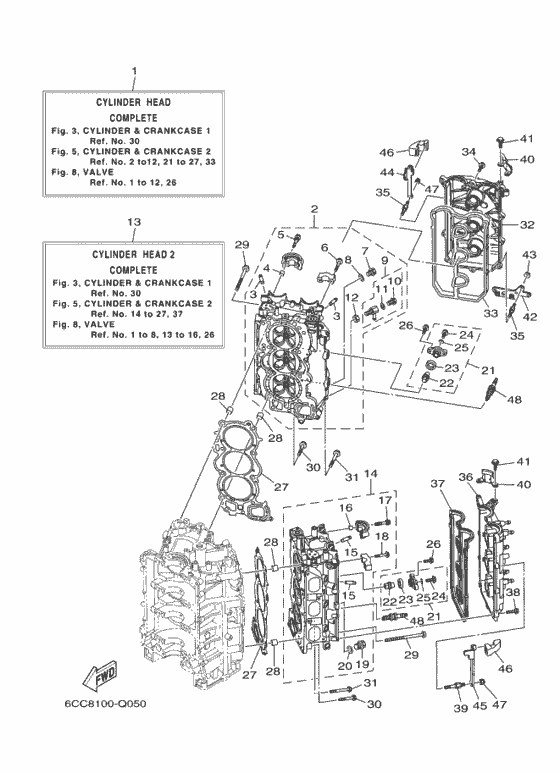

Cylinder & crankcase 2 Diagram Yamaha F225 ETL
- Year
- 2016
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC8
- Year
- 2016
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (050)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-W009A-02-00 Cylinder Head Comp |
6CB-W009A-02-00 |
US $3,405.60 |
||
| replacement | |||||
|
1
|
1
6CB-W009A-04-00 Cylinder Head Comp |
6CB-W009A-04-00 |
from US $3,405.60 |
||
|
2
|
2
6CB-11110-11-00 Cylinder Head Assy |
6CB-11110-11-00 |
US $2,032.80 |
||
| replacement | |||||
|
2
|
2
6CB-11110-12-00 CYLINDER HEAD ASSY |
6CB-11110-12-00 |
from US $2,032.80 |
||
|
3
|
3
6S5-11133-10-00 Guide, Valve 1 |
6S5-11133-10-00 |
from US $33.44 |
||
|
4
|
4
91809-08006-00 Pin, Dowel |
91809-08006-00 |
from US $1.84 |
||
|
5
|
5
90119-07001-00 Bolt, With Washer |
90119-07001-00 |
from US $10.63 |
||
|
6
|
6
90119-07234-00 Bolt, With Washer |
90119-07234-00 |
from US $1.84 |
||
|
7
|
7
90340-18M09-00 Plug, Straight Screw |
90340-18M09-00 |
from US $30.04 |
||
|
8
|
8
90201-186F1-00 Washer, Plate |
90201-186F1-00 |
from US $1.84 |
||
|
9
|
9
6CB-83609-00-00 Connector Assy |
6CB-83609-00-00 |
from US $96.16 |
||
|
10
|
10
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.09 |
||
|
11
|
11
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
12
|
12
95380-14700-00 Nut |
95380-14700-00 |
from US $7.79 |
||
|
13
|
13
6CB-W009C-02-00 Cylinder Head 2 Co |
6CB-W009C-02-00 |
US $3,405.60 |
||
| replacement | |||||
|
13
|
13
6CB-W009C-04-00 Cylinder Head 2 Co |
6CB-W009C-04-00 |
from US $3,405.60 |
||
|
14
|
14
6CB-11120-11-00 CYLINDER HEAD ASSY 2 |
6CB-11120-11-00 |
US $2,072.40 |
||
| replacement | |||||
|
14
|
14
6CB-11120-12-00 CYLINDER HEAD ASSY 2 |
6CB-11120-12-00 |
from US $2,072.40 |
||
|
15
|
15
6S5-11133-10-00 Guide, Valve 1 |
6S5-11133-10-00 |
from US $33.44 |
||
|
16
|
16
91809-08006-00 Pin, Dowel |
91809-08006-00 |
from US $1.84 |
||
|
17
|
17
90119-07001-00 Bolt, With Washer |
90119-07001-00 |
from US $10.63 |
||
|
18
|
18
90119-07234-00 Bolt, With Washer |
90119-07234-00 |
from US $1.84 |
||
|
19
|
19
90340-18M09-00 Plug, Straight Screw |
90340-18M09-00 |
from US $30.04 |
||
|
20
|
20
90201-186F1-00 Washer, Plate |
90201-186F1-00 |
from US $1.84 |
||
|
21
|
21
67F-11301-00-00 Anode Cover Assy |
67F-11301-00-00 |
US $18.70 |
||
|
22
|
22
67F-11325-01-00 Anode |
67F-11325-01-00 |
from US $11.05 |
||
|
23
|
23
67F-11328-00-00
Grommet, Anode
|
67F-11328-00-00 |
— | ||
| replacement | |||||
|
23
|
23
67F-11328-01-00 GROMMET ANODE |
67F-11328-01-00 |
from US $2.27 |
||
|
24
|
24
90105-06M07-00 Bolt, Flange |
90105-06M07-00 |
from US $2.16 |
||
|
25
|
25
90430-06M03-00 Gasket |
90430-06M03-00 |
from US $1.34 |
||
|
26
|
26
958-95080-25-00 Bolt, Flange |
958-95080-25-00 |
US $1.42 |
||
| replacement | |||||
|
26
|
26
95D95-08025-00 Bolt, Flange Deep Recess |
95D95-08025-00 |
from US $1.42 |
||
|
27
|
27
6CB-11181-00-00 Gasket, Cylinder Head 1 |
6CB-11181-00-00 |
from US $140.92 |
||
|
28
|
28
90387-11005-00 Collar |
90387-11005-00 |
from US $6.52 |
||
|
29
|
29
901-55110-02-00 Screw, Flat Fillister |
901-55110-02-00 |
US $8.53 |
||
| replacement | |||||
|
29
|
29
90149-11001-00 Screw |
90149-11001-00 |
from US $8.78 |
||
|
30
|
30
90105-08175-00 Bolt, Flange |
90105-08175-00 |
from US $3.54 |
||
|
31
|
31
901-05082-20-00 Bolt, Flange |
901-05082-20-00 |
from US $4.96 |
||
|
32
|
32
6CB-11191-02-00 Cover, Cylinder Head 1 |
6CB-11191-02-00 |
from US $188.12 |
||
|
33
|
33
6CB-11193-00-00 Gasket, Head Cover 1 |
6CB-11193-00-00 |
from US $33.15 |
||
|
34
|
34
95895-06030-00 Bolt, Flange |
95895-06030-00 |
US $2.13 |
||
|
35
|
35
901-09062-77-00 Bolt |
901-09062-77-00 |
from US $16.29 |
||
|
36
|
36
6CB-11192-02-00 Cover, Cylinder Head 2 |
6CB-11192-02-00 |
from US $190.66 |
||
|
37
|
37
6CB-11194-00-00 Gasket, Head Cover 2 |
6CB-11194-00-00 |
from US $33.15 |
||
|
38
|
38
95895-06030-00 Bolt, Flange |
95895-06030-00 |
US $2.13 |
||
|
39
|
39
901-09062-77-00 Bolt |
901-09062-77-00 |
from US $16.29 |
||
|
40
|
40
6AW-15142-00-00 Guide 1 |
6AW-15142-00-00 |
from US $19.27 |
||
|
41
|
41
95895-06014-00 Bolt, Flange |
95895-06014-00 |
US $1.56 |
||
| replacements | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
95D95-06014-00 Bolt, Flange Deep Re |
95D95-06014-00 |
from US $1.07 |
||
|
42
|
42
6CB-2134V-00-00 Bracket |
6CB-2134V-00-00 |
from US $37.86 |
||
|
43
|
43
90179-06M28-00 Nut |
90179-06M28-00 |
from US $1.34 |
||
|
44
|
44
6CB-11998-00-00 Bracket 1 |
6CB-11998-00-00 |
US $31.17 |
||
|
45
|
45
6CB-11999-00-00 Bracket 2 |
6CB-11999-00-00 |
US $33.58 |
||
|
46
|
46
6CB-42662-00-00 Damper |
6CB-42662-00-00 |
US $7.08 |
||
|
47
|
47
90185-06M07-00 Nut, Self-Locking |
90185-06M07-00 |
from US $3.26 |
||
|
48
|
48
947-02004-00-00 Plug, Spark (Ngk Lfr6A-11) |
947-02004-00-00 |
from US $7.82 |
||
| replacement | |||||
|
48
|
48
LFR-6A110-00-00 Plug, Spark (Ngk Lfr6A-11) |
LFR-6A110-00-00 |
US $48.60 |
||
