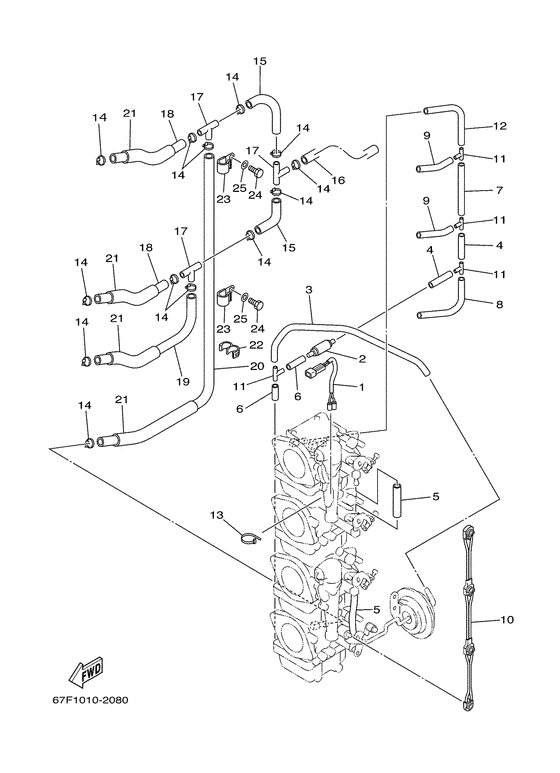

Carburetor 2 Diagram Yamaha F80 ETL/X
- Year
- 2007
- Model
- F80A
- Model code
- 67G
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- Switzerland (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67F-1412A-00-00 Wire Harness Assy |
67F-1412A-00-00 |
from US $72.67 |
||
|
02
|
02
67F-13183-00-00 Valve, Check |
67F-13183-00-00 |
from US $31.45 |
||
|
03
|
03
67F-14349-00-00 Pipe |
67F-14349-00-00 |
from US $8.93 |
||
|
04
|
04
67F-14349-10-00 Pipe |
67F-14349-10-00 |
from US $1.70 |
||
|
05
|
05
67F-14349-20-00 Pipe |
67F-14349-20-00 |
from US $5.95 |
||
|
06
|
06
67F-14349-30-00 Pipe |
67F-14349-30-00 |
from US $1.70 |
||
|
07
|
07
67F-14349-40-00 Pipe |
67F-14349-40-00 |
from US $3.83 |
||
|
08
|
08
67F-14349-50-00 Pipe |
67F-14349-50-00 |
from US $4.82 |
||
|
09
|
09
67F-14349-60-00 Pipe |
67F-14349-60-00 |
from US $3.26 |
||
|
10
|
10
67F-14585-00-00 Rod, Choke |
67F-14585-00-00 |
from US $31.45 |
||
|
11
|
11
67F-14189-00-00 Connector |
67F-14189-00-00 |
from US $5.67 |
||
|
12
|
12
67F-14349-70-00 Pipe |
67F-14349-70-00 |
from US $5.67 |
||
|
13
|
13
90465-11M59-00 Clamp |
90465-11M59-00 |
from US $1.98 |
||
|
14
|
14
68F-24356-00-00 Clip, Pipe 1 |
68F-24356-00-00 |
from US $3.98 |
||
| replacement | |||||
|
14
|
14
3TJ-14937-40-00 Clip |
3TJ-14937-40-00 |
from US $4.39 |
||
|
15
|
15
60C-14294-00-00 Hose |
60C-14294-00-00 |
from US $20.69 |
||
|
16
|
16
60C-14298-00-00 Pipe |
60C-14298-00-00 |
from US $24.09 |
||
|
17
|
17
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.94 |
||
|
18
|
18
90445-10M16-00 Hose (L120) |
90445-10M16-00 |
US $6.38 |
||
| replacement | |||||
|
18
|
18
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.38 |
||
|
19
|
19
90445-10MG6-00 Hose (L180) |
90445-10MG6-00 |
from US $3.68 |
||
| replacement | |||||
|
19
|
19
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $3.68 |
||
|
20
|
20
90445-10MG7-00 Hose (L350) |
90445-10MG7-00 |
US $8.50 |
||
| replacement | |||||
|
20
|
20
904-45100-53-00 Hose (L350) |
904-45100-53-00 |
US $21.17 |
||
|
21
|
21
90445-16M07-00 Hose (L80) |
90445-16M07-00 |
from US $4.68 |
||
|
22
|
22
90464-10M57-00 Clamp |
90464-10M57-00 |
from US $3.83 |
||
|
23
|
23
90465-08M83-00 Clamp |
90465-08M83-00 |
from US $7.51 |
||
|
24
|
24
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
24
|
24
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
25
|
25
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
