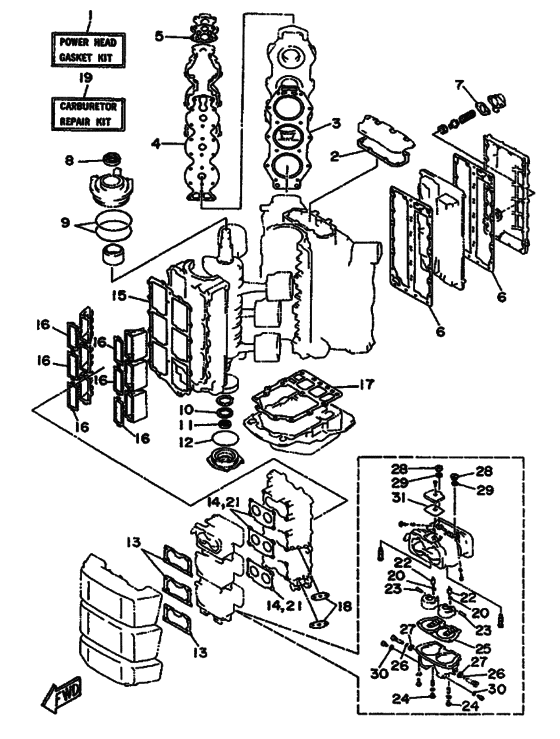

Kits de reparation 1 Diagram Yamaha L150 ETOL/XL
- Year
- 1994
- Model
- L150C
- Model code
- 6R0
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R3-W0001-03-00 Gasket Kit |
6R3-W0001-03-00 |
US $526.09 |
||
| replacement | |||||
|
1
|
1
6R3-W0001-A3-00 Gasket Kit, Power Unit |
6R3-W0001-A3-00 |
from US $526.09 |
||
|
2
|
2
6E5-11381-A1-00 Gasket 1 |
6E5-11381-A1-00 |
US $10.20 |
||
| replacement | |||||
|
2
|
2
6E5-11381-A2-00 Gasket 1 |
6E5-11381-A2-00 |
from US $7.76 |
||
|
3
|
3
6G5-11181-A0-00 Gasket, Cylinder Head 1 |
6G5-11181-A0-00 |
US $84.42 |
||
| replacement | |||||
|
3
|
3
6G5-11181-A3-00 Gasket, Cylinder Head 1 |
6G5-11181-A3-00 |
from US $54.54 |
||
|
4
|
4
6G5-11193-A1-00 Gasket, Head Cover 1 |
6G5-11193-A1-00 |
US $34.29 |
||
| replacement | |||||
|
4
|
4
6G5-11193-A2-00 Gasket, Head Cover 1 |
6G5-11193-A2-00 |
from US $29.30 |
||
|
5
|
5
688-12414-A1-00 Gasket, Cover |
688-12414-A1-00 |
from US $2.70 |
||
|
6
|
6
6G5-41112-A1-00 Gasket, Exhaust Inner Cover |
6G5-41112-A1-00 |
from US $20.26 |
||
|
7
|
7
6G5-11382-A1-00 Gasket 2 |
6G5-11382-A1-00 |
from US $1.70 |
||
|
8
|
8
93102-40M38-00 Oil Seal |
93102-40M38-00 |
from US $22.39 |
||
|
9
|
9
93211-04384-00 O-Ring (705) |
93211-04384-00 |
from US $4.38 |
||
|
10
|
10
93102-35M13-00 Oil Seal |
93102-35M13-00 |
from US $14.82 |
||
|
11
|
11
93101-22M15-00 Oil Seal |
93101-22M15-00 |
from US $6.06 |
||
|
12
|
12
93210-74M35-00 O-Ring |
93210-74M35-00 |
from US $6.74 |
||
|
13
|
13
6K7-14483-00-00 Gasket |
6K7-14483-00-00 |
from US $1.70 |
||
|
14
|
14
6E5-14198-A1-00 Gasket |
6E5-14198-A1-00 |
US $7.65 |
||
| replacement | |||||
|
14
|
14
6E5-14198-A2-00 Gasket |
6E5-14198-A2-00 |
from US $6.40 |
||
|
15
|
15
6G5-13645-A1-00 Gasket, Manifold 1 |
6G5-13645-A1-00 |
US $17.85 |
||
| replacement | |||||
|
15
|
15
6G5-13645-A2-00 Gasket, Manifold 1 |
6G5-13645-A2-00 |
from US $17.85 |
||
|
16
|
16
6E5-13621-A1-00 Gasket, Valve Seat |
6E5-13621-A1-00 |
from US $2.70 |
||
|
17
|
17
6G5-45113-A0-00 Gasket, Upper Casing |
6G5-45113-A0-00 |
US $63.14 |
||
| replacement | |||||
|
17
|
17
6G5-45113-A2-00 Gasket, Upper Casing |
6G5-45113-A2-00 |
from US $48.82 |
||
|
18
|
18
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.36 |
||
|
19
|
19
6E5-W0093-06-00 Carburetor Repair Kit |
6E5-W0093-06-00 |
from US $91.22 |
||
|
20
|
20
6E5-14159-00-00 Clip |
6E5-14159-00-00 |
from US $5.06 |
||
|
21
|
21
6E5-14198-A1-00 Gasket |
6E5-14198-A1-00 |
US $7.65 |
||
| replacement | |||||
|
21
|
21
6E5-14198-A2-00 Gasket |
6E5-14198-A2-00 |
from US $6.40 |
||
|
22
|
22
6E5-14546-00-00 Valve, Needle |
6E5-14546-00-00 |
from US $15.16 |
||
|
23
|
23
6E5-14386-02-00 Pin, Float |
6E5-14386-02-00 |
from US $2.36 |
||
|
24
|
24
6E5-14394-00-00
Valve, Drain
|
6E5-14394-00-00 |
— | ||
|
25
|
25
6E5-14384-03-00 Gasket, Float Chamber |
6E5-14384-03-00 |
from US $12.89 |
||
|
26
|
26
6E5-14997-00-00 Seal |
6E5-14997-00-00 |
from US $10.63 |
||
|
27
|
27
6E5-14398-01-00 Gasket |
6E5-14398-01-00 |
from US $2.69 |
||
|
28
|
28
6E5-14328-01-00 Plug |
6E5-14328-01-00 |
from US $17.57 |
||
|
29
|
29
6E5-14979-00-00 Gasket |
6E5-14979-00-00 |
from US $3.12 |
||
|
30
|
30
6J8-14995-00-00 Gasket |
6J8-14995-00-00 |
from US $2.41 |
||
|
31
|
31
6E5-14959-00-00 Gasket |
6E5-14959-00-00 |
US $5.53 |
||
| replacement | |||||
|
31
|
31
6E5-14959-01-00 Gasket |
6E5-14959-01-00 |
from US $5.53 |
||
