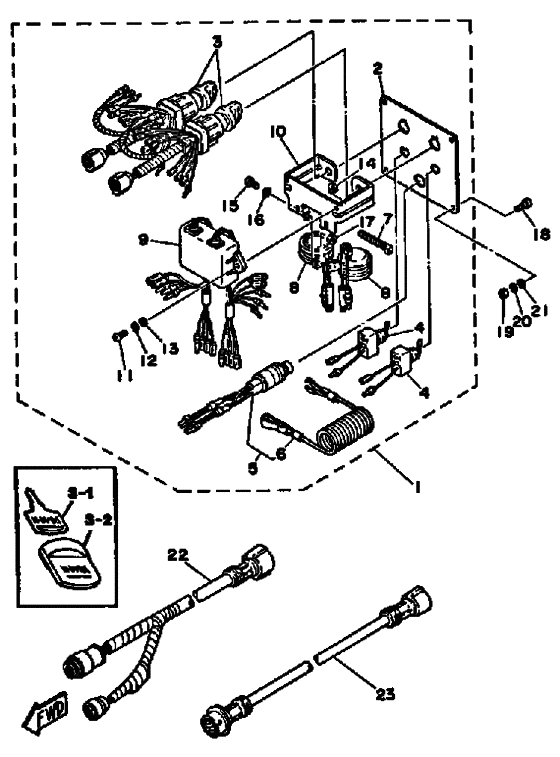

Optional parts rigging accessories-component parts Diagram Yamaha L150 ETX
- Year
- 1986
- Model
- L150
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
908-90559-57-00
Key #111
#111 |
908-90559-57-00 |
— | ||
|
1
|
1
908-90559-58-00
Key #112
#112 |
908-90559-58-00 |
— | ||
|
1
|
1
908-90559-59-00
Key #113
#113 |
908-90559-59-00 |
— | ||
|
1
|
1
908-90559-60-00
Key #121
#121 |
908-90559-60-00 |
— | ||
|
1
|
1
908-90559-61-00
Key #122
#122 |
908-90559-61-00 |
— | ||
|
1
|
1
908-90559-62-00
Key #123
#123 |
908-90559-62-00 |
— | ||
|
1
|
1
908-90558-20-00 Key #451#451 |
908-90558-20-00 |
US $17.21 |
||
|
1
|
1
6K1-82570-02-00 Panel Switch Assembly |
6K1-82570-02-00 |
US $1,199.88 |
||
| replacements | |||||
|
1
|
1
6K1-82570-13-00 Panel Switch Assy |
6K1-82570-13-00 |
US $1,199.88 |
||
|
1
|
1
6K1-82570-15-00 PANEL SWITCH ASSY |
6K1-82570-15-00 |
from US $416 |
||
|
2
|
2
676-82577-00-00
Cap, Key
|
676-82577-00-00 |
— | ||
| replacement | |||||
|
2
|
2
676-82577-01-00 Cap, Key |
676-82577-01-00 |
from US $4.82 |
||
|
2
|
2
6K1-82571-00-00 Panel, Switch |
6K1-82571-00-00 |
US $55.68 |
||
| replacements | |||||
|
2
|
2
6K1-82571-02-00 Plate, Panel Switch |
6K1-82571-02-00 |
from US $55.68 |
||
|
2
|
2
704-82571-02-00 Panel, Switch |
704-82571-02-00 |
from US $54.99 |
||
|
3
|
3
61B-82510-00-00 Main Switch Assy |
61B-82510-00-00 |
US $98.37 |
||
| replacements | |||||
|
3
|
3
61B-82510-02-00 Main Switch Assy |
61B-82510-02-00 |
US $98.37 |
||
|
3
|
3
61B-82510-03-00 MAIN SWITCH ASSY |
61B-82510-03-00 |
from US $98.37 |
||
|
4
|
4
6K1-82574-00-00 Switch, Choke |
6K1-82574-00-00 |
from US $51.40 |
||
|
5
|
5
6K1-82575-00-00 Engine Stop Switch A |
6K1-82575-00-00 |
US $62.72 |
||
| replacement | |||||
|
5
|
5
6K1-82575-01-00 Engine Stop Switch Assy |
6K1-82575-01-00 |
from US $62.72 |
||
|
6
|
6
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
7
|
7
704-82581-00-00
Stay, Cord Clamp
|
704-82581-00-00 |
— | ||
|
8
|
8
688-83383-11-00 Buzzer |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
8
|
8
688-83383-12-00 Buzzer |
688-83383-12-00 |
from US $54.99 |
||
|
9
|
9
6K1-85830-01-00 Control Unit Assy |
6K1-85830-01-00 |
US $491.04 |
||
| replacements | |||||
|
9
|
9
6K1-85830-02-00 Control Unit Assy |
6K1-85830-02-00 |
US $491.04 |
||
|
9
|
9
6K1-85830-03-00 Control Unit Assy |
6K1-85830-03-00 |
from US $491.04 |
||
|
10
|
10
6K1-83614-00-00
Bracket
|
6K1-83614-00-00 |
— | ||
|
11
|
11
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
11
|
11
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
18
|
18
90149-05M05-00 Screw |
90149-05M05-00 |
from US $1.84 |
||
|
19
|
19
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
20
|
20
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
21
|
21
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
22
|
22
6K1-8258A-40-00 Extension, Wire Harness (8M)8M |
6K1-8258A-40-00 |
US $207.24 |
||
| replacement | |||||
|
22
|
22
6K1-8258A-41-00 EXTENSION WIRE HARNESS8M |
6K1-8258A-41-00 |
from US $207.24 |
||
|
23
|
23
688-8258A-10-00 Extension, Wire Harness (2M)2M |
688-8258A-10-00 |
from US $127.58 |
||
|
23
|
23
688-8258A-30-00 Extension, Wire Harness (3M)3M |
688-8258A-30-00 |
from US $143.78 |
||
