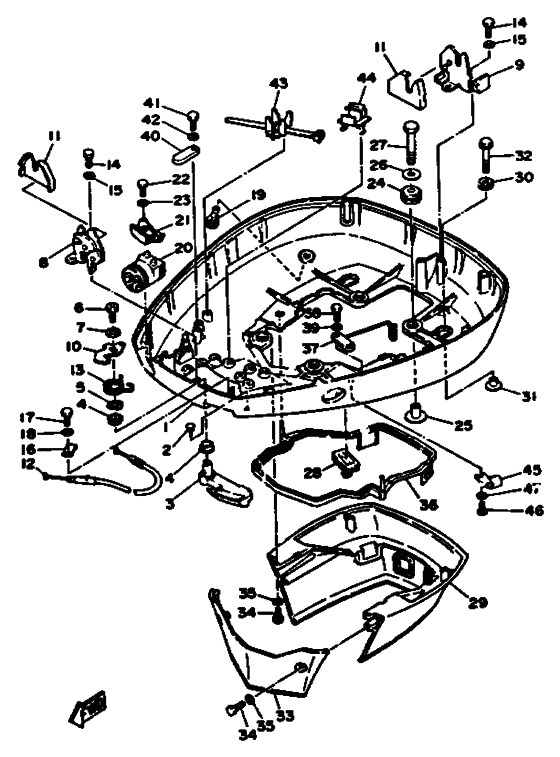

Bottom cowling Diagram Yamaha L150 TXR
- Year
- 1991
- Model
- L150
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R3-42711-40-EK
Bottom Cowling
|
6R3-42711-40-EK |
— | ||
| replacement | |||||
|
1
|
1
6R3-W4271-43-EK
Bottom Cowl
|
6R3-W4271-43-EK |
— | ||
|
2
|
2
6H4-42748-00-00 Grommet |
6H4-42748-00-00 |
US $1.98 |
||
|
3
|
3
6R3-42815-00-EK
Lever, Clamp 1
|
6R3-42815-00-EK |
— | ||
| replacement | |||||
|
3
|
3
6R3-42815-01-EK
BOLT,CLAMP BRACKET
|
6R3-42815-01-EK |
— | ||
|
4
|
4
90386-13M88-00 Bush |
90386-13M88-00 |
from US $4.68 |
||
|
5
|
5
90206-13M10-00 Washer, Wave |
90206-13M10-00 |
from US $2.69 |
||
|
6
|
6
90109-08M45-00 Bolt |
90109-08M45-00 |
from US $8.08 |
||
|
7
|
7
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
8
|
8
6R3-42824-00-00 Base, Clamp Lever |
6R3-42824-00-00 |
from US $76.96 |
||
|
9
|
9
6R3-42811-00-00 Stay |
6R3-42811-00-00 |
US $71.29 |
||
| replacement | |||||
|
9
|
9
6R3-42811-01-00 Stay |
6R3-42811-01-00 |
from US $66.22 |
||
|
10
|
10
6R3-42816-00-00 Lever, Clamp |
6R3-42816-00-00 |
from US $27.43 |
||
|
11
|
11
6R3-42851-00-00
Cover, Clamp
|
6R3-42851-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
6R3-42850-00-00
Wire Complete
|
6R3-42850-00-00 |
— | ||
|
13
|
13
6R3-42813-00-00 Spring, Clamp Lever |
6R3-42813-00-00 |
from US $6.94 |
||
|
14
|
14
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
6R3-42828-00-00 Plate, Clamp |
6R3-42828-00-00 |
from US $2.98 |
||
|
17
|
17
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
17
|
17
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
20
|
20
6R3-42725-20-00
Grommet
|
6R3-42725-20-00 |
— | ||
|
21
|
21
6R3-42738-01-5B
Plate, Fitting
|
6R3-42738-01-5B |
— | ||
| replacement | |||||
|
21
|
21
6R3-42738-02-CA
Plate, Fitting
|
6R3-42738-02-CA |
— | ||
|
22
|
22
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
25
|
25
90387-08M37-00 Collar |
90387-08M37-00 |
from US $7.76 |
||
|
26
|
26
90201-08M54-00 Washer, Plate |
90201-08M54-00 |
from US $2.36 |
||
|
27
|
27
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
27
|
27
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
27
|
27
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.40 |
||
|
28
|
28
688-42726-10-00 Grommet |
688-42726-10-00 |
US $4.11 |
||
|
29
|
29
6R3-42741-00-EK
Apron 1
|
6R3-42741-00-EK |
— | ||
| replacement | |||||
|
29
|
29
999-99028-32-00
Apron
|
999-99028-32-00 |
— | ||
|
30
|
30
90480-14M45-00 Grommet |
90480-14M45-00 |
from US $1.98 |
||
|
31
|
31
90387-06M52-00 Collar |
90387-06M52-00 |
from US $5.38 |
||
|
32
|
32
90119-06M64-00 Bolt, W/washer |
90119-06M64-00 |
from US $2.98 |
||
| replacements | |||||
|
32
|
32
90119-06M88-00 Bolt, With Washer |
90119-06M88-00 |
from US $2.98 |
||
|
32
|
32
90119-06311-00 |
90119-06311-00 |
from US $1.21 |
||
|
33
|
33
6R3-42771-00-EK
Apron 2
|
6R3-42771-00-EK |
— | ||
| replacement | |||||
|
33
|
33
6R3-42771-01-EK
Apron
|
6R3-42771-01-EK |
— | ||
|
34
|
34
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
35
|
35
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
36
|
36
6E5-42716-00-00 Rubber, Seal 1 |
6E5-42716-00-00 |
US $89.53 |
||
|
37
|
37
6K7-82588-00-00 Plate |
6K7-82588-00-00 |
from US $22.67 |
||
|
38
|
38
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
38
|
38
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
40
|
40
6E5-82588-00-00 Plate |
6E5-82588-00-00 |
from US $5.67 |
||
|
41
|
41
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
41
|
41
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
42
|
42
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
43
|
43
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $3.72 |
||
|
44
|
44
6E5-82594-00-00 Clamp |
6E5-82594-00-00 |
from US $6.52 |
||
|
45
|
45
6E5-24367-10-00 Clamp, Fuel Pipe 2 |
6E5-24367-10-00 |
from US $10.10 |
||
|
46
|
46
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.69 |
||
|
47
|
47
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
