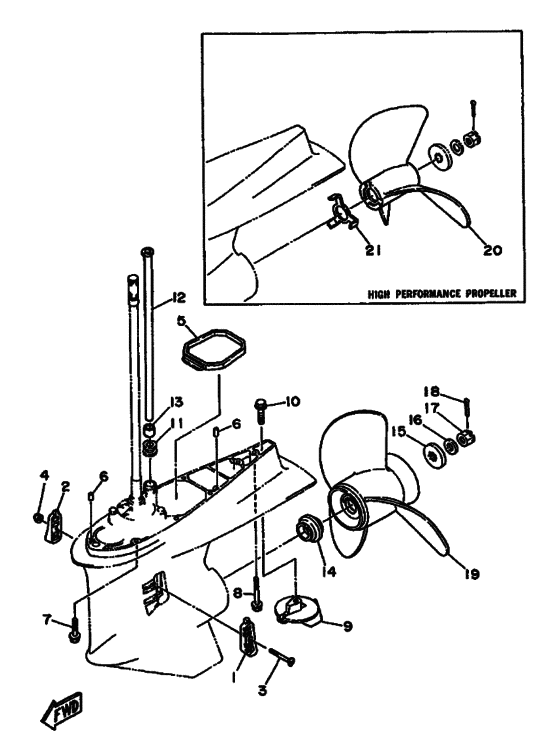

Lower casing & drive Diagram Yamaha L250 ETOX
- Year
- 1995
- Model
- L250A
- Model code
- 61B
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-45214-00-00 Cover, Water Inlet 1 |
61A-45214-00-00 |
from US $5.06 |
||
|
2
|
2
61A-45215-00-00 Cover, Water Inlet 2 |
61A-45215-00-00 |
from US $19.13 |
||
|
3
|
3
90142-05M04-00 Screw |
90142-05M04-00 |
US $3.26 |
||
| replacement | |||||
|
3
|
3
90152-05M08-00 Screw, Countersunk |
90152-05M08-00 |
from US $2.70 |
||
|
4
|
4
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
4
|
4
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.02 |
||
|
5
|
5
61A-45375-00-00 Damper, Seal |
61A-45375-00-00 |
US $39.10 |
||
| replacement | |||||
|
5
|
5
69J-45375-00-00 Damper, Seal |
69J-45375-00-00 |
from US $22.18 |
||
|
6
|
6
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $1.70 |
||
|
7
|
7
97595-10645-00 Bolt, With Washer |
97595-10645-00 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
8
|
8
90119-10MA2-00 Bolt, With Washer |
90119-10MA2-00 |
from US $9.07 |
||
| replacement | |||||
|
8
|
8
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
|
9
|
9
61A-45371-00-00
Tab-Trim
|
61A-45371-00-00 |
— | ||
| replacement | |||||
|
9
|
9
6CE-45373-00-00 Anode (Does not have a Fin) |
6CE-45373-00-00 |
from US $31.45 |
||
|
10
|
10
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.06 |
||
|
11
|
11
6E5-44366-00-00 Damper, Water Seal 2 |
6E5-44366-00-00 |
US $5.24 |
||
|
12
|
12
61A-44361-20-00 Tube, Water |
61A-44361-20-00 |
from US $55.78 |
||
|
13
|
13
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
13
|
13
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.70 |
||
|
14
|
14
6E5-45987-01-00 Spacer 1 |
6E5-45987-01-00 |
US $97.26 |
||
| replacement | |||||
|
14
|
14
63P-45987-00-00 Spacer 1 |
63P-45987-00-00 |
from US $69.77 |
||
|
15
|
15
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $26.60 |
||
|
16
|
16
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
17
|
17
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $12.12 |
||
|
18
|
18
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.02 |
||
|
19
|
19
6G5-45941-00-98 Propeller (3X15-1/4"x15"-M)3X15-1/4"X15"-M; UR |
6G5-45941-00-98 |
US $384.65 |
||
| replacement | |||||
|
19
|
19
6G5-45941-00-00 Propeller (3X15-1/4"x15"-M)3X15-1/4"X15"-M; UR |
6G5-45941-00-00 |
from US $368.55 |
||
|
19
|
19
6G5-45930-00-98 Propeller (3X13-3/8"x25"-M)3X13-3/8"X25"-M; UR |
6G5-45930-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6G5-45930-00-00 Propeller (3X13-3/8"x25"-M)3X13-3/8"X25"-M; UR |
6G5-45930-00-00 |
from US $1,085.04 |
||
|
19
|
19
6G5-45932-00-98 Propeller (3X15-3/4"x13"-M)3X15-3/4"X13"-M; UR |
6G5-45932-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6G5-45932-00-00 Propeller (3X15-3/4"x13"-M)3X15-3/4"X13"-M; UR |
6G5-45932-00-00 |
from US $1,085.04 |
||
|
19
|
19
61A-45972-00-98 Propeller (3X14-1/2"x21"-T)3X14-1/2"X21"-T; UR |
61A-45972-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
61A-45972-00-00 Propeller (3X14-1/2"x21"-T)3X14-1/2"X21"-T; UR |
61A-45972-00-00 |
from US $1,085.04 |
||
|
19
|
19
61A-45974-00-98 Propeller (3X14-1/2"x19"-T)3X14-1/2"X19"-T; UR |
61A-45974-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
61A-45974-00-00 Propeller (3X14-1/2"x19"-T)3X14-1/2"X19"-T; UR |
61A-45974-00-00 |
from US $1,085.04 |
||
|
19
|
19
61A-45978-00-98 Propeller (3X15"x17"-T)3X15"X17"-T; UR |
61A-45978-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
61A-45978-00-00 Propeller (3X15"x17"-T)3X15"X17"-T; UR |
61A-45978-00-00 |
from US $1,085.04 |
||
|
19
|
19
6G5-45947-01-98 Propeller (3X14-1/2"x17"-M)3X14-1/2"X17"-M; UR |
6G5-45947-01-98 |
US $384.65 |
||
| replacement | |||||
|
19
|
19
6G5-45947-01-00 Propeller (3X14-1/2"x17"-M)3X14-1/2"X17"-M; UR |
6G5-45947-01-00 |
from US $368.55 |
||
|
19
|
19
6G5-45949-00-98 Propeller (3X13-1/2"x23"-M)3X13-1/2"X23"-M; UR |
6G5-45949-00-98 |
US $384.65 |
||
| replacement | |||||
|
19
|
19
6G5-45949-00-00 Propeller (3X13-1/2"x23"-M)3X13-1/2"X23"-M; UR |
6G5-45949-00-00 |
from US $368.55 |
||
|
19
|
19
6G5-45952-00-98 Propeller (3X14-5/8"x16"-M)3X14-5/8"X16"-M; UR |
6G5-45952-00-98 |
US $384.65 |
||
| replacement | |||||
|
19
|
19
6G5-45952-00-00 Propeller (3X14-5/8"x16"-M)3X14-5/8"X16"-M; UR |
6G5-45952-00-00 |
from US $368.55 |
||
|
19
|
19
6G5-45970-02-98 Propeller (3X15-1/4"x15"-M)3X15-1/4"X15"-M; UR |
6G5-45970-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6G5-45970-02-00 Propeller (3X15-1/4"x15"-M)3X15-1/4"X15"-M; UR |
6G5-45970-02-00 |
from US $1,085.04 |
||
|
19
|
19
6G5-45972-02-98 Propeller (3X13-3/4"x21"-M)3X13-3/4"X21"-M; UR |
6G5-45972-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6G5-45972-02-00 Propeller (3X13-3/4"x21"-M)3X13-3/4"X21"-M; UR |
6G5-45972-02-00 |
from US $1,005.14 |
||
|
19
|
19
6G5-45974-02-98 Propeller Assy (3 X 13-3/4" X 19"-M)3X13-3/4"X19"-M; UR |
6G5-45974-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6G5-45974-03-00 Propeller (3X13-3/4"x19"-M2)3X13-3/4"X19"-M; UR |
6G5-45974-03-00 |
from US $1,020.28 |
||
|
19
|
19
6G5-45976-01-98 Propeller (3X13-3/8"x23"-M)3X13-3/8"X23"-M; UR |
6G5-45976-01-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6G5-45976-01-00 Propeller (3X13-3/8"x23"-M)3X13-3/8"X23"-M; UR |
6G5-45976-01-00 |
from US $1,040.48 |
||
|
19
|
19
6G5-45978-02-98 Propeller Assy (3 X 13-3/4" X 17"-M)3X13-3/4"X17"-M; UR |
6G5-45978-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6G5-45978-03-00 Propeller (3X13-3/4"x17"-M2)3X13-3/4"X17"-M; UR |
6G5-45978-03-00 |
from US $1,012.20 |
||
|
20
|
20
65E-45970-10-00
Propeller Assy
UR |
65E-45970-10-00 |
— | ||
|
20
|
20
6E2-45972-10-00
Propeller Assy
UR |
6E2-45972-10-00 |
— | ||
|
20
|
20
6E5-45974-10-00 Propeller (3X14"x28"-P)3X14"X28"-P; UR |
6E5-45974-10-00 |
from US $1,099.70 |
||
|
20
|
20
6E5-45976-10-00 Propeller (3X14"x22"-P)3X14"X22"-P; UR |
6E5-45976-10-00 |
from US $1,099.70 |
||
|
20
|
20
6E5-45978-10-00 Propeller (3X14"x26"-P)3X14"X26"-P; UR |
6E5-45978-10-00 |
from US $1,099.70 |
||
|
21
|
21
6E5-45994-10-00 Plate, Tooth |
6E5-45994-10-00 |
from US $55.40 |
||
