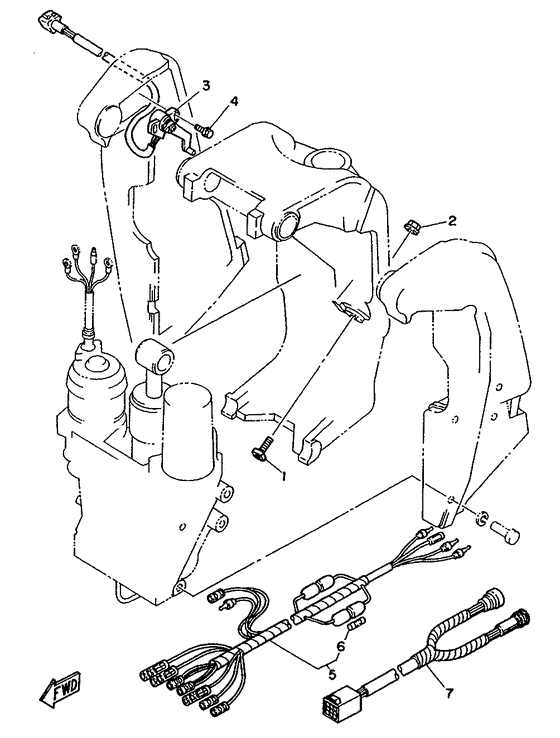

Bracket 2 Diagram Yamaha L250 ETOX
- Year
- 1990
- Model
- L250A
- Model code
- 61B
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61A-43376-00-00 Bolt, Thrust Receiver |
61A-43376-00-00 |
from US $17.18 |
||
|
02
|
02
95780-10300-00 Nut, Flange |
95780-10300-00 |
from US $5.95 |
||
|
03
|
03
61A-83672-00-00 Trim Sender |
61A-83672-00-00 |
US $163.50 |
||
| replacement | |||||
|
03
|
03
61A-83672-01-00 Trim Sender |
61A-83672-01-00 |
US $293.89 |
||
|
04
|
04
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
04
|
04
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
04
|
04
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
04
|
04
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
05
|
05
6Y5-83553-M0-00 Wire, Lead (L=2.5M) |
6Y5-83553-M0-00 |
US $61.34 |
||
| replacement | |||||
|
05
|
05
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
06
|
06
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.70 |
||
|
07
|
07
61B-82553-00-00
Extension, Wire Led
|
61B-82553-00-00 |
— | ||
