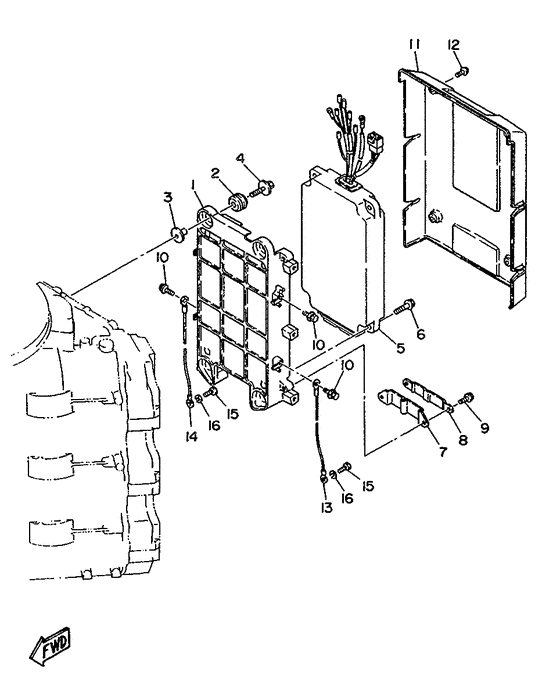

Electrical 1 Diagram Yamaha L250 ETOX
- Year
- 1990
- Model
- L250A
- Model code
- 61B
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61A-85542-00-EJ Bracket |
61A-85542-00-EJ |
US $119.51 |
||
|
02
|
02
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.02 |
||
|
03
|
03
90387-06M33-00
Collar
|
90387-06M33-00 |
— | ||
|
04
|
04
90119-06M28-00 Bolt, With Washer |
90119-06M28-00 |
from US $4.39 |
||
| replacements | |||||
|
04
|
04
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
04
|
04
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.39 |
||
|
05
|
05
61A-85540-00-00
C.d.i. Unit Assy
|
61A-85540-00-00 |
— | ||
| replacement | |||||
|
05
|
05
61A-85540-01-00
C.d.i. Unit Assembly
|
61A-85540-01-00 |
— | ||
|
06
|
06
97513-06525-00 Bolt, With Washer |
97513-06525-00 |
from US $1.84 |
||
|
07
|
07
61A-85548-00-00 Holder |
61A-85548-00-00 |
from US $10.94 |
||
|
08
|
08
61A-85525-00-00 Cover |
61A-85525-00-00 |
from US $11.48 |
||
|
09
|
09
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
09
|
09
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
10
|
10
97513-06514-00 Bolt, With Washer |
97513-06514-00 |
US $2.41 |
||
| replacements | |||||
|
10
|
10
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
10
|
10
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
10
|
10
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
11
|
11
61A-85537-00-00 Cover |
61A-85537-00-00 |
from US $77.92 |
||
|
12
|
12
97986-06220-00 Screw, With Washer |
97986-06220-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
97985-06220-00 Screw, With Washer(64X) |
97985-06220-00 |
from US $1.98 |
||
|
13
|
13
61A-82519-00-00 Wire, Earth Lead |
61A-82519-00-00 |
US $13.32 |
||
| replacement | |||||
|
13
|
13
6R3-82519-00-00 Wire, Earth Lead |
6R3-82519-00-00 |
from US $9.10 |
||
|
14
|
14
6G0-82519-00-00 Wire, Earth Lead |
6G0-82519-00-00 |
US $13.32 |
||
| replacement | |||||
|
14
|
14
6R3-82519-00-00 Wire, Earth Lead |
6R3-82519-00-00 |
from US $9.10 |
||
|
15
|
15
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
