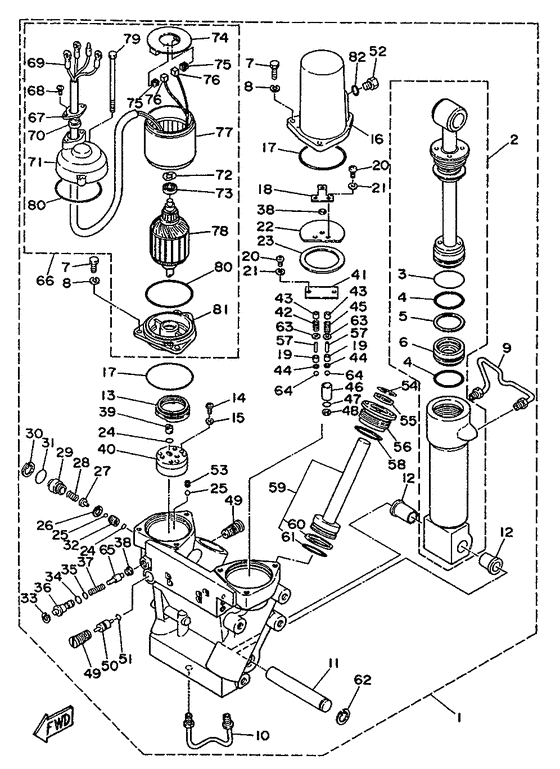

Power trim & tilt assy Diagram Yamaha L250 ETOX
- Year
- 1990
- Model
- L250A
- Model code
- 61B
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61A-43800-20-EJ
Power Trim & Tilt Assy
|
61A-43800-20-EJ |
— | ||
| replacement | |||||
|
01
|
01
61A-43800-21-EJ
Power Trim & Tilt Assy
|
61A-43800-21-EJ |
— | ||
|
02
|
02
61A-48340-00-00
Cable End Assy
|
61A-48340-00-00 |
— | ||
|
03
|
03
6H1-43861-00-00 O-Ring |
6H1-43861-00-00 |
US $4.68 |
||
| replacement | |||||
|
03
|
03
63P-43861-20-00 O-Ring |
63P-43861-20-00 |
from US $3.47 |
||
|
04
|
04
61A-43861-00-00 O-Ring |
61A-43861-00-00 |
US $3.54 |
||
| replacement | |||||
|
04
|
04
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
05
|
05
61A-43871-00-00 Ring, Back Up |
61A-43871-00-00 |
US $12.89 |
||
| replacement | |||||
|
05
|
05
65W-43871-00-00 Ring, Back Up |
65W-43871-00-00 |
from US $11.12 |
||
|
06
|
06
6H1-43814-00-00 Piston, Free |
6H1-43814-00-00 |
US $53.47 |
||
| replacement | |||||
|
06
|
06
6H1-43814-11-00 Piston, Free |
6H1-43814-11-00 |
from US $44.35 |
||
|
07
|
07
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
07
|
07
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
08
|
08
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
09
|
09
61A-43835-00-00
Pipe
|
61A-43835-00-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
61A-43833-00-00
Pipe
|
61A-43833-00-00 |
— | ||
|
11
|
11
61A-43818-00-00 Pin, Lower Shock Mount |
61A-43818-00-00 |
from US $47.11 |
||
|
12
|
12
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.36 |
||
|
13
|
13
6H1-43817-00-00 Filter 2 |
6H1-43817-00-00 |
from US $47.59 |
||
|
14
|
14
98501-04030-00 Screw, Pan Head |
98501-04030-00 |
US $2.13 |
||
| replacements | |||||
|
14
|
14
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
14
|
14
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
14
|
14
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
14
|
14
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
14
|
14
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
14
|
14
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
15
|
15
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
16
|
16
61A-43828-00-00 Body, Reservoir |
61A-43828-00-00 |
from US $177.08 |
||
|
17
|
17
6H1-43869-00-00 O-Ring |
6H1-43869-00-00 |
from US $5.06 |
||
|
18
|
18
61A-4384L-00-00 Spring, Trim Down |
61A-4384L-00-00 |
from US $3.69 |
||
|
19
|
19
6T4-43851-00-00 Seat, Relief Valve |
6T4-43851-00-00 |
from US $8.93 |
||
|
20
|
20
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
20
|
20
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
21
|
21
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
22
|
22
61A-4384K-00-00 Plate, Trim Down |
61A-4384K-00-00 |
from US $16.90 |
||
|
23
|
23
61A-4384J-00-00 Seal, Trim Down |
61A-4384J-00-00 |
from US $6.09 |
||
|
24
|
24
93210-06519-00 O-Ring |
93210-06519-00 |
from US $2.13 |
||
|
25
|
25
93505-32038-00 Ball |
93505-32038-00 |
from US $0.47 |
||
|
26
|
26
61A-43875-00-00 Ring, Snap |
61A-43875-00-00 |
from US $5.95 |
||
|
27
|
27
61A-43848-00-00 Rod, Manual Release |
61A-43848-00-00 |
from US $23.18 |
||
|
28
|
28
61A-43854-00-00 Spring, Manual Release |
61A-43854-00-00 |
from US $9.35 |
||
|
29
|
29
61A-43845-00-00 Screw, Manual Release |
61A-43845-00-00 |
from US $52.34 |
||
|
30
|
30
6H1-43875-00-00 Ring, Snap |
6H1-43875-00-00 |
from US $3.04 |
||
|
31
|
31
93210-18M75-00 O-Ring |
93210-18M75-00 |
from US $2.27 |
||
|
32
|
32
61A-43847-00-00 Seat, Manual Valve |
61A-43847-00-00 |
from US $10.91 |
||
|
33
|
33
6T4-43876-00-00 Ring, Snap |
6T4-43876-00-00 |
from US $2.98 |
||
|
34
|
34
6H1-43868-00-00 O-Ring |
6H1-43868-00-00 |
from US $1.70 |
||
|
35
|
35
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.84 |
||
|
36
|
36
6T4-43849-00-00 Pin, Valve Support |
6T4-43849-00-00 |
from US $21.39 |
||
|
37
|
37
61A-4385H-00-00 Spring, Seal |
61A-4385H-00-00 |
from US $4.11 |
||
|
38
|
38
61A-4384F-00-00 Seal, Main Valve |
61A-4384F-00-00 |
US $4.82 |
||
| replacement | |||||
|
38
|
38
6H1-4384F-10-00 Seal, Main Valve |
6H1-4384F-10-00 |
from US $4.82 |
||
|
39
|
39
6H1-43831-00-00 Connector, Shaft |
6H1-43831-00-00 |
from US $19.27 |
||
|
40
|
40
6T4-43830-00-00 Gear Pump Assy |
6T4-43830-00-00 |
from US $533.32 |
||
|
41
|
41
61A-4382K-00-00 Cap, Relief Valve |
61A-4382K-00-00 |
from US $12.46 |
||
|
42
|
42
61A-43856-00-00 Spring, Down Relief |
61A-43856-00-00 |
US $1.98 |
||
| replacement | |||||
|
42
|
42
6H1-43856-10-00 Spring, Down Relief |
6H1-43856-10-00 |
from US $1.98 |
||
|
43
|
43
6T4-43844-00-00 Pin, Valve Support |
6T4-43844-00-00 |
from US $5.53 |
||
|
44
|
44
6T4-4384G-00-00 Seal, Relief Valve |
6T4-4384G-00-00 |
from US $7.37 |
||
|
45
|
45
6T4-43855-00-00 Spring, Up Relief |
6T4-43855-00-00 |
from US $2.98 |
||
|
46
|
46
6T4-43895-00-00 Seat, Relief Valve |
6T4-43895-00-00 |
from US $21.39 |
||
|
47
|
47
93210-10M74-00 O-Ring |
93210-10M74-00 |
US $2.13 |
||
|
48
|
48
6H1-43816-00-00 Filter 1 |
6H1-43816-00-00 |
from US $19.55 |
||
|
49
|
49
6T4-43802-00-00 Valve Sub Assembly |
6T4-43802-00-00 |
US $86.21 |
||
| replacement | |||||
|
49
|
49
6T4-43802-03-00 Valve Sub Assy |
6T4-43802-03-00 |
from US $86.21 |
||
|
50
|
50
6T4-43841-00-00 Piston, Shuttle |
6T4-43841-00-00 |
US $118.96 |
||
| replacement | |||||
|
50
|
50
999-99030-32-00 Piston, Shuttle |
999-99030-32-00 |
from US $118.96 |
||
|
51
|
51
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
51
|
51
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
52
|
52
6H1-43829-00-00 Plug, Reservoir |
6H1-43829-00-00 |
from US $10.48 |
||
|
53
|
53
61A-43878-00-00 Bolt, Socket |
61A-43878-00-00 |
from US $2.13 |
||
|
54
|
54
6T4-43875-00-00 Ring, Snap |
6T4-43875-00-00 |
from US $1.36 |
||
|
55
|
55
61A-43822-00-00
Seal, Trim Dust
|
61A-43822-00-00 |
— | ||
| replacement | |||||
|
55
|
55
69J-43822-00-00 SEAL, TRIM DUST |
69J-43822-00-00 |
from US $4.11 |
||
|
56
|
56
61A-43821-00-00 Screw, Trim Cylinder End |
61A-43821-00-00 |
US $36.75 |
||
| replacements | |||||
|
56
|
56
61A-43821-01-00 Screw, Trim Cylinder End |
61A-43821-01-00 |
from US $26.26 |
||
|
56
|
56
61A-43821-09-00 SCREW TRIM CYLINDER END |
61A-43821-09-00 |
from US $36.75 |
||
|
57
|
57
91609-10014-00 Pin, Spring |
91609-10014-00 |
from US $3.83 |
||
|
58
|
58
61A-43861-00-00 O-Ring |
61A-43861-00-00 |
US $3.54 |
||
| replacement | |||||
|
58
|
58
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
59
|
59
61A-43820-00-00
Piston Sub Assembly
|
61A-43820-00-00 |
— | ||
| replacement | |||||
|
59
|
59
61A-43820-01-00
Piston Sub Assembly
|
61A-43820-01-00 |
— | ||
|
60
|
60
61A-43874-00-00 Ring, Back Up |
61A-43874-00-00 |
from US $9.63 |
||
|
61
|
61
61A-43864-00-00 O-Ring |
61A-43864-00-00 |
from US $2.13 |
||
|
62
|
62
61A-43876-00-00 Ring, Snap |
61A-43876-00-00 |
US $2.41 |
||
| replacement | |||||
|
62
|
62
61A-43876-01-00 RING SNAP |
61A-43876-01-00 |
from US $2.41 |
||
|
63
|
63
6T4-43893-00-00 Washer |
6T4-43893-00-00 |
from US $2.41 |
||
|
64
|
64
93501-08001-00 Ball |
93501-08001-00 |
from US $1.51 |
||
|
65
|
65
61A-4382A-00-00 Adaptor 1 |
61A-4382A-00-00 |
from US $9.49 |
||
|
66
|
66
61A-43880-00-00 Motor Assy |
61A-43880-00-00 |
US $1,900.80 |
||
| replacement | |||||
|
66
|
66
61A-43880-02-00 Motor Assy |
61A-43880-02-00 |
from US $1,180.50 |
||
|
67
|
67
6T4-4386J-00-00 Washer, Special |
6T4-4386J-00-00 |
from US $20.12 |
||
|
68
|
68
90157-05107-00 Screw, Pan Head |
90157-05107-00 |
from US $2.41 |
||
|
69
|
69
61A-43807-00-00 Wire Sub Assy |
61A-43807-00-00 |
from US $75.64 |
||
|
70
|
70
6T4-43885-00-00 Grommet |
6T4-43885-00-00 |
from US $5.53 |
||
|
71
|
71
61A-43884-00-00 Frame, Commutator End |
61A-43884-00-00 |
US $131.25 |
||
| replacement | |||||
|
71
|
71
61A-43884-01-00 Frame, Commutator End |
61A-43884-01-00 |
from US $131.25 |
||
|
72
|
72
90206-14086-00 Washer, Wave |
90206-14086-00 |
from US $1.84 |
||
|
73
|
73
93300-60820-00 Bearing |
93300-60820-00 |
from US $18.99 |
||
|
74
|
74
61A-43806-00-00 Brush Holder Assy |
61A-43806-00-00 |
from US $69.66 |
||
|
75
|
75
61A-4386K-00-00 Spring, Brush |
61A-4386K-00-00 |
from US $8.60 |
||
|
76
|
76
61A-43891-00-00 Brush 1 |
61A-43891-00-00 |
from US $18.43 |
||
|
77
|
77
61A-43804-00-00 Stator Assembly |
61A-43804-00-00 |
US $516.96 |
||
| replacement | |||||
|
77
|
77
61A-43804-01-00 Stator Assy |
61A-43804-01-00 |
from US $516.96 |
||
|
78
|
78
61A-43805-00-00 Armature Assembly |
61A-43805-00-00 |
US $570.24 |
||
| replacement | |||||
|
78
|
78
61A-43805-01-00 Armature Assy |
61A-43805-01-00 |
from US $428.90 |
||
|
79
|
79
61A-43887-00-00 Bolt |
61A-43887-00-00 |
from US $24.19 |
||
|
80
|
80
93210-72789-00 O-Ring |
93210-72789-00 |
from US $7.65 |
||
|
81
|
81
61A-43881-00-00 Frame, End |
61A-43881-00-00 |
US $203.10 |
||
| replacement | |||||
|
81
|
81
61A-43881-01-00 Frame, End |
61A-43881-01-00 |
from US $203.10 |
||
|
82
|
82
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
82
|
82
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
