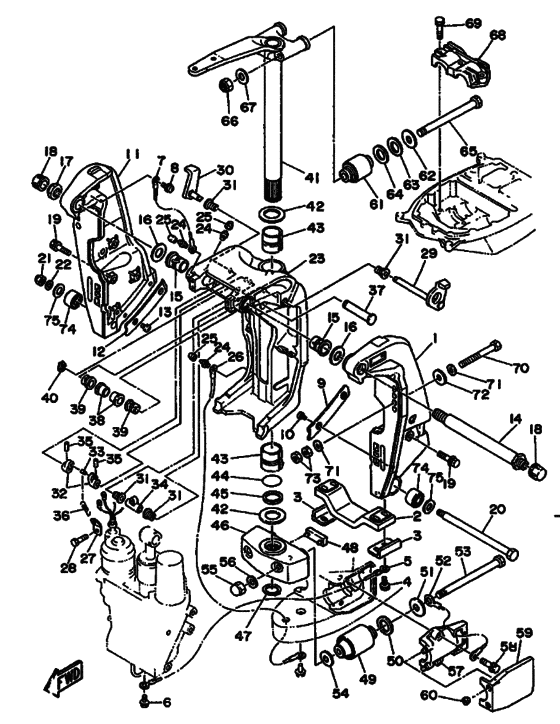

Bracket 1 Diagram Yamaha L250 ETOX
- Year
- 1992
- Model
- L250A
- Model code
- 61B
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-43111-21-EJ
Bracket, Clamp
|
61A-43111-21-EJ |
— | ||
|
2
|
2
6G5-45251-01-00 Anode |
6G5-45251-01-00 |
US $39.51 |
||
| replacement | |||||
|
2
|
2
6G5-45251-02-00 Anode |
6G5-45251-02-00 |
from US $36.34 |
||
|
3
|
3
6G5-44526-00-00 Plate |
6G5-44526-00-00 |
from US $2.36 |
||
|
4
|
4
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
4
|
4
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
4
|
4
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.07 |
||
|
5
|
5
6H1-82148-00-00 Wire, Lead 4 |
6H1-82148-00-00 |
US $10.63 |
||
| replacement | |||||
|
5
|
5
6T4-82117-00-00 Wire, Lead |
6T4-82117-00-00 |
from US $10.63 |
||
|
6
|
6
97595-06510-00 Bolt, With Washer(61B) |
97595-06510-00 |
US $3.68 |
||
| replacements | |||||
|
6
|
6
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
6
|
6
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
7
|
7
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $5.74 |
||
|
8
|
8
97895-06212-00
Screw, Pan Head
|
97895-06212-00 |
— | ||
|
9
|
9
61A-43132-00-00 Washer, Friction |
61A-43132-00-00 |
US $41.59 |
||
|
10
|
10
97895-06010-00 Screw, Pan Head |
97895-06010-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
11
|
11
61A-43112-21-EJ
Bracket, Clamp
|
61A-43112-21-EJ |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
61A-43133-00-00 Washer,friction |
61A-43133-00-00 |
US $41.59 |
||
|
13
|
13
97895-06010-00 Screw, Pan Head |
97895-06010-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
14
|
14
6E5-43131-01-00 Bolt, Clamp Bracket |
6E5-43131-01-00 |
US $105.83 |
||
| replacement | |||||
|
14
|
14
6R3-43131-00-00 Bolt, Clamp Bracket |
6R3-43131-00-00 |
from US $105.83 |
||
|
15
|
15
90386-25M31-00 Bush |
90386-25M31-00 |
from US $3.72 |
||
|
16
|
16
90201-26M59-00 Washer, Plate |
90201-26M59-00 |
from US $2.70 |
||
|
17
|
17
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
17
|
17
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.58 |
||
|
18
|
18
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
18
|
18
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.74 |
||
|
19
|
19
97595-10645-00 Bolt, With Washer |
97595-10645-00 |
US $5.81 |
||
| replacement | |||||
|
19
|
19
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
20
|
20
61A-43164-01-00
Rod, Tilt Lock
|
61A-43164-01-00 |
— | ||
|
21
|
21
95780-12300-00 Nut, Flange |
95780-12300-00 |
from US $11.12 |
||
|
22
|
22
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.36 |
||
|
23
|
23
61A-43311-21-EJ
Bracket, Swivel
|
61A-43311-21-EJ |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
24
|
24
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.70 |
||
|
25
|
25
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
26
|
26
61A-82147-20-00 Wire, Lead 4 |
61A-82147-20-00 |
US $16.43 |
||
| replacement | |||||
|
26
|
26
61A-82147-30-00 Wire, Lead 4 |
61A-82147-30-00 |
from US $16.43 |
||
|
27
|
27
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
28
|
28
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
28
|
28
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
29
|
29
61A-43181-01-00 Lever, Tilt Stop 1 |
61A-43181-01-00 |
from US $59.96 |
||
|
30
|
30
6G5-43185-02-00 Lever, Tilt Stop 2 |
6G5-43185-02-00 |
from US $51.84 |
||
|
31
|
31
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.02 |
||
|
32
|
32
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.98 |
||
|
33
|
33
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.40 |
||
|
34
|
34
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
35
|
35
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.36 |
||
|
36
|
36
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $3.68 |
||
|
37
|
37
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
38
|
38
90386-18M63-00 Bush |
90386-18M63-00 |
from US $3.68 |
||
|
39
|
39
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.36 |
||
|
40
|
40
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
40
|
40
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.04 |
||
|
41
|
41
61A-42510-20-EJ
Steering Bracket Assy
|
61A-42510-20-EJ |
— | ||
| replacements | |||||
|
41
|
41
69J-42510-00-EJ
Steering Bracket Assy
|
69J-42510-00-EJ |
— | ||
|
41
|
41
61A-42510-21-EJ
Steering Bracket Assy
|
61A-42510-21-EJ |
— | ||
|
42
|
42
90201-40M00-00 Washer, Plate |
90201-40M00-00 |
from US $5.81 |
||
|
43
|
43
90386-39M89-00 Bush |
90386-39M89-00 |
from US $10.20 |
||
|
44
|
44
93210-35321-00 O-Ring |
93210-35321-00 |
from US $3.38 |
||
|
45
|
45
90202-40M47-00 Washer, Plate |
90202-40M47-00 |
from US $4.68 |
||
|
46
|
46
61A-44551-00-EJ
Housing, Lower Mount Rubber
|
61A-44551-00-EJ |
— | ||
| replacement | |||||
|
46
|
46
61A-44551-01-EJ
Housing, Lower Mount Rubber
|
61A-44551-01-EJ |
— | ||
|
47
|
47
93410-37M04-00 Circlip |
93410-37M04-00 |
from US $3.72 |
||
|
48
|
48
6E5-44575-00-00 Damper, Lower Mount Rubber |
6E5-44575-00-00 |
US $14.03 |
||
|
49
|
49
61A-44555-01-94 Mount Damper, Lower Side |
61A-44555-01-94 |
US $128.07 |
||
| replacement | |||||
|
49
|
49
61A-44555-01-00 Mount Damper, Lower Side |
61A-44555-01-00 |
from US $128.07 |
||
|
50
|
50
90202-32M19-00 Washer, Plate |
90202-32M19-00 |
from US $5.06 |
||
|
51
|
51
90201-16M55-00 Washer, Plate |
90201-16M55-00 |
from US $5.06 |
||
|
52
|
52
6E5-82149-00-00 Wire, Lead 3 |
6E5-82149-00-00 |
from US $7.42 |
||
|
53
|
53
90109-15M48-00
Bolt
|
90109-15M48-00 |
— | ||
|
54
|
54
90201-15M58-00 Washer, Plate |
90201-15M58-00 |
from US $4.38 |
||
|
55
|
55
95380-14800-00 Nut |
95380-14800-00 |
from US $10.10 |
||
|
56
|
56
92990-14600-00 Washer |
92990-14600-00 |
from US $5.40 |
||
|
57
|
57
61A-44552-00-94 Housing, Lower Mount Rubber 2 |
61A-44552-00-94 |
US $82.90 |
||
| replacement | |||||
|
57
|
57
61A-44552-01-CA Housing, Lower Mount Rubber 2 |
61A-44552-01-CA |
from US $82.90 |
||
|
58
|
58
97595-10545-00 Bolt, With Washer |
97595-10545-00 |
US $3.40 |
||
| replacement | |||||
|
58
|
58
97E95-10545-00 Bolt, Hexagon W/w Deep Recess |
97E95-10545-00 |
from US $2.97 |
||
|
59
|
59
61A-44553-00-EJ
Cover, Lower Mount
|
61A-44553-00-EJ |
— | ||
| replacement | |||||
|
59
|
59
61A-44553-02-EJ
Cover, Lower Mount
|
61A-44553-02-EJ |
— | ||
|
60
|
60
6A0-15789-00-00
Damper
|
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
60
|
60
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
61
|
61
61A-44514-00-94 Mount Damper, Upper Side |
61A-44514-00-94 |
US $153.36 |
||
| replacement | |||||
|
61
|
61
61A-44514-00-00 HSNG,LWR |
61A-44514-00-00 |
from US $130.71 |
||
|
62
|
62
90201-16M01-00 Washer, Plate |
90201-16M01-00 |
from US $5.06 |
||
|
63
|
63
90202-28M46-00 Washer, Plate |
90202-28M46-00 |
from US $2.69 |
||
|
64
|
64
90201-28M01-00 Washer, Plate |
90201-28M01-00 |
from US $4.39 |
||
|
65
|
65
90109-14M10-00 Bolt |
90109-14M10-00 |
US $28.76 |
||
| replacement | |||||
|
65
|
65
90101-14003-00 Bolt |
90101-14003-00 |
from US $24.80 |
||
|
66
|
66
90185-14M00-00 Nut, Self-Locking |
90185-14M00-00 |
from US $12.89 |
||
|
67
|
67
92990-14600-00 Washer |
92990-14600-00 |
from US $5.40 |
||
|
68
|
68
61A-44511-00-94 Cover, Upper Mount |
61A-44511-00-94 |
US $77.51 |
||
| replacement | |||||
|
68
|
68
61A-44511-01-00 Cover, Upper Mount |
61A-44511-01-00 |
from US $42.93 |
||
|
69
|
69
97595-10545-00 Bolt, With Washer |
97595-10545-00 |
US $3.40 |
||
| replacement | |||||
|
69
|
69
97E95-10545-00 Bolt, Hexagon W/w Deep Recess |
97E95-10545-00 |
from US $2.97 |
||
|
70
|
70
90101-12M03-00 Bolt (L:115Mm) |
90101-12M03-00 |
from US $20.26 |
||
|
71
|
71
90201-13M01-00 Washer, Plate |
90201-13M01-00 |
from US $3.24 |
||
|
72
|
72
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
73
|
73
95380-12600-00 Nut |
95380-12600-00 |
from US $5.06 |
||
|
74
|
74
61A-43135-00-00
Rubber, Bushing
|
61A-43135-00-00 |
— | ||
|
75
|
75
90201-16M02-00
Washer, Plate
|
90201-16M02-00 |
— | ||
