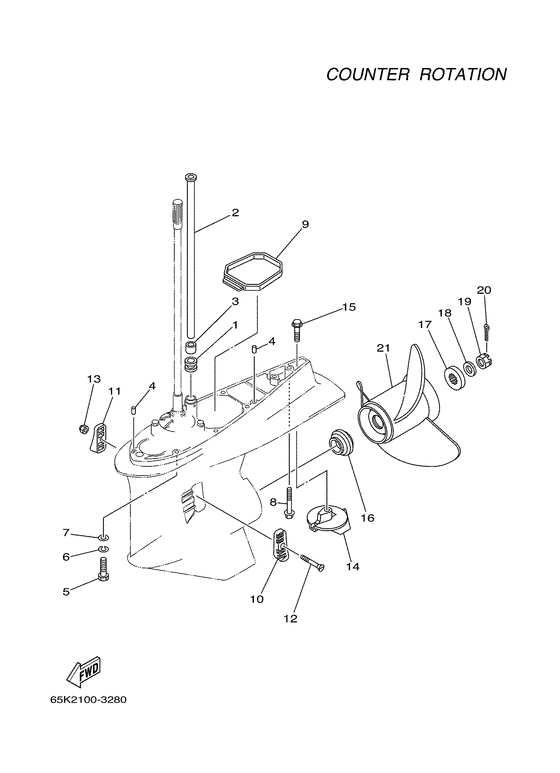

Lower casing & drive 4 Diagram Yamaha L250 ETOX
- Year
- 2005
- Model
- L250A
- Model code
- 61B
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (General) (060)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-44366-00-00 Damper, Water Seal 2 |
6E5-44366-00-00 |
US $5.24 |
||
|
02
|
02
61A-44361-20-00 Tube, WaterX |
61A-44361-20-00 |
from US $55.78 |
||
|
03
|
03
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
03
|
03
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.70 |
||
|
04
|
04
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $1.70 |
||
|
05
|
05
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.40 |
||
| replacement | |||||
|
05
|
05
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
06
|
06
92995-10100-00 Washer |
92995-10100-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
07
|
07
92995-10600-00 Washer, Plate |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
07
|
07
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
08
|
08
90119-10MA2-00 Bolt, With Washer |
90119-10MA2-00 |
from US $9.07 |
||
| replacement | |||||
|
08
|
08
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
|
09
|
09
61A-45375-00-00 Damper, Seal |
61A-45375-00-00 |
US $39.10 |
||
| replacement | |||||
|
09
|
09
69J-45375-00-00 Damper, Seal |
69J-45375-00-00 |
from US $22.18 |
||
|
10
|
10
61A-45214-10-00
Cover, Water Inlet 1
|
61A-45214-10-00 |
— | ||
| replacement | |||||
|
10
|
10
61A-45214-11-00 Cover, Water Inlet 1 |
61A-45214-11-00 |
from US $7.76 |
||
|
11
|
11
61A-45215-10-00
Cover, Water Inlet 2
|
61A-45215-10-00 |
— | ||
| replacement | |||||
|
11
|
11
61A-45215-11-00 Cover, Water Inlet 2 |
61A-45215-11-00 |
from US $9.44 |
||
|
12
|
12
90152-05003-00 Screw, Countersunk |
90152-05003-00 |
from US $2.70 |
||
|
13
|
13
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
13
|
13
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.02 |
||
|
14
|
14
61A-45371-00-00
Tab-Trim
|
61A-45371-00-00 |
— | ||
| replacement | |||||
|
14
|
14
6CE-45373-00-00 Anode (Does not have a Fin) |
6CE-45373-00-00 |
from US $31.45 |
||
|
15
|
15
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.06 |
||
|
16
|
16
6E5-45987-01-00 Spacer 1 |
6E5-45987-01-00 |
US $97.26 |
||
| replacement | |||||
|
16
|
16
63P-45987-00-00 Spacer 1 |
63P-45987-00-00 |
from US $69.77 |
||
|
17
|
17
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $26.60 |
||
|
18
|
18
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
19
|
19
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $12.12 |
||
|
20
|
20
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.02 |
||
|
21
|
21
61B-45972-00-98 Propeller (3X14-1/2"x21"-Tl)Ur |
61B-45972-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
21
|
21
61B-45972-00-00 Propeller (3X14-1/2"x21"-Tl)Ur |
61B-45972-00-00 |
from US $1,085.04 |
||
|
21
|
21
6K1-45974-02-98 Propeller (3X13-3/4"x19"-Ml1)Ur |
6K1-45974-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
21
|
21
6K1-45974-02-00 Propeller (3X13-3/4"x19"-Ml1)Ur |
6K1-45974-02-00 |
from US $1,085.04 |
||
|
21
|
21
6K1-45978-02-98 Propeller (3X13-3/4"x17"-Ml1)Ur |
6K1-45978-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
21
|
21
6K1-45978-02-00 Propeller (3X13-3/4"x17"-Ml1)Ur |
6K1-45978-02-00 |
from US $1,059 |
||
|
21
|
21
61B-45974-00-98 Propeller (3X14-1/2"x19"-Tl)Ur |
61B-45974-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
21
|
21
61B-45974-00-00 Propeller (3X14-12"x19-Tl)Ur |
61B-45974-00-00 |
from US $1,085.04 |
||
|
21
|
21
6R1-45970-A0-00 Propeller, Ss (3 X 15-1/4" X 19"-Ml)Ur |
6R1-45970-A0-00 |
US $1,927.20 |
||
| replacement | |||||
|
21
|
21
6R1-45970-A1-00 Propeller (3X15-1/4"x19"-Ml)Ur |
6R1-45970-A1-00 |
from US $1,224 |
||
|
21
|
21
61B-45978-00-98 Propeller (3X15"x17"-Tl)Ur |
61B-45978-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
21
|
21
61B-45978-00-00 Propeller (3X15"x17"-Tl)Ur |
61B-45978-00-00 |
from US $1,085.04 |
||
|
21
|
21
6R1-45972-A0-00 Propeller (3X14-7/8"x21"-Ml)Ur |
6R1-45972-A0-00 |
US $1,452 |
||
|
21
|
21
6K1-45970-01-98 Propeller (3X15-1/4"x15"-Ml)Ur |
6K1-45970-01-98 |
US $1,085.04 |
||
| replacement | |||||
|
21
|
21
6K1-45970-01-00 Propeller (3X15-1/4"x15"-Ml)Ur |
6K1-45970-01-00 |
from US $1,048.56 |
||
|
21
|
21
6R1-45974-A0-00 Propeller (3X14-1/2"x23"-Ml)Ur |
6R1-45974-A0-00 |
from US $1,224 |
||
|
21
|
21
6K1-45972-01-98 Propeller (3X13-3/4"x21"-Ml)Ur |
6K1-45972-01-98 |
US $1,085.04 |
||
| replacement | |||||
|
21
|
21
6K1-45972-01-00 Propeller (3X13-3/4"x21"-Ml)Ur |
6K1-45972-01-00 |
from US $1,073.12 |
||
|
21
|
21
6R1-45976-A0-00 Propeller (3X15-1/4"x15"-Ml)Ur |
6R1-45976-A0-00 |
US $1,268.20 |
||
|
21
|
21
6R1-45978-A0-00 Propeller (3X15-1/4"x17"-Ml)Ur |
6R1-45978-A0-00 |
US $1,268.20 |
||
