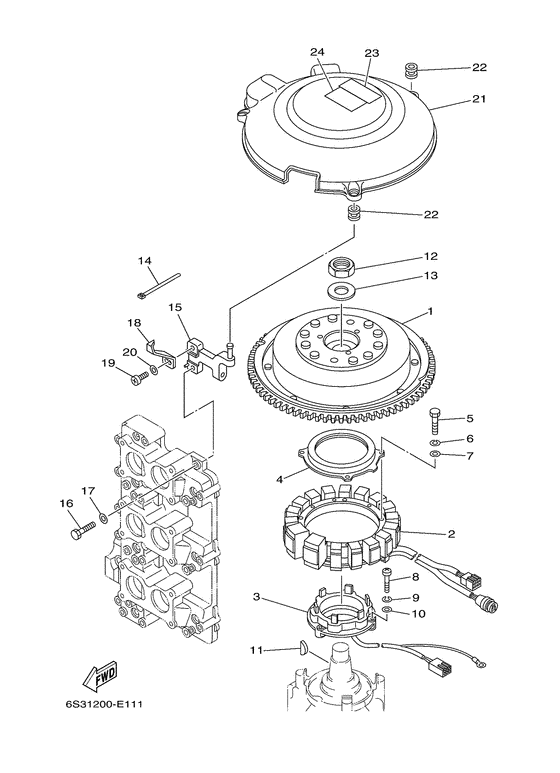

Generator Diagram Yamaha L250 ETOX
- Year
- 2006
- Model
- L250G
- Model code
- 6S4
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (General) (070)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61A-85550-01-00 Rotor Assy |
61A-85550-01-00 |
from US $1,570.80 |
||
|
02
|
02
65L-85510-10-00 Stator Assy |
65L-85510-10-00 |
from US $777.60 |
||
|
03
|
03
61A-85580-01-00 Coil, Pulser |
61A-85580-01-00 |
from US $691.68 |
||
|
04
|
04
61A-83721-00-00 Cover |
61A-83721-00-00 |
from US $30.04 |
||
|
05
|
05
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
05
|
05
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
06
|
06
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
07
|
07
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
08
|
08
97885-05030-00 Screw, Pan Head |
97885-05030-00 |
US $2.27 |
||
| replacement | |||||
|
08
|
08
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
09
|
09
92995-05100-00 Washer |
92995-05100-00 |
US $1.21 |
||
| replacement | |||||
|
09
|
09
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
11
|
11
902-80050-15-00
Key, Woodruff
|
902-80050-15-00 |
— | ||
| replacement | |||||
|
11
|
11
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $4.72 |
||
|
12
|
12
90170-24M22-00 Nut |
90170-24M22-00 |
from US $14.99 |
||
|
13
|
13
90201-25M02-00 Washer, Plate |
90201-25M02-00 |
from US $5.38 |
||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
15
|
15
6S3-8A870-00-00 Stay Assy |
6S3-8A870-00-00 |
US $57.75 |
||
|
16
|
16
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
17
|
17
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
6S3-81332-00-00 Plate, Timing |
6S3-81332-00-00 |
US $9.78 |
||
|
19
|
19
97885-06010-00 Screw, Pan Head |
97885-06010-00 |
US $1.98 |
||
| replacements | |||||
|
19
|
19
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
19
|
19
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.36 |
||
|
20
|
20
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
61A-81337-01-00 Cover, Flywheel |
61A-81337-01-00 |
from US $53.06 |
||
|
22
|
22
663-82317-01-00 Damper, Ignition Coil |
663-82317-01-00 |
US $4.96 |
||
| replacement | |||||
|
22
|
22
663-82317-02-00 Damper, Ignition Coil |
663-82317-02-00 |
from US $4.72 |
||
|
23
|
23
6A1-83625-41-00 Mark 5 |
6A1-83625-41-00 |
from US $7.25 |
||
|
24
|
24
6A1-83625-51-00 Mark 5 |
6A1-83625-51-00 |
US $4.26 |
||
