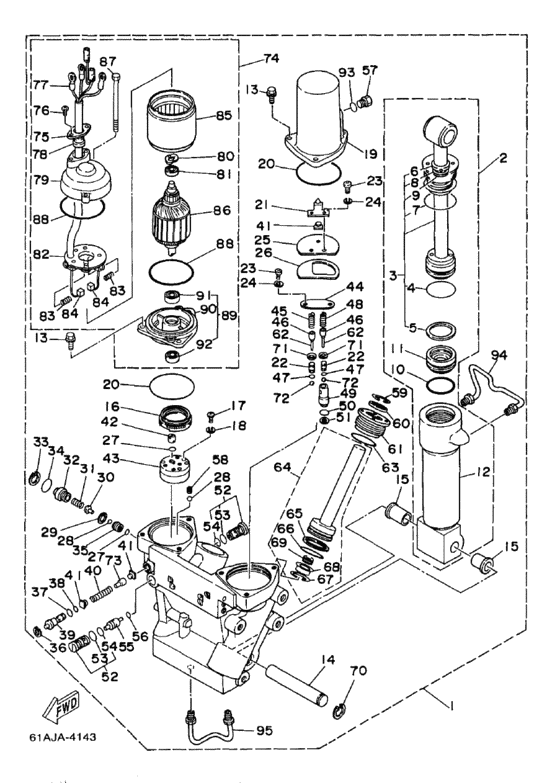

Power trim tilt assembly Diagram Yamaha L250 TXR
- Year
- 1997
- Model
- L250
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-43800-25-4D Power Trim & Tilt Assy |
61A-43800-25-4D |
US $3,973.20 |
||
| replacements | |||||
|
1
|
1
61A-43800-26-8D Power Trim & Tilt Assy |
61A-43800-26-8D |
US $3,999.80 |
||
|
1
|
1
61A-43800-27-8D
Power Trim & Tilt As
|
61A-43800-27-8D |
— | ||
|
1
|
1
61A-43800-28-8D Power Trim & Tilt Assy |
61A-43800-28-8D |
US $5,400.27 |
||
|
2
|
2
61A-43840-01-00 Power Tilt Assy |
61A-43840-01-00 |
US $1,808.40 |
||
| replacement | |||||
|
2
|
2
61A-43840-02-00 Power Tilt Assy |
61A-43840-02-00 |
US $2,211.84 |
||
|
3
|
3
61A-43810-00-00 Tilt Piston Sub Assy |
61A-43810-00-00 |
US $493.77 |
||
| replacement | |||||
|
3
|
3
61A-43810-01-00 Tilt Piston Sub Assy |
61A-43810-01-00 |
US $880.97 |
||
|
4
|
4
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
5
|
5
61A-43871-00-00 Ring, Back UpUP |
61A-43871-00-00 |
US $12.89 |
||
| replacement | |||||
|
5
|
5
65W-43871-00-00 Ring, Back UpUP |
65W-43871-00-00 |
from US $11.12 |
||
|
6
|
6
931-0619N-50-00 Oil Seal |
931-0619N-50-00 |
US $9.49 |
||
| replacement | |||||
|
6
|
6
931-06190-01-00 OIL SEAL |
931-06190-01-00 |
from US $8.76 |
||
|
7
|
7
6H1-43861-00-00 O-Ring |
6H1-43861-00-00 |
US $4.68 |
||
| replacement | |||||
|
7
|
7
63P-43861-20-00 O-Ring |
63P-43861-20-00 |
from US $3.47 |
||
|
8
|
8
6H1-43872-10-00 Ring, Back UpUP |
6H1-43872-10-00 |
from US $5.06 |
||
|
9
|
9
61A-4389H-00-00 O-Ring |
61A-4389H-00-00 |
US $2.13 |
||
| replacement | |||||
|
9
|
9
61A-4389H-01-00 O-Ring |
61A-4389H-01-00 |
from US $2.13 |
||
|
10
|
10
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
11
|
11
6H1-43814-11-00 Piston, Free |
6H1-43814-11-00 |
from US $44.35 |
||
|
12
|
12
61A-43813-01-00 Cylinder, Tilt |
61A-43813-01-00 |
US $521.05 |
||
| replacement | |||||
|
12
|
12
61A-43813-02-00 CYLINDER, TILT |
61A-43813-02-00 |
from US $521.05 |
||
|
13
|
13
97595-06420-00 Bolt, With Washer |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
13
|
13
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
13
|
13
97E95-06420-00 |
97E95-06420-00 |
US $1.49 |
||
|
14
|
14
61A-43818-00-00 Pin, Lower Shock Mount |
61A-43818-00-00 |
from US $47.11 |
||
|
15
|
15
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.36 |
||
|
16
|
16
6H1-43817-00-00 Filter 2 |
6H1-43817-00-00 |
from US $47.59 |
||
|
17
|
17
98507-04030-00 Screw,pan Head98511-04030-00 |
98507-04030-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
985-17040-30-00
Screw, Pan Head(1Ke)
98511-04030-00 |
985-17040-30-00 |
— | ||
|
18
|
18
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
19
|
19
61A-43828-00-00 Body, Reservoir |
61A-43828-00-00 |
from US $177.08 |
||
|
20
|
20
6H1-43869-00-00 O-Ring |
6H1-43869-00-00 |
from US $5.06 |
||
|
21
|
21
61A-4384L-00-00 Spring, Trim Down |
61A-4384L-00-00 |
from US $3.69 |
||
|
22
|
22
6T4-43851-00-00 Seat, Relief Valve |
6T4-43851-00-00 |
from US $8.93 |
||
|
23
|
23
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
23
|
23
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
24
|
24
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
25
|
25
61A-4384K-00-00 Plate, Trim Down |
61A-4384K-00-00 |
from US $16.90 |
||
|
26
|
26
61A-4384J-00-00 Seal, Trim Down |
61A-4384J-00-00 |
from US $6.09 |
||
|
27
|
27
93210-064A5-00 O-Ring |
93210-064A5-00 |
US $1.94 |
||
| replacement | |||||
|
27
|
27
93210-06519-00 O-Ring |
93210-06519-00 |
from US $2.13 |
||
|
28
|
28
93505-32038-00 Ball |
93505-32038-00 |
from US $0.47 |
||
|
29
|
29
61A-43875-00-00 Ring, Snap |
61A-43875-00-00 |
from US $5.95 |
||
|
30
|
30
61A-43848-00-00 Rod, Manual Release |
61A-43848-00-00 |
from US $23.18 |
||
|
31
|
31
61A-43854-00-00 Spring, Manual Release |
61A-43854-00-00 |
from US $9.35 |
||
|
32
|
32
61A-43845-00-00 Screw, Manual Release |
61A-43845-00-00 |
from US $52.34 |
||
|
33
|
33
6H1-43875-00-00 Ring, Snap |
6H1-43875-00-00 |
from US $3.04 |
||
|
34
|
34
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
35
|
35
61A-43847-00-00 Seat, Manual Valve |
61A-43847-00-00 |
from US $10.91 |
||
|
36
|
36
6T4-43876-00-00 Ring, Snap |
6T4-43876-00-00 |
from US $2.98 |
||
|
37
|
37
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.56 |
||
|
38
|
38
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.84 |
||
|
39
|
39
6T4-43849-00-00 Pin, Valve Support |
6T4-43849-00-00 |
from US $21.39 |
||
|
40
|
40
61A-4385H-00-00 Spring, Seal |
61A-4385H-00-00 |
from US $4.11 |
||
|
41
|
41
61A-4384F-00-00 Seal, Main Valve |
61A-4384F-00-00 |
US $4.82 |
||
| replacement | |||||
|
41
|
41
6H1-4384F-10-00 Seal, Main Valve |
6H1-4384F-10-00 |
from US $4.82 |
||
|
42
|
42
6H1-43831-00-00 Connector, Shaft |
6H1-43831-00-00 |
from US $19.27 |
||
|
43
|
43
6T4-43830-00-00 Gear Pump Assy |
6T4-43830-00-00 |
from US $533.32 |
||
|
44
|
44
61A-4382K-00-00 Cap, Relief Valve |
61A-4382K-00-00 |
from US $12.46 |
||
|
45
|
45
6H1-43856-10-00 Spring, Down Relief |
6H1-43856-10-00 |
from US $1.98 |
||
|
46
|
46
6T4-43844-00-00 Pin, Valve Support |
6T4-43844-00-00 |
from US $5.53 |
||
|
47
|
47
6T4-4384G-00-00 Seal, Relief Valve |
6T4-4384G-00-00 |
from US $7.37 |
||
|
48
|
48
6T4-43855-00-00 Spring, Up ReliefUP RELIEF |
6T4-43855-00-00 |
from US $2.98 |
||
|
49
|
49
6T4-43895-00-00 Seat, Relief Valve |
6T4-43895-00-00 |
from US $21.39 |
||
|
50
|
50
93210-10M74-00 O-Ring |
93210-10M74-00 |
US $2.13 |
||
|
51
|
51
6H1-43816-00-00 Filter 1 |
6H1-43816-00-00 |
from US $19.55 |
||
|
52
|
52
6T4-43802-03-00 Valve Sub Assy |
6T4-43802-03-00 |
from US $86.21 |
||
|
53
|
53
6H1-43866-00-00
O-Ring
|
6H1-43866-00-00 |
— | ||
| replacement | |||||
|
53
|
53
6H1-43866-01-00 O-Ring |
6H1-43866-01-00 |
from US $2.13 |
||
|
54
|
54
6H1-43867-00-00 O-Ring |
6H1-43867-00-00 |
US $2.98 |
||
| replacement | |||||
|
54
|
54
93210-12N52-00 O-Ring |
93210-12N52-00 |
from US $1.84 |
||
|
55
|
55
6T4-43841-00-00 Piston, Shuttle |
6T4-43841-00-00 |
US $118.96 |
||
| replacement | |||||
|
55
|
55
999-99030-32-00 Piston, Shuttle |
999-99030-32-00 |
from US $118.96 |
||
|
56
|
56
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
56
|
56
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
57
|
57
6H1-43829-00-00 Plug, Reservoir |
6H1-43829-00-00 |
from US $10.48 |
||
|
58
|
58
61A-43878-00-00 Bolt, Socket |
61A-43878-00-00 |
from US $2.13 |
||
|
59
|
59
6T4-43875-00-00 Ring, Snap |
6T4-43875-00-00 |
from US $1.36 |
||
|
60
|
60
61A-43822-00-00
Seal, Trim Dust
|
61A-43822-00-00 |
— | ||
| replacement | |||||
|
60
|
60
69J-43822-00-00 SEAL, TRIM DUST |
69J-43822-00-00 |
from US $4.11 |
||
|
61
|
61
61A-43821-00-00 Screw, Trim Cylinder End |
61A-43821-00-00 |
US $36.75 |
||
| replacements | |||||
|
61
|
61
61A-43821-01-00 Screw, Trim Cylinder End |
61A-43821-01-00 |
from US $26.26 |
||
|
61
|
61
61A-43821-09-00 SCREW TRIM CYLINDER END |
61A-43821-09-00 |
from US $36.75 |
||
|
62
|
62
91609-10014-00 Pin, Spring |
91609-10014-00 |
from US $3.83 |
||
|
63
|
63
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
64
|
64
61A-43820-10-00 Trim Piston Sub Assy |
61A-43820-10-00 |
US $365.55 |
||
| replacement | |||||
|
64
|
64
61A-43820-11-00 Trim Piston Sub Assy |
61A-43820-11-00 |
from US $235.22 |
||
|
65
|
65
61A-43874-00-00 Ring, Back UpUP |
61A-43874-00-00 |
from US $9.63 |
||
|
66
|
66
61A-43864-00-00 O-Ring |
61A-43864-00-00 |
from US $2.13 |
||
|
67
|
67
61A-43875-10-00 Ring, Snap |
61A-43875-10-00 |
from US $4.68 |
||
|
68
|
68
61A-4383H-10-00 Hose Oil |
61A-4383H-10-00 |
US $78.47 |
||
| replacement | |||||
|
68
|
68
61A-4383H-11-00 Hose, Oil 5 |
61A-4383H-11-00 |
from US $78.47 |
||
|
69
|
69
6H1-4384H-10-00 Spring |
6H1-4384H-10-00 |
US $2.39 |
||
|
70
|
70
6T4-43876-00-00 Ring, Snap |
6T4-43876-00-00 |
from US $2.98 |
||
|
71
|
71
6T4-43893-00-00 Washer |
6T4-43893-00-00 |
from US $2.41 |
||
|
72
|
72
93501-08001-00 Ball |
93501-08001-00 |
from US $1.51 |
||
|
73
|
73
61A-4382A-00-00 Adaptor 1 |
61A-4382A-00-00 |
from US $9.49 |
||
|
74
|
74
61A-43880-02-00 Motor Assy |
61A-43880-02-00 |
from US $1,180.50 |
||
|
75
|
75
6T4-4386J-00-00 Washer, Special |
6T4-4386J-00-00 |
from US $20.12 |
||
|
76
|
76
90157-05107-00 Screw, Pan Head |
90157-05107-00 |
from US $2.41 |
||
|
77
|
77
61A-43807-00-00 Wire Sub Assy |
61A-43807-00-00 |
from US $75.64 |
||
|
78
|
78
6T4-43885-00-00 Grommet |
6T4-43885-00-00 |
from US $5.53 |
||
|
79
|
79
61A-43884-01-00 Frame, Commutator End |
61A-43884-01-00 |
from US $131.25 |
||
|
80
|
80
90206-14086-00 Washer, Wave |
90206-14086-00 |
from US $1.84 |
||
|
81
|
81
93300-60820-00 Bearing |
93300-60820-00 |
from US $18.99 |
||
|
82
|
82
61A-43806-00-00 Brush Holder Assy |
61A-43806-00-00 |
from US $69.66 |
||
|
83
|
83
61A-4386K-00-00 Spring, Brush |
61A-4386K-00-00 |
from US $8.60 |
||
|
84
|
84
61A-43891-00-00 Brush 1 |
61A-43891-00-00 |
from US $18.43 |
||
|
85
|
85
61A-43804-01-00 Stator Assy |
61A-43804-01-00 |
from US $516.96 |
||
|
86
|
86
61A-43805-01-00 Armature Assy |
61A-43805-01-00 |
from US $428.90 |
||
|
87
|
87
61A-43887-00-00 Bolt |
61A-43887-00-00 |
from US $24.19 |
||
|
88
|
88
93210-72789-00 O-Ring |
93210-72789-00 |
from US $7.65 |
||
|
89
|
89
61A-43881-01-00 Frame, End |
61A-43881-01-00 |
from US $203.10 |
||
|
90
|
90
61A-43881-11-00 Frame, End |
61A-43881-11-00 |
US $203.10 |
||
| replacement | |||||
|
90
|
90
61A-43881-01-00 Frame, End |
61A-43881-01-00 |
from US $203.10 |
||
|
91
|
91
93300-60820-00 Bearing |
93300-60820-00 |
from US $18.99 |
||
|
92
|
92
93102-08414-00 Oil Seal |
93102-08414-00 |
from US $21.25 |
||
|
93
|
93
6H1-43867-00-00 O-Ring |
6H1-43867-00-00 |
US $2.98 |
||
| replacement | |||||
|
93
|
93
93210-12N52-00 O-Ring |
93210-12N52-00 |
from US $1.84 |
||
|
94
|
94
61A-43835-01-00 Pipe |
61A-43835-01-00 |
from US $106.38 |
||
|
95
|
95
61A-43833-01-00 Pipe |
61A-43833-01-00 |
from US $60.14 |
||
