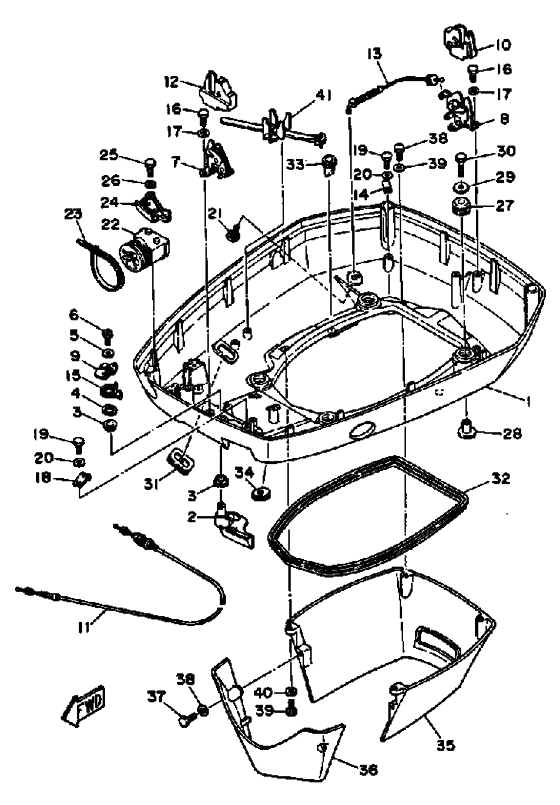

Bottom cowling Diagram Yamaha L250 TXR
- Year
- 1991
- Model
- L250
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-42711-00-EK
Bottom Cowling
|
61A-42711-00-EK |
— | ||
| replacement | |||||
|
1
|
1
61A-W4271-05-EK LOWER UNIT ASSY |
61A-W4271-05-EK |
US $963.42 |
||
|
2
|
2
61A-42815-00-EK
Lever, Clamp 1
|
61A-42815-00-EK |
— | ||
|
3
|
3
90386-13M88-00 Bush |
90386-13M88-00 |
from US $4.68 |
||
|
4
|
4
90206-13M10-00 Washer, Wave |
90206-13M10-00 |
from US $2.69 |
||
|
5
|
5
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
6
|
6
90109-06M50-00 Bolt |
90109-06M50-00 |
from US $4.39 |
||
|
7
|
7
6R3-42824-00-00 Base, Clamp Lever |
6R3-42824-00-00 |
from US $76.96 |
||
|
8
|
8
6R3-42811-00-00 Stay |
6R3-42811-00-00 |
US $71.29 |
||
| replacement | |||||
|
8
|
8
6R3-42811-01-00 Stay |
6R3-42811-01-00 |
from US $66.22 |
||
|
9
|
9
6R3-42816-00-00 Lever, Clamp |
6R3-42816-00-00 |
from US $27.43 |
||
|
10
|
10
61A-42851-00-00
Cover, Clamp
|
61A-42851-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
6R3-42850-00-00
Wire Complete
|
6R3-42850-00-00 |
— | ||
|
12
|
12
6R3-42851-00-00
Cover, Clamp
|
6R3-42851-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
61A-42850-00-00
Wire, Complete
|
61A-42850-00-00 |
— | ||
|
14
|
14
682-44117-00-00 Bracket |
682-44117-00-00 |
from US $3.52 |
||
|
15
|
15
6R3-42813-00-00 Spring, Clamp Lever |
6R3-42813-00-00 |
from US $6.94 |
||
|
16
|
16
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
6R3-42828-00-00 Plate, Clamp |
6R3-42828-00-00 |
from US $2.98 |
||
|
19
|
19
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
19
|
19
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
22
|
22
61A-42725-00-00
Grommet 2
|
61A-42725-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
23
|
23
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.36 |
||
|
24
|
24
61A-42738-00-5B Plate, Fitting |
61A-42738-00-5B |
US $16.29 |
||
| replacement | |||||
|
24
|
24
61A-42738-02-8D Plate, Fitting |
61A-42738-02-8D |
from US $16.29 |
||
|
25
|
25
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
28
|
28
90387-08M37-00 Collar |
90387-08M37-00 |
from US $7.76 |
||
|
29
|
29
90201-08M54-00 Washer, Plate |
90201-08M54-00 |
from US $2.36 |
||
|
30
|
30
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
30
|
30
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
30
|
30
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.40 |
||
|
31
|
31
688-42726-10-00 Grommet |
688-42726-10-00 |
US $4.11 |
||
|
32
|
32
61A-42716-00-00 Rubber, Seal 1 |
61A-42716-00-00 |
US $58.30 |
||
|
33
|
33
61A-42717-00-00 Rubber, Seal 2 |
61A-42717-00-00 |
from US $3.38 |
||
|
34
|
34
61A-42727-00-00 Grommet |
61A-42727-00-00 |
US $4.82 |
||
|
35
|
35
61A-42741-00-EK
Apron 1
|
61A-42741-00-EK |
— | ||
| replacement | |||||
|
35
|
35
61A-42741-01-EK
APRON 2
|
61A-42741-01-EK |
— | ||
|
36
|
36
61A-42771-00-EK
Apron 2
|
61A-42771-00-EK |
— | ||
| replacement | |||||
|
36
|
36
61A-42771-01-EK
element
|
61A-42771-01-EK |
— | ||
|
37
|
37
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
37
|
37
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
39
|
39
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
39
|
39
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
40
|
40
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
41
|
41
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $3.72 |
||
