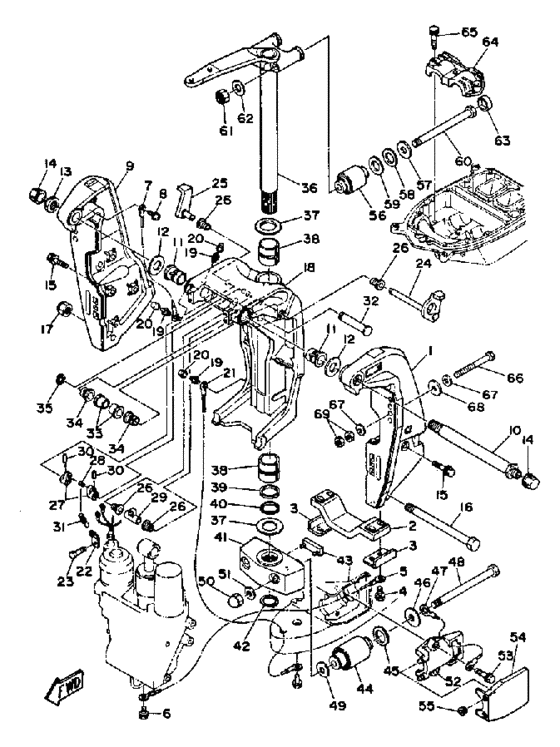

Bracket Diagram Yamaha L250 TXR
- Year
- 1991
- Model
- L250
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-43111-21-EK
Bracket, Clamp
|
61A-43111-21-EK |
— | ||
| replacement | |||||
|
1
|
1
61A-43111-23-EK
element
|
61A-43111-23-EK |
— | ||
|
2
|
2
6G5-45251-01-00 Anode |
6G5-45251-01-00 |
US $39.51 |
||
| replacement | |||||
|
2
|
2
6G5-45251-02-00 Anode |
6G5-45251-02-00 |
from US $36.34 |
||
|
3
|
3
6G5-44526-00-00 Plate |
6G5-44526-00-00 |
from US $2.32 |
||
|
4
|
4
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
4
|
4
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
4
|
4
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.07 |
||
|
5
|
5
6H1-82148-00-00 Wire, Lead 4 |
6H1-82148-00-00 |
US $10.63 |
||
| replacement | |||||
|
5
|
5
6T4-82117-00-00 Wire, Lead |
6T4-82117-00-00 |
from US $9.92 |
||
|
6
|
6
97595-06510-00 Bolt, With Washer(61B) |
97595-06510-00 |
US $3.68 |
||
| replacements | |||||
|
6
|
6
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
6
|
6
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
7
|
7
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $5.64 |
||
|
8
|
8
97985-06212-00 Screw, With Washer |
97985-06212-00 |
US $1.42 |
||
| replacement | |||||
|
8
|
8
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
9
|
9
61A-43112-21-EK
Bracket, Clamp
|
61A-43112-21-EK |
— | ||
|
10
|
10
6E5-43131-01-00 Bolt, Clamp Bracket |
6E5-43131-01-00 |
US $105.83 |
||
| replacement | |||||
|
10
|
10
6R3-43131-00-00 Bolt, Clamp Bracket |
6R3-43131-00-00 |
from US $105.83 |
||
|
11
|
11
90386-25M31-00 Bush |
90386-25M31-00 |
from US $3.64 |
||
|
12
|
12
90201-26M59-00 Washer, Plate |
90201-26M59-00 |
from US $2.66 |
||
|
13
|
13
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
13
|
13
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
14
|
14
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
14
|
14
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.62 |
||
|
15
|
15
97595-10645-00 Bolt, With Washer |
97595-10645-00 |
US $5.81 |
||
| replacement | |||||
|
15
|
15
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
16
|
16
61A-43164-00-00
Rod, Tilt Lock
|
61A-43164-00-00 |
— | ||
|
17
|
17
95780-16300-00
Nut, Flange
|
95780-16300-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
61A-43311-20-EK
Bracket, Swivel 1
|
61A-43311-20-EK |
— | ||
| replacement | |||||
|
18
|
18
61A-43311-21-EK
Bracket, Swivel 1
|
61A-43311-21-EK |
— | ||
|
19
|
19
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
20
|
20
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
21
|
21
61A-82147-20-00 Wire, Lead 4 |
61A-82147-20-00 |
US $16.43 |
||
| replacement | |||||
|
21
|
21
61A-82147-30-00 Wire, Lead 4 |
61A-82147-30-00 |
from US $16.43 |
||
|
22
|
22
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
23
|
23
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
23
|
23
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
24
|
24
61A-43181-01-00 Lever, Tilt Stop 1 |
61A-43181-01-00 |
from US $59.96 |
||
|
25
|
25
6G5-43185-02-00 Lever, Tilt Stop 2 |
6G5-43185-02-00 |
from US $50.92 |
||
|
26
|
26
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2 |
||
|
27
|
27
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.98 |
||
|
28
|
28
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.40 |
||
|
29
|
29
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
30
|
30
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.34 |
||
|
31
|
31
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $3.68 |
||
|
32
|
32
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
33
|
33
90386-18M63-00 Bush |
90386-18M63-00 |
from US $3.64 |
||
|
34
|
34
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.32 |
||
|
35
|
35
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
35
|
35
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $2.98 |
||
|
36
|
36
61A-42510-20-EK
Steering Bracketass''y
|
61A-42510-20-EK |
— | ||
| replacement | |||||
|
36
|
36
69J-42510-00-EK Steering Bracket |
69J-42510-00-EK |
US $907.55 |
||
|
37
|
37
90201-40M00-00 Washer, Plate |
90201-40M00-00 |
from US $5.81 |
||
|
38
|
38
90386-39M89-00 Bush |
90386-39M89-00 |
from US $10.20 |
||
|
39
|
39
93210-35321-00 O-Ring |
93210-35321-00 |
from US $3.32 |
||
|
40
|
40
90202-40M47-00 Washer, Plate |
90202-40M47-00 |
from US $4.68 |
||
|
41
|
41
61A-44551-00-EK
Housing, Lwr, Mountlower Mount Rubber
|
61A-44551-00-EK |
— | ||
| replacement | |||||
|
41
|
41
61A-44551-01-EK
Housing, Lower Mount
|
61A-44551-01-EK |
— | ||
|
42
|
42
93410-37M04-00 Circlip |
93410-37M04-00 |
from US $3.64 |
||
|
43
|
43
6E5-44575-00-00 Damper, Lower Mount Rubber |
6E5-44575-00-00 |
US $14.03 |
||
|
44
|
44
61A-44555-00-94 Mt.rubber Lwr.sidelower Side |
61A-44555-00-94 |
US $128.07 |
||
| replacement | |||||
|
44
|
44
61A-44555-01-00 Mount Damper, Lower Side |
61A-44555-01-00 |
from US $128.07 |
||
|
45
|
45
90202-32M19-00 Washer, Plate |
90202-32M19-00 |
from US $4.96 |
||
|
46
|
46
90201-16M55-00 Washer, Plate |
90201-16M55-00 |
from US $4.96 |
||
|
47
|
47
6E5-82149-00-00 Wire, Lead 3 |
6E5-82149-00-00 |
from US $7.28 |
||
|
48
|
48
90109-14M48-00 Bolt |
90109-14M48-00 |
US $29.75 |
||
| replacement | |||||
|
48
|
48
90101-14002-00 Bolt |
90101-14002-00 |
from US $27.60 |
||
|
49
|
49
90201-15M58-00 Washer, Plate |
90201-15M58-00 |
from US $4.30 |
||
|
50
|
50
95380-14800-00 Nut |
95380-14800-00 |
from US $9.92 |
||
|
51
|
51
92990-14600-00 Washer |
92990-14600-00 |
from US $5.30 |
||
|
52
|
52
61A-44552-00-94 Housing, Lower Mount Rubber 2 |
61A-44552-00-94 |
US $82.90 |
||
| replacement | |||||
|
52
|
52
61A-44552-01-CA Housing, Lower Mount Rubber 2 |
61A-44552-01-CA |
from US $82.90 |
||
|
53
|
53
97595-10545-00 Bolt, With Washer |
97595-10545-00 |
US $3.40 |
||
| replacement | |||||
|
53
|
53
97E95-10545-00 Bolt, Hexagon W/w Deep Recess |
97E95-10545-00 |
from US $2.97 |
||
|
54
|
54
61A-44553-00-EK Cover, Lwr.mount |
61A-44553-00-EK |
US $28.49 |
||
| replacement | |||||
|
54
|
54
61A-44553-02-EK MOUNT DAMPER, LOWER |
61A-44553-02-EK |
from US $28.49 |
||
|
55
|
55
6A0-15789-00-00
Damper
|
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
55
|
55
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
56
|
56
61A-44514-00-94 Mount Damper, Upper Side |
61A-44514-00-94 |
US $153.36 |
||
| replacement | |||||
|
56
|
56
61A-44514-00-00 HSNG,LWR |
61A-44514-00-00 |
from US $130.71 |
||
|
57
|
57
90201-16M01-00 Washer, Plate |
90201-16M01-00 |
from US $4.96 |
||
|
58
|
58
90202-28M46-00 Washer, Plate |
90202-28M46-00 |
from US $2.69 |
||
|
59
|
59
90201-28M01-00 Washer, Plate |
90201-28M01-00 |
from US $4.39 |
||
|
60
|
60
90109-14M10-00 Bolt |
90109-14M10-00 |
US $28.76 |
||
| replacement | |||||
|
60
|
60
90101-14003-00 Bolt |
90101-14003-00 |
from US $24.80 |
||
|
61
|
61
90185-14M00-00 Nut, Self-Locking |
90185-14M00-00 |
from US $12.89 |
||
|
62
|
62
92990-14600-00 Washer |
92990-14600-00 |
from US $5.30 |
||
|
63
|
63
61A-44533-00-00 Dampermount Rubber |
61A-44533-00-00 |
US $12.25 |
||
|
64
|
64
61A-44511-00-94 Cover, Upper Mount |
61A-44511-00-94 |
US $77.51 |
||
| replacement | |||||
|
64
|
64
61A-44511-01-00 Cover, Upper Mount |
61A-44511-01-00 |
from US $42.93 |
||
|
65
|
65
97595-10545-00 Bolt, With Washer |
97595-10545-00 |
US $3.40 |
||
| replacement | |||||
|
65
|
65
97E95-10545-00 Bolt, Hexagon W/w Deep Recess |
97E95-10545-00 |
from US $2.97 |
||
|
66
|
66
90101-12M03-00 Bolt (L:115Mm) |
90101-12M03-00 |
from US $20.26 |
||
|
66
|
66
90101-12M05-00 Bolt (L:130Mm) |
90101-12M05-00 |
US $18.42 |
||
| replacement | |||||
|
66
|
66
90101-12065-00 Bolt |
90101-12065-00 |
from US $18.42 |
||
|
67
|
67
90201-13M01-00 Washer, Plate |
90201-13M01-00 |
from US $3.24 |
||
|
68
|
68
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
69
|
69
95380-12600-00 Nut |
95380-12600-00 |
from US $4.96 |
||
