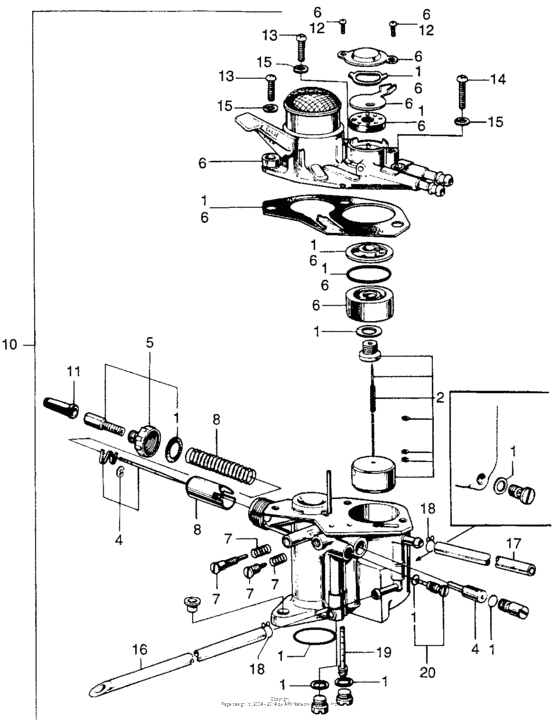

Carburetor Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-041-680 Packing set |
16010-041-680 |
US $17.31 |
||
|
2
|
2
16011-041-721
Valve set,float
|
16011-041-721 |
— | ||
|
4
|
4
16012-087-791
Needle set, jet
|
16012-087-791 |
— | ||
|
5
|
5
16014-039-004
Top set
|
16014-039-004 |
— | ||
|
6
|
6
16015-086-004
Chamber set,float
|
16015-086-004 |
— | ||
|
7
|
7
16016-040-680 Screw set a |
16016-040-680 |
US $13.66 |
||
|
8
|
8
16022-087-790
Valve set,throt.
|
16022-087-790 |
— | ||
|
10
|
10
16100-087-793
Carburetor assy.
Use up to Engine SN 034799M |
16100-087-793 |
— | ||
|
11
|
11
16118-166-004 Cap, cable sealingUse up to Engine SN 034799M |
16118-166-004 |
from US $5.77 |
||
|
12
|
12
93500-030-050-A Screw, pan, 3x5 |
93500-030-050-A |
from US $0.38 |
||
|
13
|
13
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
14
|
14
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
15
|
15
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
16
|
16
95001-350-0360M Bulk hose (3.5x3000)Use from Engine SN 034800 |
95001-350-0360M |
from US $14.50 |
||
|
17
|
17
95001-350-0360M Bulk hose (3.5x3000)Use from Engine SN 034800 |
95001-350-0360M |
from US $14.50 |
||
|
18
|
18
95002-02070 ClipTUBE(B7) Use from Engine SN 034800 |
95002-02070 |
from US $0.44 |
||
|
19
|
19
99114-040-0751
Jet,main #75
|
99114-040-0751 |
— | ||
|
20
|
20
99203-041-035-2
Jet set,slow
|
99203-041-035-2 |
— |
