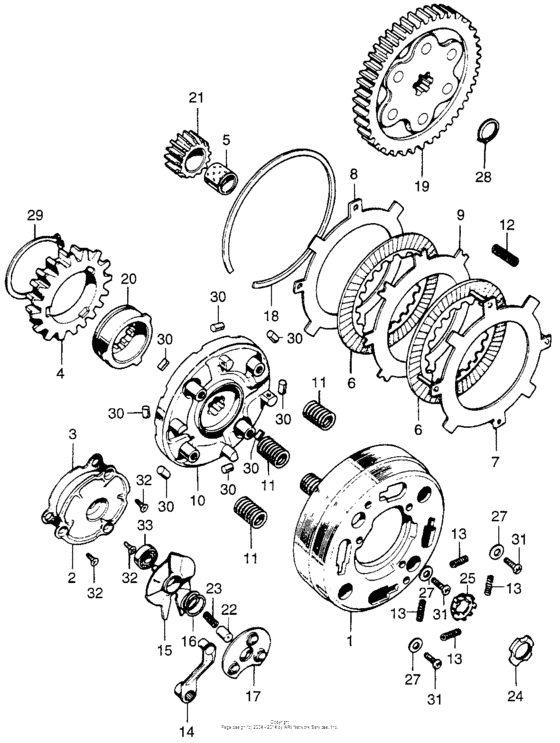

Clutch Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22101-040-030
Clutch outer
|
22101-040-030 |
— | ||
|
2
|
2
22111-040-000
Cvr, clutch (outer)
|
22111-040-000 |
— | ||
|
3
|
3
22119-040-010 Gasket, clutch cover |
22119-040-010 |
from US $3.40 |
||
|
4
|
4
22120-040-020
Center, clutch
|
22120-040-020 |
— | ||
|
5
|
5
22131-035-030 Guide, clutch center |
22131-035-030 |
from US $11.25 |
||
|
6
|
6
22201-165-951 Disk, cl friction |
22201-165-951 |
from US $14.55 |
||
|
7
|
7
22310-GB0-910 Plate a, clutch |
22310-GB0-910 |
from US $11.40 |
||
|
8
|
8
22321-046-020 Plate b, clutch |
22321-046-020 |
from US $11.99 |
||
|
9
|
9
22331-041-000 Plate c, clutch |
22331-041-000 |
from US $7.53 |
||
|
10
|
10
22351-040-070
Plate comp,drive
|
22351-040-070 |
— | ||
|
11
|
11
22401-087-000
Spring clutch
|
22401-087-000 |
— | ||
|
12
|
12
22411-001-010
Spring, clutch
|
22411-001-010 |
— | ||
|
13
|
13
22421-040-000 Spring |
22421-040-000 |
from US $2.59 |
||
|
14
|
14
22811-040-020 Lever, clutch |
22811-040-020 |
from US $20.40 |
||
|
15
|
15
22820-046-010 Plate,clutch camUse up to Engine SN 033351M |
22820-046-010 |
US $20.62 |
||
|
15
|
15
22820-918-000 Plate,clutch camUse from Engine SN 033352M |
22820-918-000 |
from US $15.30 |
||
| replacement | |||||
|
15
|
15
22820-918-020 Plate, clutch camUse from Engine SN 033352M |
22820-918-020 |
from US $12.43 |
||
|
15
|
15
22820-918-010 Plate, clutch camUse from Engine SN 033352M |
22820-918-010 |
from US $13.47 |
||
| replacement | |||||
|
15
|
15
22820-918-020 Plate, clutch camUse from Engine SN 033352M |
22820-918-020 |
from US $12.43 |
||
|
15
|
15
22820-918-020 Plate, clutch camUse from Engine SN 033352M |
22820-918-020 |
from US $12.43 |
||
|
16
|
16
22825-046-000 Spring, cam plate side |
22825-046-000 |
from US $2.15 |
||
|
17
|
17
22860-046-000 Retainer, clutch ball |
22860-046-000 |
from US $5.92 |
||
|
18
|
18
22901-001-000 Set-ring (101.5mm) |
22901-001-000 |
from US $3.70 |
||
|
19
|
19
23110-GCF-670 Gear (67t)Use up to Engine SN 051861M |
23110-GCF-670 |
from US $77.52 |
||
|
19
|
19
23110-087-000 Gear,drivenUse up to Engine SN 051861M |
23110-087-000 |
from US $107.12 |
||
| replacement | |||||
|
19
|
19
23110-GCF-670 Gear (67t)Use up to Engine SN 051861M |
23110-GCF-670 |
from US $77.52 |
||
|
20
|
20
23112-041-030 Outer,drive gear |
23112-041-030 |
US $29.99 |
||
|
21
|
21
23120-036-010 Gear, primary |
23120-036-010 |
US $30.46 |
||
|
22
|
22
25551-918-007 Through, oilUse up to Engine SN 033351M |
25551-918-007 |
US $8.14 |
||
| replacement | |||||
|
22
|
22
25551-GEL-A80 Through, oilUse up to Engine SN 033351M |
25551-GEL-A80 |
from US $3.89 |
||
|
23
|
23
25555-046-000 Spring, oil guide |
25555-046-000 |
US $2.37 |
||
|
24
|
24
90231-087-010 Nut, lock (14mm) |
90231-087-010 |
from US $3.48 |
||
|
25
|
25
90431-086-000 Washer, lock (14mm) |
90431-086-000 |
from US $2.29 |
||
|
27
|
27
90483-041-000 Washer, stopper |
90483-041-000 |
from US $2.29 |
||
|
28
|
28
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
29
|
29
90602-041-000
Circrip 45mm
|
90602-041-000 |
— | ||
|
30
|
30
91102-041-007 Roller (8x10) |
91102-041-007 |
US $2.44 |
||
|
31
|
31
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
32
|
32
93600-050-100-A Screw, flat, 5x10 |
93600-050-100-A |
from US $0.37 |
||
|
33
|
33
96100-6000000 Bearing, radial ball, 6000 |
96100-6000000 |
from US $4.74 |
||
