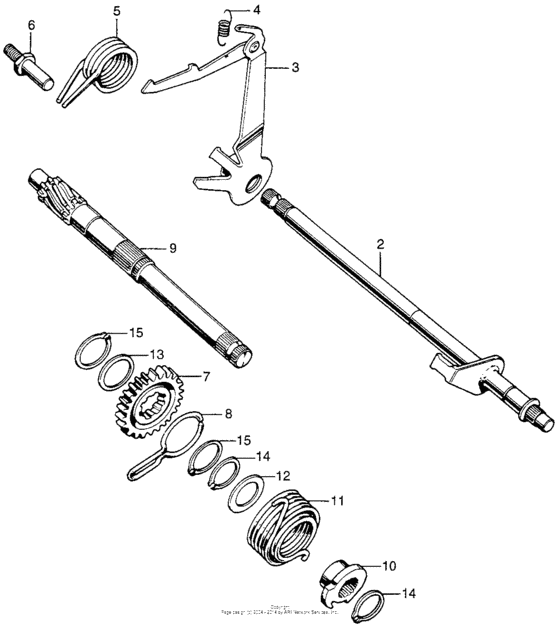

Kick starter + gear charge Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
24610-039-020
Spindle,gearshift
Use up to Engine SN 051461M |
24610-039-020 |
— | ||
|
2
|
2
24610-092-670 Spindle, gearshiftUse from Engine SN 051462M |
24610-092-670 |
from US $31.01 |
||
|
3
|
3
24630-086-030 Arm comp.,gear sh |
24630-086-030 |
from US $20.66 |
||
|
4
|
4
24641-041-000 Spring |
24641-041-000 |
from US $2.87 |
||
|
5
|
5
24651-041-000 Spring |
24651-041-000 |
from US $3.92 |
||
|
6
|
6
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
7
|
7
28211-040-035
Pinion (22t)
|
28211-040-035 |
— | ||
|
8
|
8
28223-035-035
Spring
|
28223-035-035 |
— | ||
|
9
|
9
28251-035-065 Spindle |
28251-035-065 |
US $58.48 |
||
| replacement | |||||
|
9
|
9
28251-141-000 Spindle |
28251-141-000 |
US $58.48 |
||
|
9
|
9
28251-141-000 Spindle |
28251-141-000 |
US $58.48 |
||
|
10
|
10
28262-041-731 Retainer |
28262-041-731 |
from US $11.99 |
||
|
11
|
11
28281-035-003 Spring, kick starter |
28281-035-003 |
from US $6.36 |
||
|
12
|
12
90451-040-000
Washer, thrust, 17mm
|
90451-040-000 |
— | ||
|
13
|
13
90482-035-025
Washer (20mm)
|
90482-035-025 |
— | ||
|
14
|
14
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
15
|
15
90605-200-000 Set-ring (20mm) |
90605-200-000 |
from US $3.11 |
||
