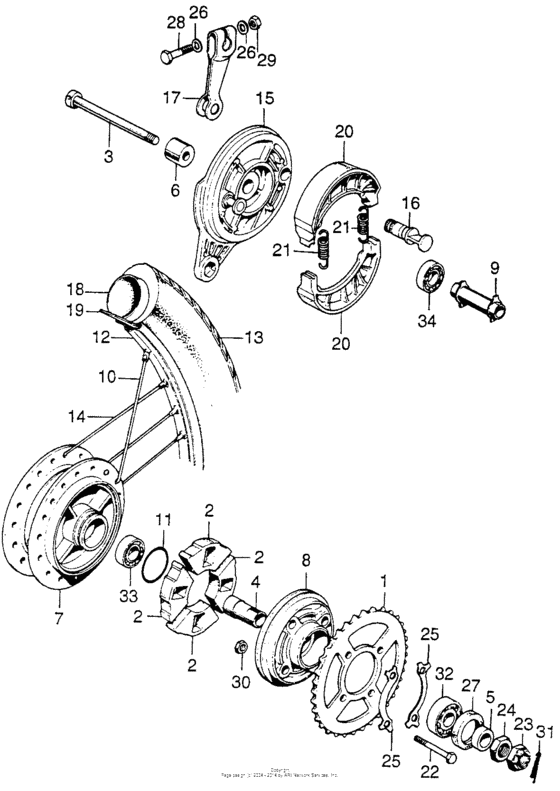

Rear wheel Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06450-178-932 Shoe set, brake |
06450-178-932 |
from US $33.07 |
||
|
1
|
1
41201-GT0-750 Sprocket,final dr |
41201-GT0-750 |
from US $29.78 |
||
|
2
|
2
41241-001-040 Damper rr wheel |
41241-001-040 |
US $6.31 |
||
| replacement | |||||
|
2
|
2
41241-001-050 Damper rr wheel |
41241-001-050 |
from US $6.07 |
||
|
2
|
2
41241-001-050 Damper rr wheel |
41241-001-050 |
from US $6.07 |
||
|
3
|
3
42301-121-760 Axle, rr. wheelUse up to Frame SN 033051M |
42301-121-760 |
US $17.41 |
||
|
4
|
4
42303-041-000 Sleeve,axle |
42303-041-000 |
from US $13.02 |
||
|
5
|
5
42304-040-000 Collar,sleeve |
42304-040-000 |
US $5.48 |
||
|
6
|
6
42313-GBJ-000 Collar, rr. |
42313-GBJ-000 |
US $8.58 |
||
|
7
|
7
42601-102-670
Hub,rear wheel
|
42601-102-670 |
— | ||
|
8
|
8
42610-041-000
Frange,driven
|
42610-041-000 |
— | ||
|
9
|
9
42620-001-010
Collar
|
42620-001-010 |
— | ||
|
10
|
10
42638-001-020 Spoke b, rear |
42638-001-020 |
from US $5.03 |
||
|
11
|
11
42653-001-004 O-ring (40.5x3) |
42653-001-004 |
from US $2.89 |
||
|
12
|
12
42701-001-073 Rim, wheel |
42701-001-073 |
US $55.76 |
||
|
13
|
13
42711-041-000 Tire,225-17 nt-86 |
42711-041-000 |
US $36.13 |
||
|
14
|
14
97251-421-631-3 Spoke b 10x161.5 |
97251-421-631-3 |
from US $2 |
||
|
15
|
15
43100-098-950
Panel,rear brake
|
43100-098-950 |
— | ||
|
16
|
16
43141-028-010
Cam,rear brake
|
43141-028-010 |
— | ||
|
17
|
17
43410-041-020
Arm,rear brake
|
43410-041-020 |
— | ||
|
18
|
18
42712-041-154
Tube,tire
|
42712-041-154 |
— | ||
|
19
|
19
42713-MG7-003 Flap,tire |
42713-MG7-003 |
US $9.79 |
||
|
19
|
19
42713-102-005 Flap,tire inoue |
42713-102-005 |
US $9.55 |
||
|
20
|
20
45120-001-010
Shoe, brake
|
45120-001-010 |
— | ||
|
21
|
21
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
22
|
22
90128-001-030 Bolt, sprkt. |
90128-001-030 |
US $5.18 |
||
|
23
|
23
90305-046-000
Nut,axle
Use up to Frame SN 033051M |
90305-046-000 |
— | ||
|
23
|
23
94011-120-000-S Nut, castle, 12mmUse from Frame SN 033052M |
94011-120-000-S |
from US $1.04 |
||
|
24
|
24
90307-001-000 Nut, rear axle |
90307-001-000 |
US $3.85 |
||
|
25
|
25
90522-001-000 Washer, tongued |
90522-001-000 |
US $4.04 |
||
|
25
|
25
94108-11000 Washer a1,tangued |
94108-11000 |
from US $0.52 |
||
|
26
|
26
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
27
|
27
90753-028-013
Oil seal,27x40x6
|
90753-028-013 |
— | ||
|
28
|
28
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
28
|
28
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
28
|
28
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
29
|
29
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
30
|
30
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
31
|
31
94201-30250 PinSPLIT, 3.0X25 Use from Frame SN 033052M |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
31
|
31
9420130450 Pin, cotter (3.0x45)Use from Frame SN 033052M |
9420130450 |
from US $0.44 |
||
|
31
|
31
9420130450 Pin, cotter (3.0x45)Use from Frame SN 033052M |
9420130450 |
from US $0.44 |
||
|
32
|
32
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
||
|
33
|
33
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
|
34
|
34
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
