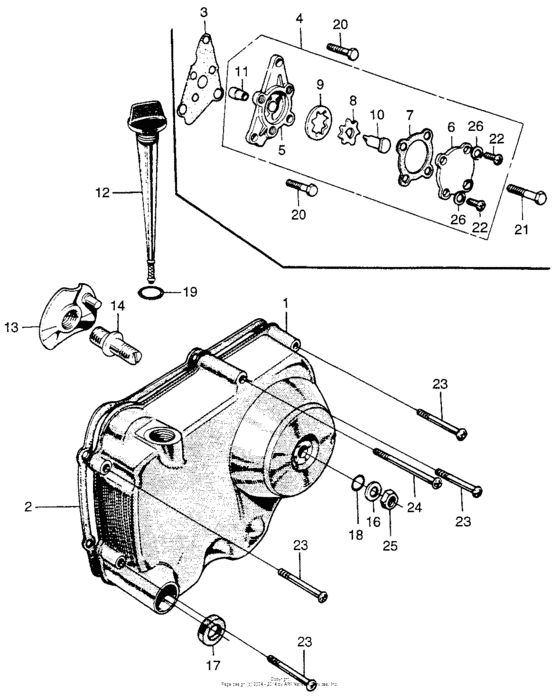

Right crankcase cover + oilpump Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-040-040
Cover, r. crankcase
|
11330-040-040 |
— | ||
|
2
|
2
11394-GW8-681 Gasket, r |
11394-GW8-681 |
US $14.01 |
||
| replacement | |||||
|
2
|
2
11394-GW8-682 Gasket, r |
11394-GW8-682 |
from US $12.58 |
||
|
3
|
3
15119-035-020 Gasket |
15119-035-020 |
from US $2.29 |
||
|
4
|
4
15300-035-000
Pump assy,oil
|
15300-035-000 |
— | ||
|
5
|
5
15311-035-013
Pump body,oil
|
15311-035-013 |
— | ||
|
6
|
6
15321-035-000
Cover, Oil Pump
|
15321-035-000 |
— | ||
|
7
|
7
15329-035-003 Gasket |
15329-035-003 |
from US $3.48 |
||
|
8
|
8
15331-035-004
Rotor,pump inner
|
15331-035-004 |
— | ||
|
9
|
9
15332-035-004
Rotor,pump outer
|
15332-035-004 |
— | ||
|
10
|
10
15382-035-003
Shaft,pump drive
|
15382-035-003 |
— | ||
|
11
|
11
15383-035-003
Pin,oil pump
|
15383-035-003 |
— | ||
|
12
|
12
15650-040-020
Gauge,oil
|
15650-040-020 |
— | ||
|
13
|
13
22830-041-000 Plate comp., clutch lifter |
22830-041-000 |
from US $10.21 |
||
|
14
|
14
22846-040-010 Bolt, clutch adj |
22846-040-010 |
from US $7.10 |
||
|
16
|
16
90485-040-000 Washer (8mm) |
90485-040-000 |
from US $1.92 |
||
|
17
|
17
91202-KFL-841 Oil seal 13.8x24x5 |
91202-KFL-841 |
from US $4.51 |
||
|
18
|
18
91306-HB3-003 O-ring (8x1.7) |
91306-HB3-003 |
from US $2.15 |
||
|
19
|
19
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
19
|
19
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4.14 |
||
|
20
|
20
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
21
|
21
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
22
|
22
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
23
|
23
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
24
|
24
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
25
|
25
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
26
|
26
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
