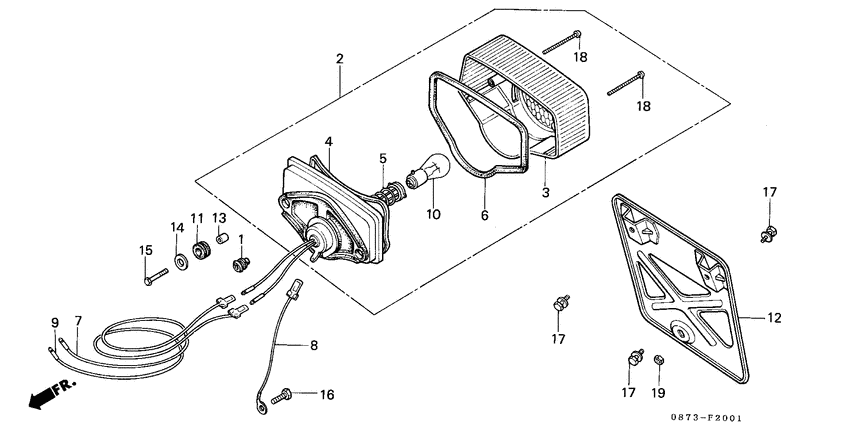

Taillight (2) Diagram Honda C70
- Year
- 1977
- Model code
- C70
- Sales region
- England
- Frame
- C706115364 - C706193904
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32982-011-000 Grommet |
32982-011-000 |
US $4.59 |
||
|
2
|
2
33701-087-741
Unit,tail light
|
33701-087-741 |
— | ||
|
3
|
3
33702-323-604 Lens,taillight |
33702-323-604 |
US $37.47 |
||
|
4
|
4
33703-087-740 Base,tail light |
33703-087-740 |
US $40.70 |
||
|
5
|
5
33708-077-671 Tial-light,cord |
33708-077-671 |
US $9.32 |
||
|
6
|
6
33709-077-671 Packing lens |
33709-077-671 |
from US $2.74 |
||
|
7
|
7
33711-028-000
Subcord,taillight
|
33711-028-000 |
— | ||
|
8
|
8
33712-098-931
Cord,tail & earth
|
33712-098-931 |
— | ||
| replacement | |||||
|
8
|
8
33712-098-970
Cord tail & earth
|
33712-098-970 |
— | ||
|
9
|
9
33713-087-720
Sub cord,stop lt.
|
33713-087-720 |
— | ||
|
10
|
10
34906-098-931 Bulb,stop & tail |
34906-098-931 |
US $3.85 |
||
|
11
|
11
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
12
|
12
84701-041-600-B Bracket no plate |
84701-041-600-B |
US $27.74 |
||
|
12
|
12
84701-046-600
Bracket no plate
|
84701-046-600 |
— | ||
|
13
|
13
84706-378-000
Collar,tail light
|
84706-378-000 |
— | ||
|
14
|
14
90581-342-000 Washer, 20mm |
90581-342-000 |
from US $1.67 |
||
| replacement | |||||
|
14
|
14
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
15
|
15
92000-05025-0A Bolt,hex 5x25 |
92000-05025-0A |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
92101-05025-0A Bolt, hex. (5x25) |
92101-05025-0A |
from US $0.47 |
||
|
16
|
16
92000-06006 Bolt, hex., 6x6 |
92000-06006 |
from US $0.44 |
||
| replacement | |||||
|
16
|
16
92101-06006-0A Bolt, hex., 6x6 |
92101-06006-0A |
from US $0.44 |
||
|
17
|
17
93481-060-120-0 Bolt-washer, 6x12 |
93481-060-120-0 |
from US $0.52 |
||
| replacement | |||||
|
17
|
17
93401-0601200 Bolt-washer (6x12) |
93401-0601200 |
from US $0.52 |
||
|
18
|
18
93500-040-504-J Screw cross 4x50 |
93500-040-504-J |
US $0.81 |
||
|
19
|
19
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
19
|
19
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
