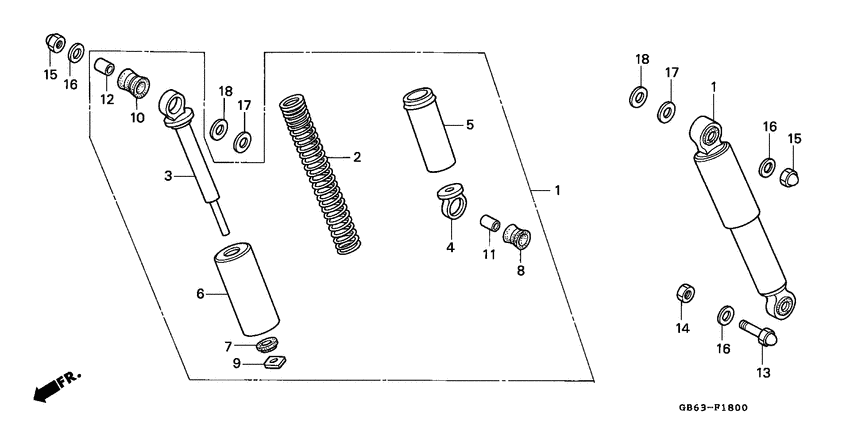

Rear cushion (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-174-671ZD
Cush*r-23/nh-24*
|
52400-174-671ZD |
— | ||
|
1
|
1
52400-174-671ZE
Cush*pb-52/nh-24*
|
52400-174-671ZE |
— | ||
|
2
|
2
52401-174-671
Spring,rr.cushion
|
52401-174-671 |
— | ||
|
3
|
3
52410-173-000
Damper,rr
|
52410-173-000 |
— | ||
|
4
|
4
52420-171-000
Metal,cush bottom
|
52420-171-000 |
— | ||
|
5
|
5
52423-174-671ZA
Case,rr.*nh-24*
|
52423-174-671ZA |
— | ||
|
6
|
6
52460-174-671ZD
Case,cush.*r-23*
|
52460-174-671ZD |
— | ||
|
6
|
6
52460-174-671ZE
Case,cush.*pb-52*
|
52460-174-671ZE |
— | ||
|
7
|
7
52475-031-010
Rubber,cushion
|
52475-031-010 |
— | ||
|
8
|
8
52476-001-020 Bush, rr. |
52476-001-020 |
from US $3.02 |
||
|
9
|
9
52481-173-000 Nut,lock 8mm |
52481-173-000 |
US $4.29 |
||
|
10
|
10
52485-173-000
Bush,rub upper
|
52485-173-000 |
— | ||
|
11
|
11
52486-001-000 Collar |
52486-001-000 |
from US $3.18 |
||
|
12
|
12
52488-001-010 Collar, cushion |
52488-001-010 |
US $3.11 |
||
|
13
|
13
90129-086-000 Bolt,hex 10x45 |
90129-086-000 |
US $8.32 |
||
|
14
|
14
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
15
|
15
94021-100000S Nut, cap, 10mm |
94021-100000S |
from US $0.81 |
||
|
16
|
16
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
17
|
17
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
18
|
18
94102-12000 WasherPLAIN, 12MM |
94102-12000 |
from US $0.44 |
