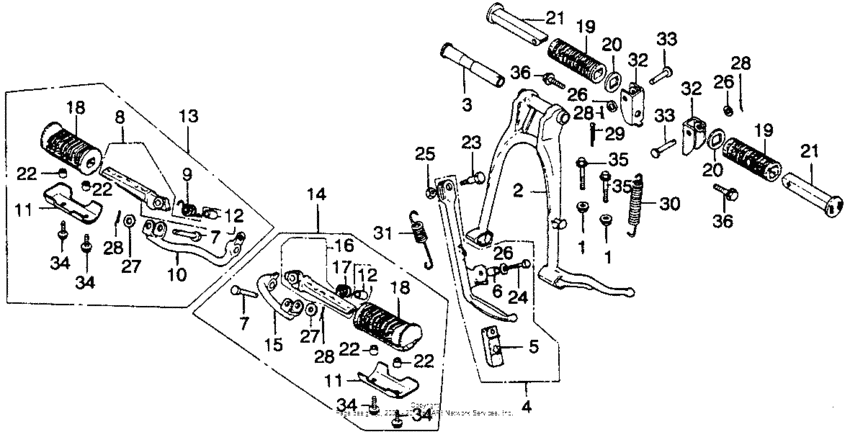

Step + stands Diagram Honda CB360
- Model code
- CB360T A
- Sales region
- USA
- Frame
- CB3602100001 - CB3602123938
- Engine Capacity
- 360
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
2
|
2
50500-369-740-B
Stand comp.,main
|
50500-369-740-B |
— | ||
|
3
|
3
50526-399-000 Shaft,stand pivot |
50526-399-000 |
US $21.35 |
||
|
4
|
4
50540-369-741
Bar, side stand
|
50540-369-741 |
— | ||
|
5
|
5
50548-356-700 Rubber, stand |
50548-356-700 |
from US $7.15 |
||
|
6
|
6
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
7
|
7
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
8
|
8
50616-369-670-B Arm,r.step |
50616-369-670-B |
US $36.58 |
||
|
9
|
9
50617-283-000
Spring, return
|
50617-283-000 |
— | ||
|
10
|
10
50618-369-670-B
Bar,r.step
|
50618-369-670-B |
— | ||
|
11
|
11
50619-369-000
Stopper,stepruber
|
50619-369-000 |
— | ||
|
12
|
12
50620-310-000
Inner pipe,step
|
50620-310-000 |
— | ||
|
13
|
13
50630-369-670-B Step assy., right |
50630-369-670-B |
US $91.90 |
||
|
14
|
14
50640-369-670-B
Step assy., left
|
50640-369-670-B |
— | ||
|
15
|
15
50641-369-670-B
Bar,l step
|
50641-369-670-B |
— | ||
|
16
|
16
50642-369-670-B
Arm,l step
|
50642-369-670-B |
— | ||
|
17
|
17
50644-283-000
Spring, return
|
50644-283-000 |
— | ||
|
18
|
18
50661-369-000 Rubber,step |
50661-369-000 |
US $38.08 |
||
|
19
|
19
50716-371-660 Rub, pillion footpeg |
50716-371-660 |
from US $17.32 |
||
|
20
|
20
50712-377-000 Washer,pillion |
50712-377-000 |
US $5.48 |
||
|
21
|
21
50715-MA6-000 Bar,pillion step |
50715-MA6-000 |
from US $22.03 |
||
|
22
|
22
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
23
|
23
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
24
|
24
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
25
|
25
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
28
|
28
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
29
|
29
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
30
|
30
95014-71602 Spring,main stand |
95014-71602 |
US $3.03 |
||
|
31
|
31
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
32
|
32
95015-72100
Bracket,pillion
|
95015-72100 |
— | ||
|
33
|
33
9501582000 Pin b |
9501582000 |
from US $1.55 |
||
|
34
|
34
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
||
|
35
|
35
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
36
|
36
95701-100-280-0 Bolt, flange, 10x28 |
95701-100-280-0 |
from US $0.81 |
