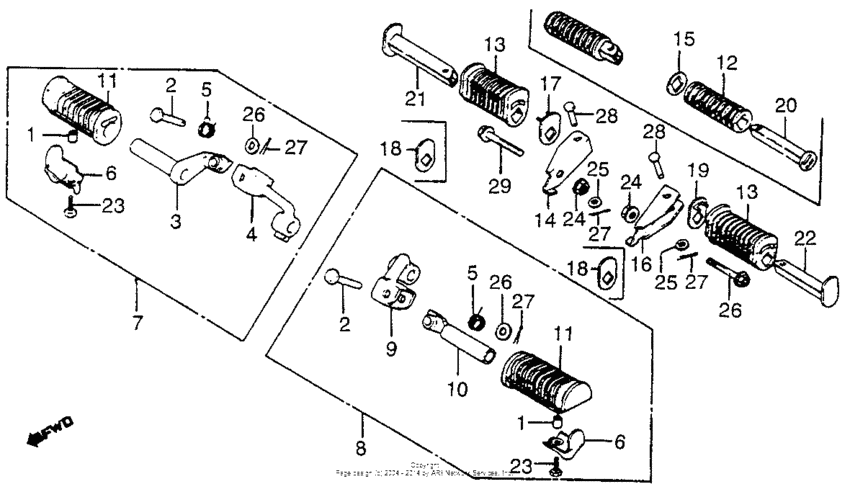

Step Diagram Honda CB750
- Year
- 1982
- Model code
- CB750C A
- Sales region
- USA
- Frame
- JH2RC011*CM200003 - JH2RC011*CM206708
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37243-323-000 Collar,meter set |
37243-323-000 |
US $3.33 |
||
|
2
|
2
50716-445-000
Pin,step joint
|
50716-445-000 |
— | ||
|
3
|
3
50642-MA5-770
Arm comp.,r.step
|
50642-MA5-770 |
— | ||
|
4
|
4
50615-425-730
Bar comp.,r.step
|
50615-425-730 |
— | ||
|
5
|
5
50617-438-000
Spg.,step return
|
50617-438-000 |
— | ||
|
6
|
6
50619-425-010 Stopper,rubber |
50619-425-010 |
US $7.10 |
||
|
7
|
7
50630-MA5-770 Step assy.,r.main |
50630-MA5-770 |
US $66.11 |
||
|
8
|
8
50640-MA5-770
Step assy.,l.main
|
50640-MA5-770 |
— | ||
|
9
|
9
50641-425-730
Barcomp.,l.step
|
50641-425-730 |
— | ||
|
10
|
10
50650-MA5-770
Arm comp.,l.step
|
50650-MA5-770 |
— | ||
|
11
|
11
50661-425-670 Rubber,step |
50661-425-670 |
from US $12.58 |
||
|
13
|
13
50710-461-770 Rubber |
50710-461-770 |
from US $10.18 |
||
|
14
|
14
50711-425-000
Bracket,r.p.step
|
50711-425-000 |
— | ||
|
16
|
16
50712-425-000
Bracket,l.p.step
|
50712-425-000 |
— | ||
|
17
|
17
50712-438-730 Washer, r |
50712-438-730 |
US $8.01 |
||
|
19
|
19
50713-438-730 Washer, l |
50713-438-730 |
US $8.01 |
||
|
21
|
21
50715-461-770 Bar, r. pillion step |
50715-461-770 |
from US $22.82 |
||
|
22
|
22
50718-461-770 Bar, l. pillion step |
50718-461-770 |
from US $22.82 |
||
|
23
|
23
92101-06018-0A Bolt, hex., 6x18 |
92101-06018-0A |
from US $0.44 |
||
|
24
|
24
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
27
|
27
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
28
|
28
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
|
29
|
29
95701-1004000 Bolt, flange, 10x40 |
95701-1004000 |
from US $0.81 |
