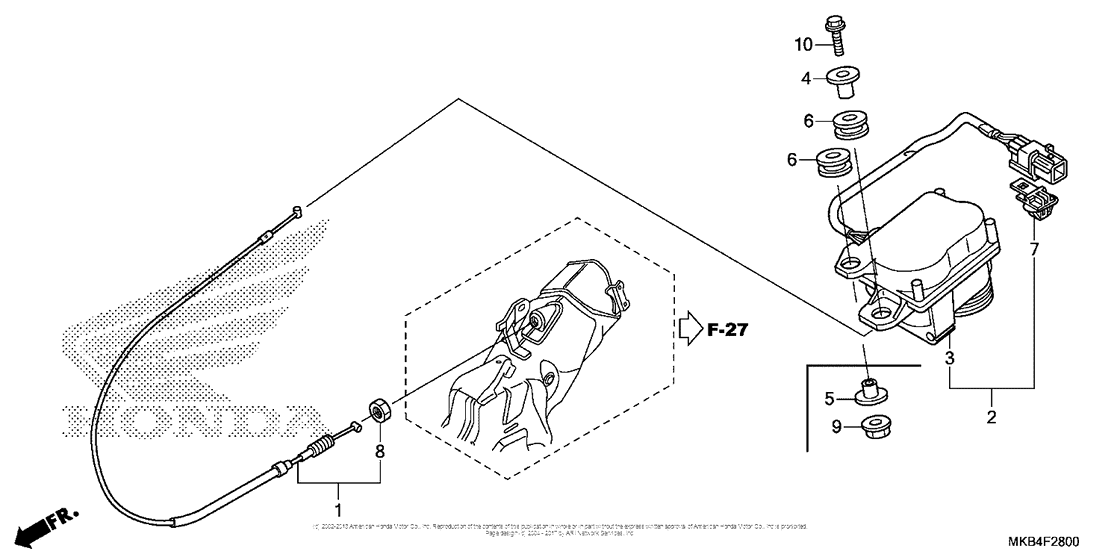

Servo Motor Diagram Honda CBR1000 CBR1000RR (ABS) Fireblade
- Year
- 2015
- Model code
- CBR1000RA 5AC
- Sales region
- USA
- Frame
- JH2SC598 - FK600001
- Engine Capacity
- 1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18910-MFL-D00 Cable, ex. valve |
18910-MFL-D00 |
from US $44.65 |
||
|
3
|
3
31420-MFL-D01 Motor assy,servo |
31420-MFL-D01 |
from US $291.47 |
||
|
5
|
5
50324-425-010 Collar (6.3x13) |
50324-425-010 |
from US $4 |
||
|
6
|
6
77205-KM4-000 Grommet |
77205-KM4-000 |
from US $2.22 |
||
|
8
|
8
94002-104900S Nut, hex. (10mm) |
94002-104900S |
from US $1.04 |
||
|
9
|
9
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
