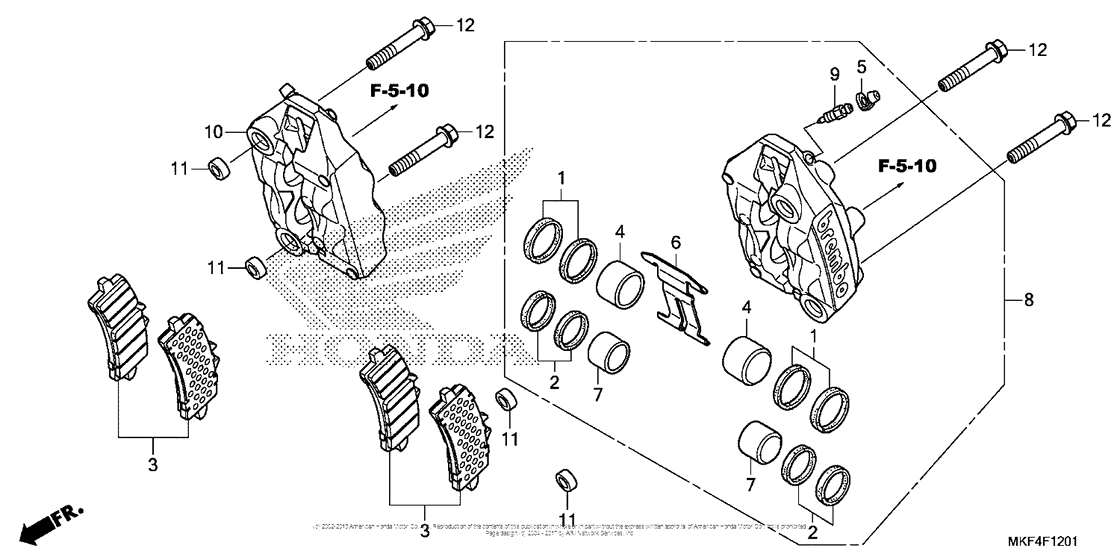

Front Brake Caliper (2) Diagram Honda CBR1000 CBR1000RR (Special Edition) Fireblade
- Year
- 2017
- Model code
- CBR1000S 12AC
- Sales region
- USA
- Frame
- JH2SC777 - HK000001
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06451-MGP-D81 Seal set, piston (32) |
06451-MGP-D81 |
from US $21.08 |
||
|
2
|
2
06452-MGP-D81 Seal set, piston (30) |
06452-MGP-D81 |
from US $21.08 |
||
|
3
|
3
06455-MKF-D61 Pad Set, Fr. |
06455-MKF-D61 |
from US $162.36 |
||
|
4
|
4
45107-MGP-D81 Piston (32) |
45107-MGP-D81 |
from US $62.56 |
||
|
5
|
5
45112-MGP-D81 Cap, bleeder |
45112-MGP-D81 |
from US $14.01 |
||
|
6
|
6
45113-MGP-D81 Spring, pad |
45113-MGP-D81 |
from US $16.86 |
||
|
7
|
7
45117-MGP-D81 Piston (30) |
45117-MGP-D81 |
from US $60.66 |
||
|
8
|
8
45150-MGP-D81 Caliper sub-assy., l. fr. (brembo) |
45150-MGP-D81 |
from US $867.33 |
||
|
9
|
9
45211-MGP-D81 Screw, bleeder |
45211-MGP-D81 |
from US $14.01 |
||
|
10
|
10
45250-MGP-D81 Caliper sub-assy., r. fr. (brembo) |
45250-MGP-D81 |
from US $837.76 |
||
|
11
|
11
51497-MEL-000 Spacer, fr. fork |
51497-MEL-000 |
from US $6.36 |
||
|
12
|
12
90131-MFL-D20 Bolt, flange (10x62) |
90131-MFL-D20 |
from US $15.78 |
