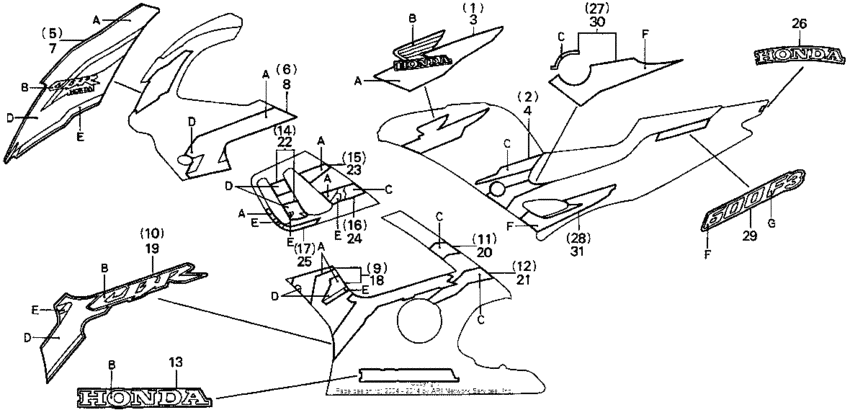

F3 stripe Diagram Honda CBR600 CBR600F3
- Year
- 1997
- Model code
- CBR600F3 AC
- Sales region
- USA
- Frame
- JH2PC251*VM600001 -
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17507-MAL-A00ZA Stripe a, r. (type1) |
17507-MAL-A00ZA |
US $27.13 |
||
|
1
|
1
17507-MAL-A00ZB Stripe a, r. (type2) |
17507-MAL-A00ZB |
US $27.13 |
||
|
2
|
2
17508-MAL-A00ZA Stripe b, r. (type1) |
17508-MAL-A00ZA |
US $9.49 |
||
|
2
|
2
17508-MAL-A00ZB Stripe b, r. (type2) |
17508-MAL-A00ZB |
US $11.08 |
||
|
3
|
3
17517-MAL-A00ZA Stripe a, l. (type1) |
17517-MAL-A00ZA |
US $27.13 |
||
|
3
|
3
17517-MAL-A00ZB Stripe a, l. (type2) |
17517-MAL-A00ZB |
US $22.39 |
||
|
4
|
4
17518-MAL-A00ZA
Stripe b, l. (type1)
|
17518-MAL-A00ZA |
— | ||
|
4
|
4
17518-MAL-A00ZB Stripe b, l. (type2) |
17518-MAL-A00ZB |
US $11.08 |
||
|
5
|
5
64231-MAL-A00ZA Stripe a, r. (type1) |
64231-MAL-A00ZA |
US $28.39 |
||
|
5
|
5
64231-MAL-A00ZB Stripe a, r. (type2) |
64231-MAL-A00ZB |
US $28.39 |
||
|
6
|
6
64232-MAL-A00ZA
Stripe b, r. (type1)
|
64232-MAL-A00ZA |
— | ||
|
6
|
6
64232-MAL-A00ZB Stripe b, r. (type2) |
64232-MAL-A00ZB |
US $49.69 |
||
|
7
|
7
64241-MAL-A00ZA
Stripe a, l. (type1)
|
64241-MAL-A00ZA |
— | ||
|
7
|
7
64241-MAL-A00ZB Stripe a, l. (type2) |
64241-MAL-A00ZB |
US $28.39 |
||
|
8
|
8
64242-MAL-A00ZA Stripe b, l. (type1) |
64242-MAL-A00ZA |
US $49.69 |
||
|
8
|
8
64242-MAL-A00ZB Stripe b, l. (type2) |
64242-MAL-A00ZB |
US $49.69 |
||
|
9
|
9
64306-MAL-A00ZA
Stripe a, r. (type1)
|
64306-MAL-A00ZA |
— | ||
|
9
|
9
64306-MAL-A00ZB Stripe a, r. (type2) |
64306-MAL-A00ZB |
US $23.72 |
||
|
10
|
10
64307-MAL-A00ZA
Stripe b, r. (type1)
|
64307-MAL-A00ZA |
— | ||
|
10
|
10
64307-MAL-A00ZB Stripe b, r. (type2) |
64307-MAL-A00ZB |
US $57.95 |
||
|
11
|
11
64308-MAL-A00ZA Stripe c, r. (type1) |
64308-MAL-A00ZA |
US $8.74 |
||
|
11
|
11
64308-MAL-A00ZB Stripe c, r. (type2) |
64308-MAL-A00ZB |
US $6.38 |
||
|
12
|
12
64309-MAL-A00ZA
Stripe d, r. (type1)
|
64309-MAL-A00ZA |
— | ||
|
12
|
12
64309-MAL-A00ZB Stripe d, r. (type2) |
64309-MAL-A00ZB |
US $14.94 |
||
|
13
|
13
64311-MAL-A00ZA
Mark, cowl (type1)
|
64311-MAL-A00ZA |
— | ||
|
13
|
13
64311-MAL-A00ZB Mark, cowl (type2) |
64311-MAL-A00ZB |
US $19.99 |
||
|
14
|
14
64313-MAL-A00ZA
Stripe a, r. (type1)
|
64313-MAL-A00ZA |
— | ||
|
14
|
14
64313-MAL-A00ZB Stripe a, r. (type2) |
64313-MAL-A00ZB |
US $19.43 |
||
|
15
|
15
64314-MAL-A00ZA Stripe b, r. (type1) |
64314-MAL-A00ZA |
US $9.49 |
||
|
15
|
15
64314-MAL-A00ZB Stripe b, r. (type2) |
64314-MAL-A00ZB |
US $9.49 |
||
|
16
|
16
64315-MAL-A00ZA
Stripe c, r. (type1)
|
64315-MAL-A00ZA |
— | ||
|
16
|
16
64315-MAL-A00ZB Stripe c, r. (type2) |
64315-MAL-A00ZB |
US $14.67 |
||
|
17
|
17
64316-MAL-A00ZA Stripe d, r. (type1) |
64316-MAL-A00ZA |
US $13.75 |
||
|
17
|
17
64316-MAL-A00ZB Stripe d, r. (type2) |
64316-MAL-A00ZB |
US $13.75 |
||
|
18
|
18
64356-MAL-A00ZA Stripe a, l. (type1) |
64356-MAL-A00ZA |
US $23.72 |
||
|
18
|
18
64356-MAL-A00ZB Stripe a, l. (type2) |
64356-MAL-A00ZB |
US $23.72 |
||
|
19
|
19
64357-MAL-A00ZA
Stripe b, l. (type1)
|
64357-MAL-A00ZA |
— | ||
|
19
|
19
64357-MAL-A00ZB Stripe b, l. (type2) |
64357-MAL-A00ZB |
US $57.95 |
||
|
20
|
20
64358-MAL-A00ZA
Stripe c, l. (type1)
|
64358-MAL-A00ZA |
— | ||
|
20
|
20
64358-MAL-A00ZB Stripe c, l. (type2) |
64358-MAL-A00ZB |
US $6.38 |
||
|
21
|
21
64359-MAL-A00ZA
Stripe d, l. (type1)
|
64359-MAL-A00ZA |
— | ||
|
21
|
21
64359-MAL-A00ZB
Stripe d, l. (type2)
|
64359-MAL-A00ZB |
— | ||
|
22
|
22
64363-MAL-A00ZA
Stripe a, l. (type1)
|
64363-MAL-A00ZA |
— | ||
|
22
|
22
64363-MAL-A00ZB Stripe a, l. (type2) |
64363-MAL-A00ZB |
US $19.43 |
||
|
23
|
23
64364-MAL-A00ZA
Stripe b, l. (type1)
|
64364-MAL-A00ZA |
— | ||
|
23
|
23
64364-MAL-A00ZB Stripe b, l. (type2) |
64364-MAL-A00ZB |
US $9.49 |
||
|
24
|
24
64365-MAL-A00ZA
Stripe c, l. (type1)
|
64365-MAL-A00ZA |
— | ||
|
24
|
24
64365-MAL-A00ZB Stripe c, l. (type2) |
64365-MAL-A00ZB |
US $14.67 |
||
|
25
|
25
64366-MAL-A00ZA
Stripe d, l. (type1)
|
64366-MAL-A00ZA |
— | ||
|
25
|
25
64366-MAL-A00ZB Stripe d, l. (type2) |
64366-MAL-A00ZB |
US $13.75 |
||
|
26
|
26
77215-MAL-A00 Mark, seat cowl |
77215-MAL-A00 |
from US $8.16 |
||
|
27
|
27
83613-MAL-A00ZA Stripe a, r. (type1) |
83613-MAL-A00ZA |
US $14.28 |
||
|
27
|
27
83613-MAL-A00ZB
Stripe a, r. (type2)
|
83613-MAL-A00ZB |
— | ||
|
28
|
28
83615-MAL-A00ZA
Stripe b, r. (type1)
|
83615-MAL-A00ZA |
— | ||
|
28
|
28
83615-MAL-A00ZB
Stripe b, r. (type2)
|
83615-MAL-A00ZB |
— | ||
|
29
|
29
83616-MAL-A00ZA
Mark (type1)
|
83616-MAL-A00ZA |
— | ||
|
29
|
29
83616-MAL-A00ZB Mark (type2) |
83616-MAL-A00ZB |
US $14.13 |
||
|
30
|
30
83713-MAL-A00ZA Stripe a, l. (type1) |
83713-MAL-A00ZA |
US $12.87 |
||
|
30
|
30
83713-MAL-A00ZB Stripe a, l. (type2) |
83713-MAL-A00ZB |
US $12.87 |
||
|
31
|
31
83715-MAL-A00ZA
Stripe b, l. (type1)
|
83715-MAL-A00ZA |
— | ||
|
31
|
31
83715-MAL-A00ZB
Stripe b, l. (type2)
|
83715-MAL-A00ZB |
— |
