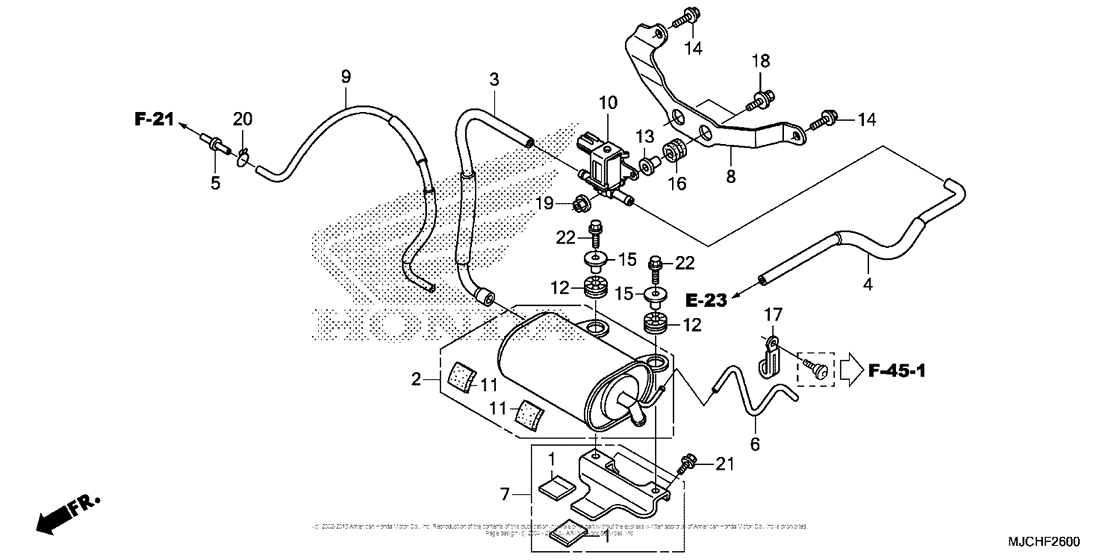

Evap Canister (1) Diagram Honda CBR600 CBR600RR
- Year
- 2017
- Model code
- CBR600RR 7AC
- Sales region
- USA
- Frame
- JH2PC40H - HK300001
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17209-GN2-300 Cushion,air/c cas |
17209-GN2-300 |
from US $2.15 |
||
|
2
|
2
17410-MFJ-L00 Evaporative emission |
17410-MFJ-L00 |
from US $171.79 |
||
|
3
|
3
17412-MFJ-L00 Tube |
17412-MFJ-L00 |
US $12.99 |
||
|
4
|
4
17413-MFJ-L00 Tube (pcs-5way) |
17413-MFJ-L00 |
US $12.73 |
||
|
5
|
5
17414-PC6-660 JointTWO WAY (3.5) |
17414-PC6-660 |
from US $2.45 |
||
|
6
|
6
17434-MFJ-L00 Tube, canister drain |
17434-MFJ-L00 |
US $7.38 |
||
|
7
|
7
17440-MFJ-L00 Stay, canister |
17440-MFJ-L00 |
US $19.41 |
||
|
8
|
8
17445-MFJ-L00 Stay, pcs |
17445-MFJ-L00 |
US $19.41 |
||
|
9
|
9
17556-MFJ-L10 Tube (canister-2way) |
17556-MFJ-L10 |
US $17.58 |
||
|
10
|
10
36162-PLC-003 ValvePURGE CONTROL SOLENOID |
36162-PLC-003 |
US $68.87 |
||
|
11
|
11
50328-HP1-600 Rubber, battery |
50328-HP1-600 |
from US $1.85 |
||
|
12
|
12
77208-KW7-900 Rubber b |
77208-KW7-900 |
from US $2.74 |
||
|
13
|
13
84706-163-670 Collar, taillight mounting |
84706-163-670 |
from US $4 |
||
|
14
|
14
90123-MEN-730 Bolt (8x18) |
90123-MEN-730 |
from US $2.22 |
||
|
15
|
15
90501-MA3-720 Collar (6.2x13) |
90501-MA3-720 |
from US $4.24 |
||
|
16
|
16
90852-898-000 Rubber, control box |
90852-898-000 |
from US $2.52 |
||
|
17
|
17
91410-679-000 Clip, 2x60 |
91410-679-000 |
from US $4.22 |
||
|
18
|
18
93404-0502008 Bolt-washer (5x20) |
93404-0502008 |
from US $0.52 |
||
|
19
|
19
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
20
|
20
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
21
|
21
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
|
22
|
22
96001-0602207 Bolt, flange (6x22) |
96001-0602207 |
from US $0.81 |
