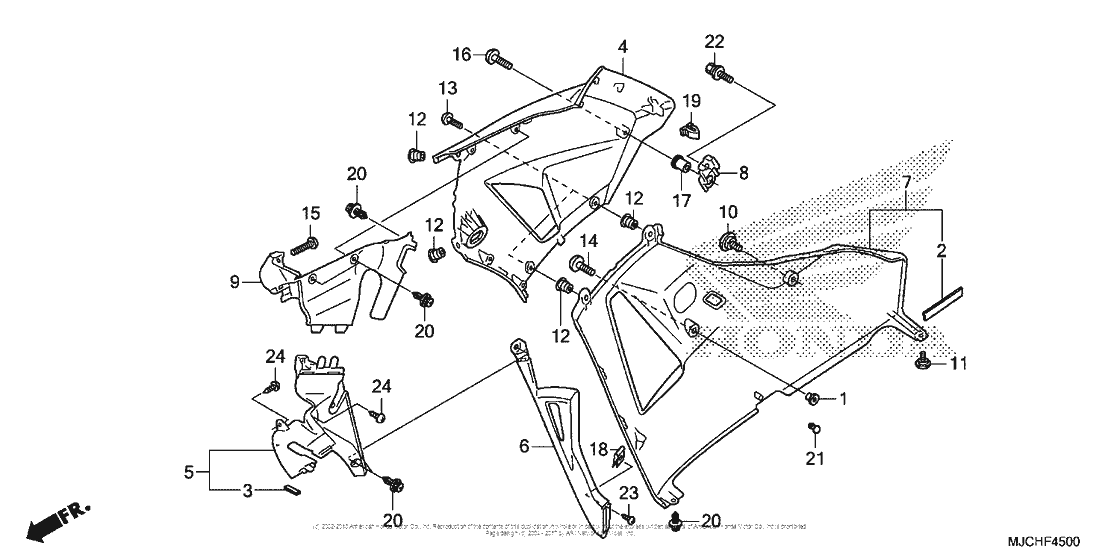

Middle Cowl + Lower Cowl (R.) Diagram Honda CBR600 CBR600RR
- Year
- 2017
- Model code
- CBR600RR 7AC
- Sales region
- USA
- Frame
- JH2PC40H - HK300001
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33712-GC2-000 Collar a, taillight |
33712-GC2-000 |
from US $3.11 |
||
|
2
|
2
50226-MY5-610 Rubber, seat |
50226-MY5-610 |
from US $2.74 |
||
|
3
|
3
50283-KSC-300 Rubber, battery |
50283-KSC-300 |
from US $1.41 |
||
|
4
|
4
64300-MJC-N21ZA COWL SET, R. (TYPE1) |
64300-MJC-N21ZA |
from US $560.38 |
||
|
5
|
5
64325-MJC-A00 Cowl, r. middle |
64325-MJC-A00 |
from US $18.36 |
||
|
6
|
6
64331-MJC-A01 Cowl, r. (lower) |
64331-MJC-A01 |
from US $11.72 |
||
|
7
|
7
64405-MJC-N21ZA COWL, R. (TYPE1) |
64405-MJC-N21ZA |
from US $588.56 |
||
|
8
|
8
64512-MJC-A00 Stay, middle cowl |
64512-MJC-A00 |
from US $5.14 |
||
|
9
|
9
64581-MJC-A00 Cowl, r. (upper) |
64581-MJC-A00 |
from US $8.29 |
||
|
10
|
10
90106-KY2-701 Screw, pan (6x11) |
90106-KY2-701 |
from US $2.52 |
||
|
11
|
11
90106-MBY-000 Screw (5x12) |
90106-MBY-000 |
from US $1.40 |
||
|
12
|
12
90111-KW3-003 Nut (5mm) |
90111-KW3-003 |
from US $1.75 |
||
|
13
|
13
90113-MCJ-000 Screw, pan (5x15) |
90113-MCJ-000 |
from US $1.33 |
||
|
14
|
14
90118-MR1-000 Screw, pan (6x14) |
90118-MR1-000 |
from US $2.07 |
||
|
15
|
15
90120-MEL-000 Screw, pan (5x20) |
90120-MEL-000 |
from US $2.29 |
||
|
16
|
16
90120-MFJ-A40 Screw, pan (5x25) |
90120-MFJ-A40 |
from US $2.22 |
||
|
17
|
17
90156-GZ4-670 Nut, well (5mm) |
90156-GZ4-670 |
from US $1.80 |
||
|
18
|
18
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
19
|
19
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $1.60 |
||
|
20
|
20
90683-GR1-003 Clip, body cover |
90683-GR1-003 |
from US $2.29 |
||
|
21
|
21
90801-SB0-000 PlugCHANGE REINFORCEMENT |
90801-SB0-000 |
from US $1.25 |
||
|
22
|
22
93401-0601400 Bolt-washer (6x14) |
93401-0601400 |
from US $0.52 |
||
|
23
|
23
93903-24280 ScrewTAPPING, 4X10 |
93903-24280 |
from US $0.37 |
||
|
24
|
24
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
